Tremolo arm diameter: 6mm

Note: If the high E string breaks frequently, it is often caused by a small burr or sharp edge at the bridge contact point. Lightly sanding and polishing that area can smooth the surface and help prevent string breakage. If you’re not comfortable doing this, we recommend having a professional guitar tech assist.

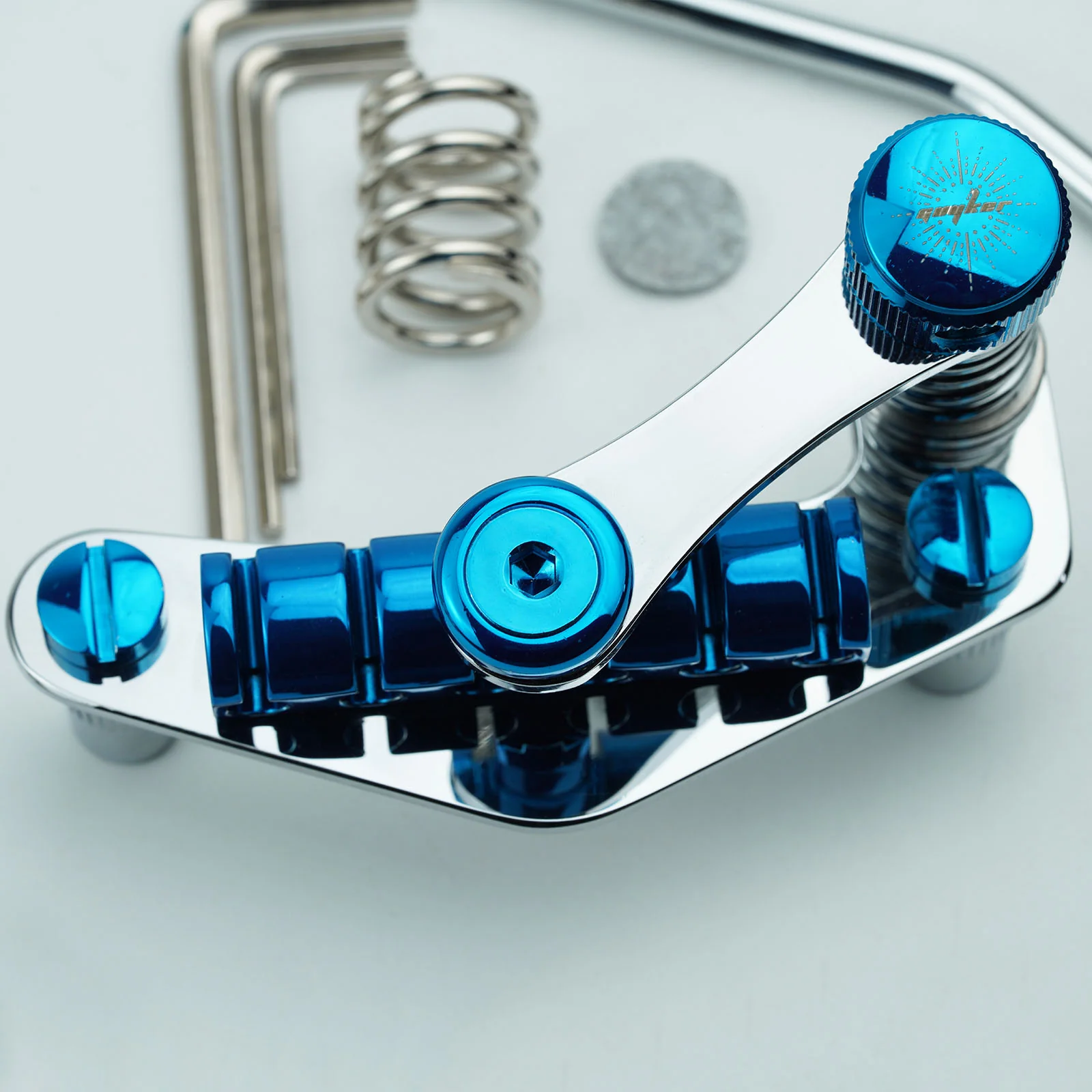

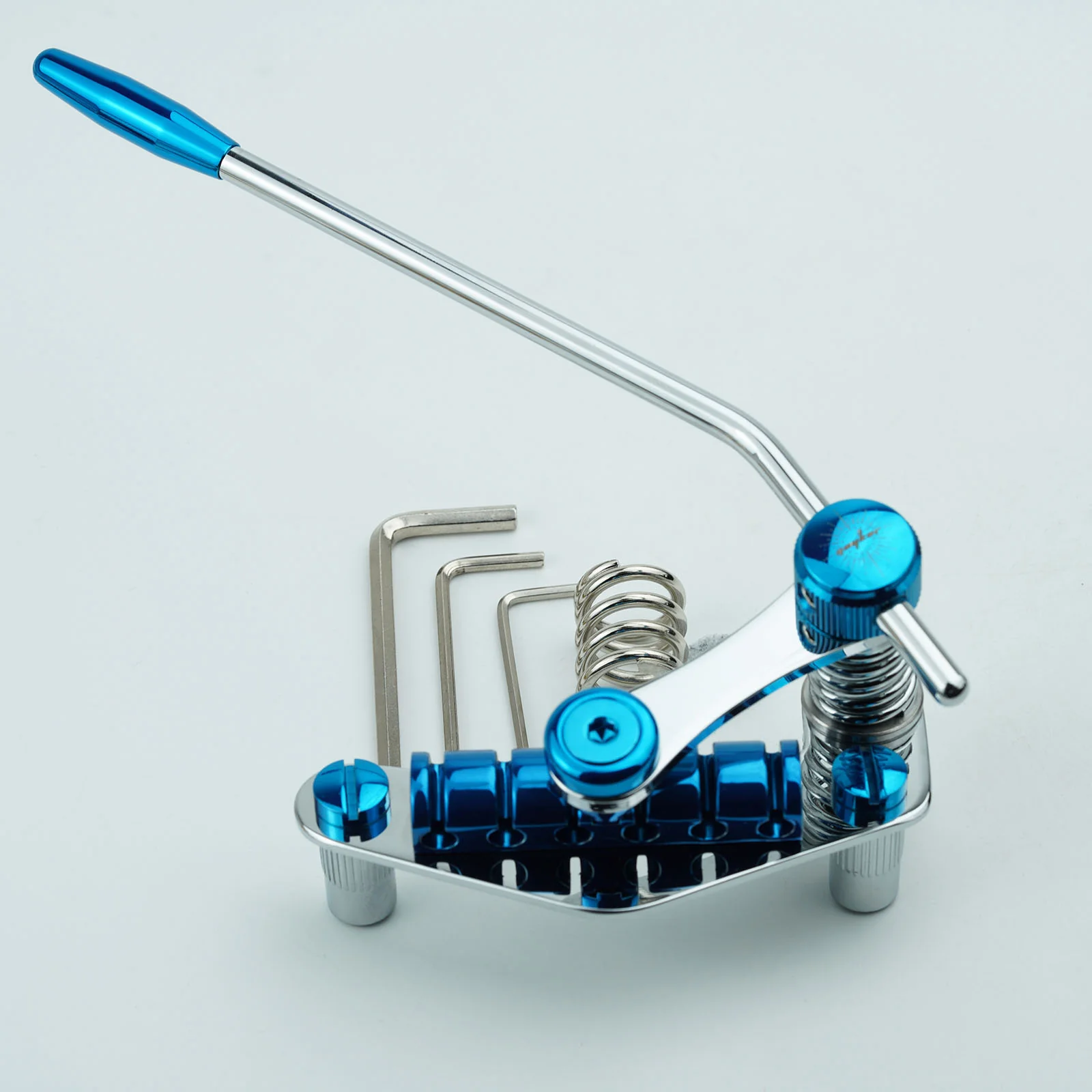

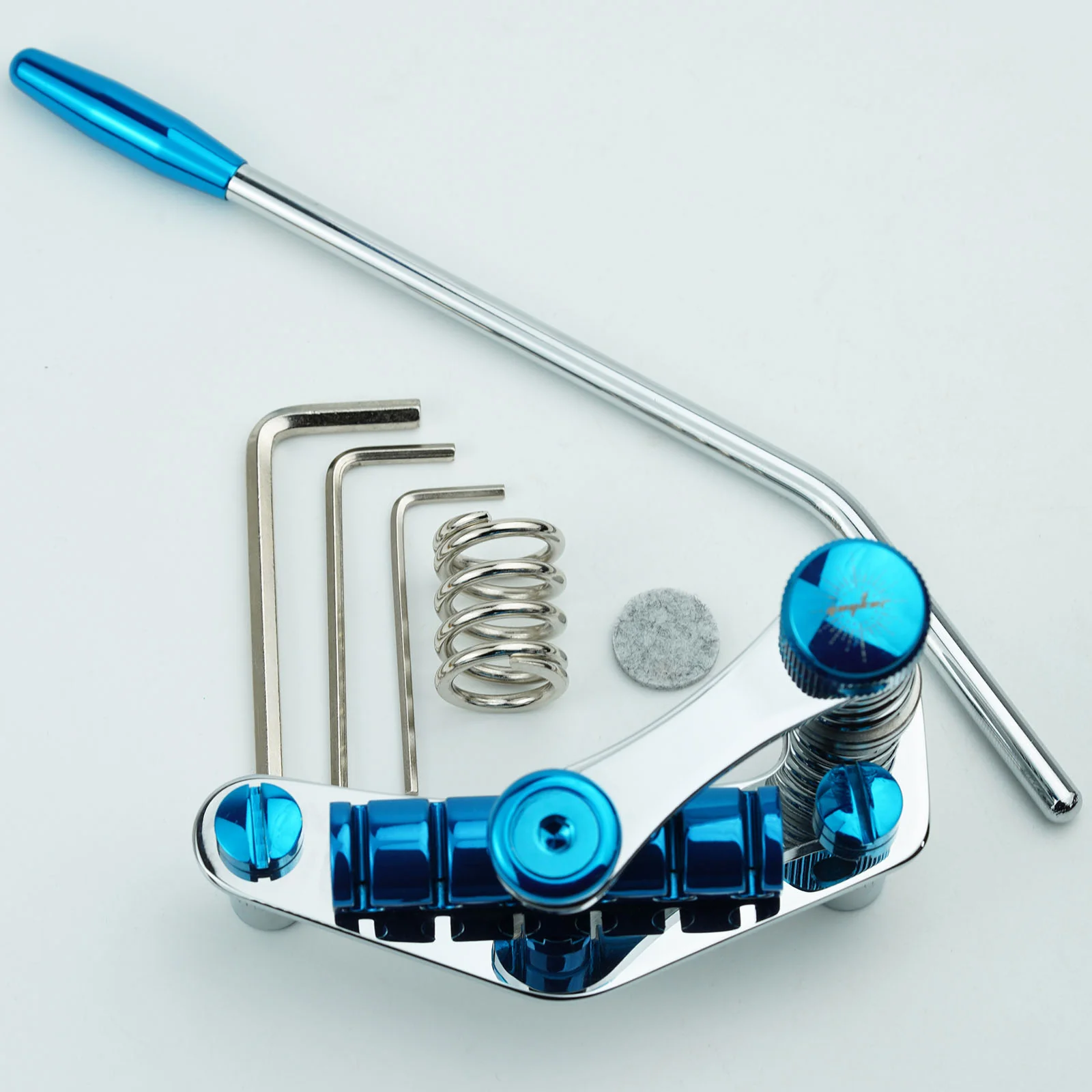

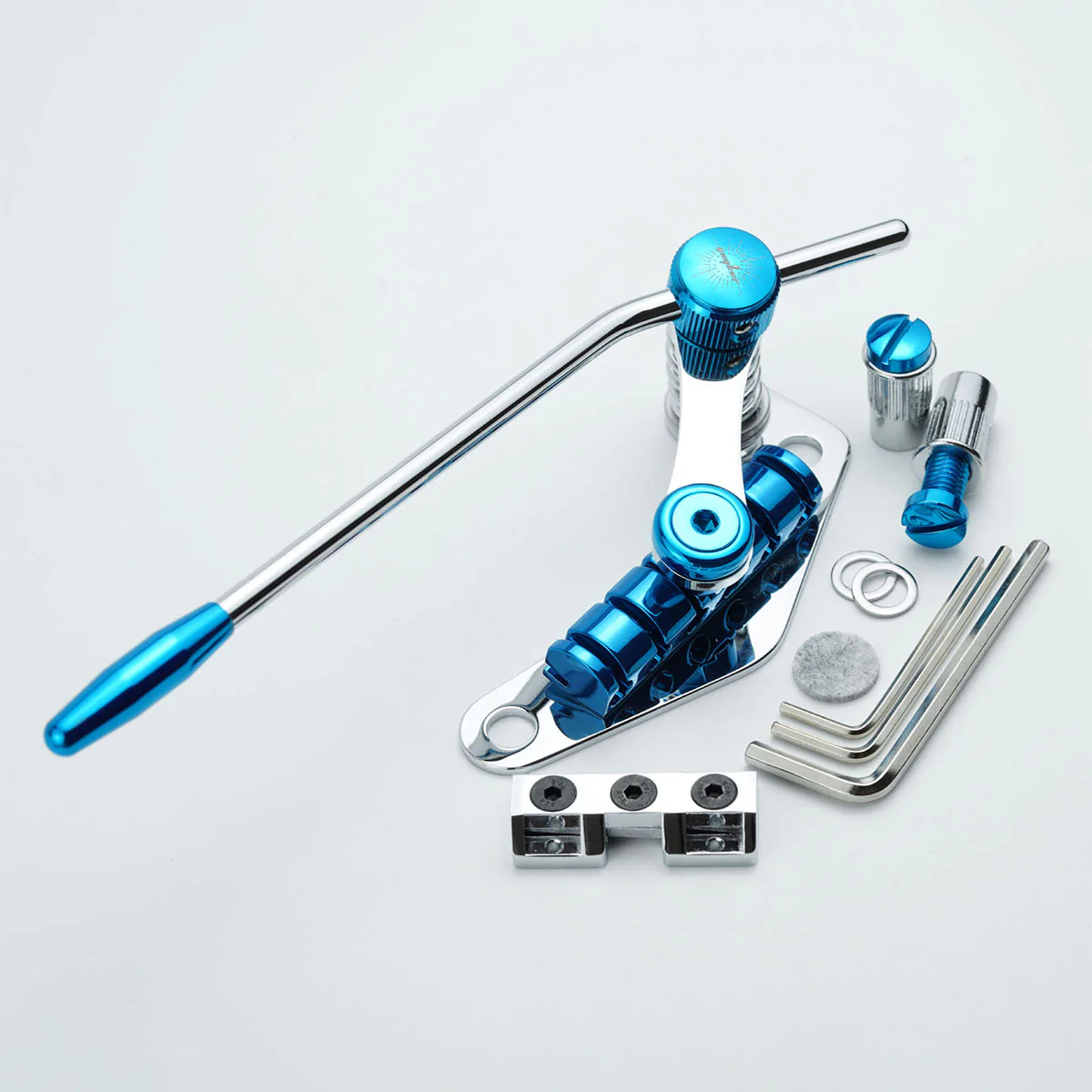

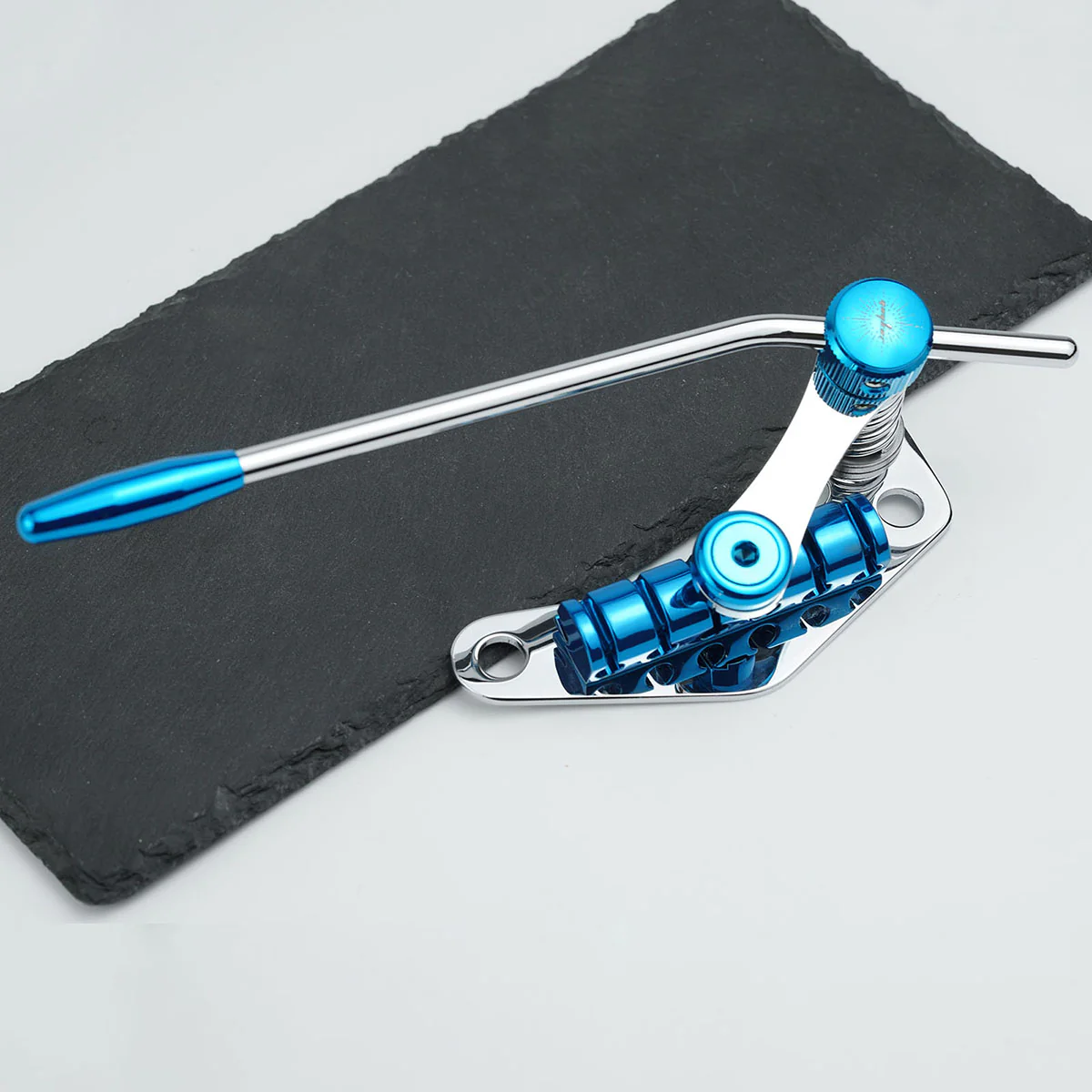

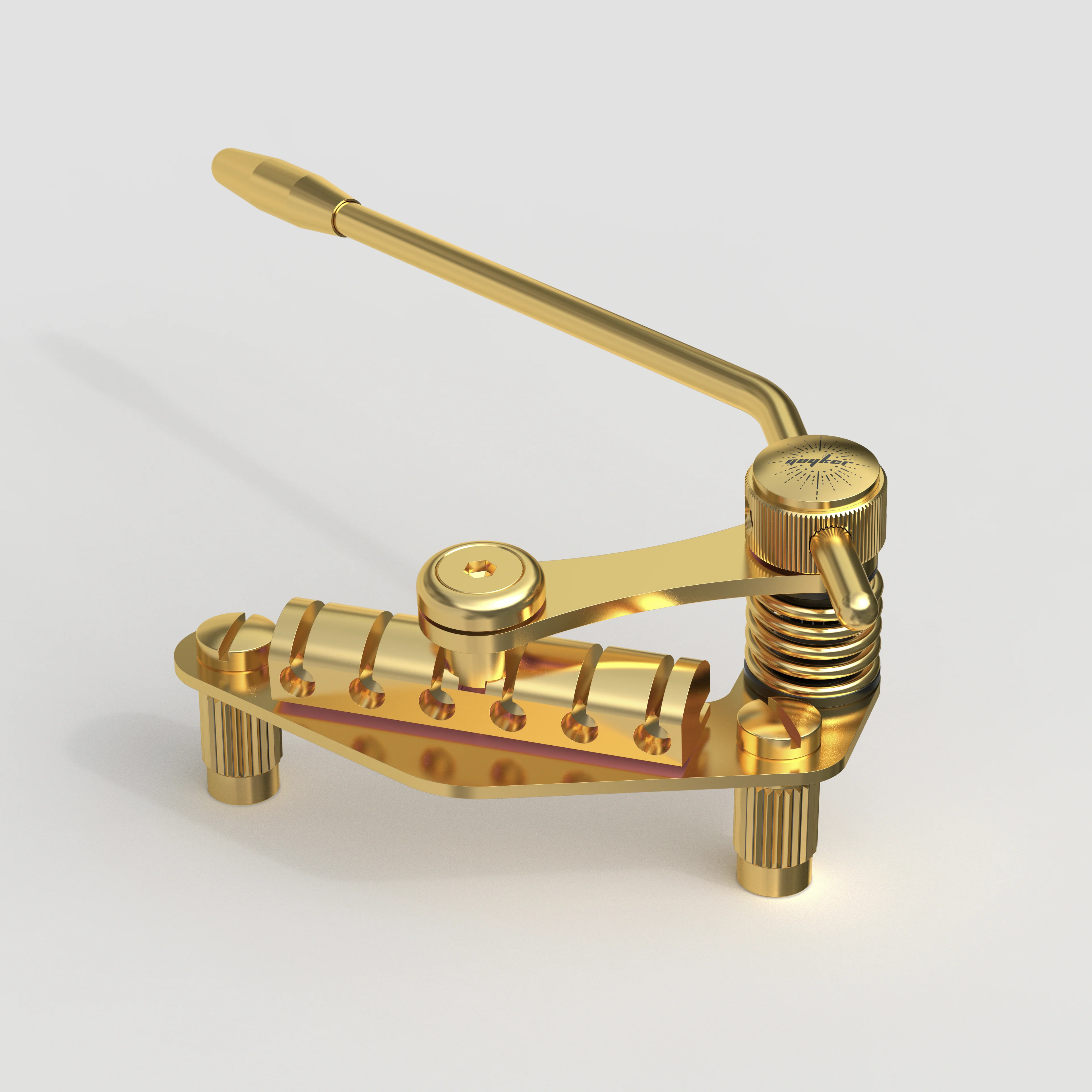

GM85 Tremolo Tailpiece – The Upgraded TM85

The GM85 Tremolo Tailpiece is the next evolution of the popular TM85, featuring significant upgrades in design, durability, and finish options. With feedback from professional musicians, we've refined this tailpiece to provide a superior playing experience while maintaining compatibility with a wide range of electric guitars.

WHAT’S NEW IN THE GM85?

• Enhanced Durability: Improved production processes to address string breakage issues from the TM85 model.
• Expanded Color Options: In addition to the classic Chrome, Black, and Gold finishes, we now offer bold Dopamine color options for a unique, standout look.
• Optimized Design: Upgraded components for smoother tremolo action and better reliability during performance.

FEATURES:

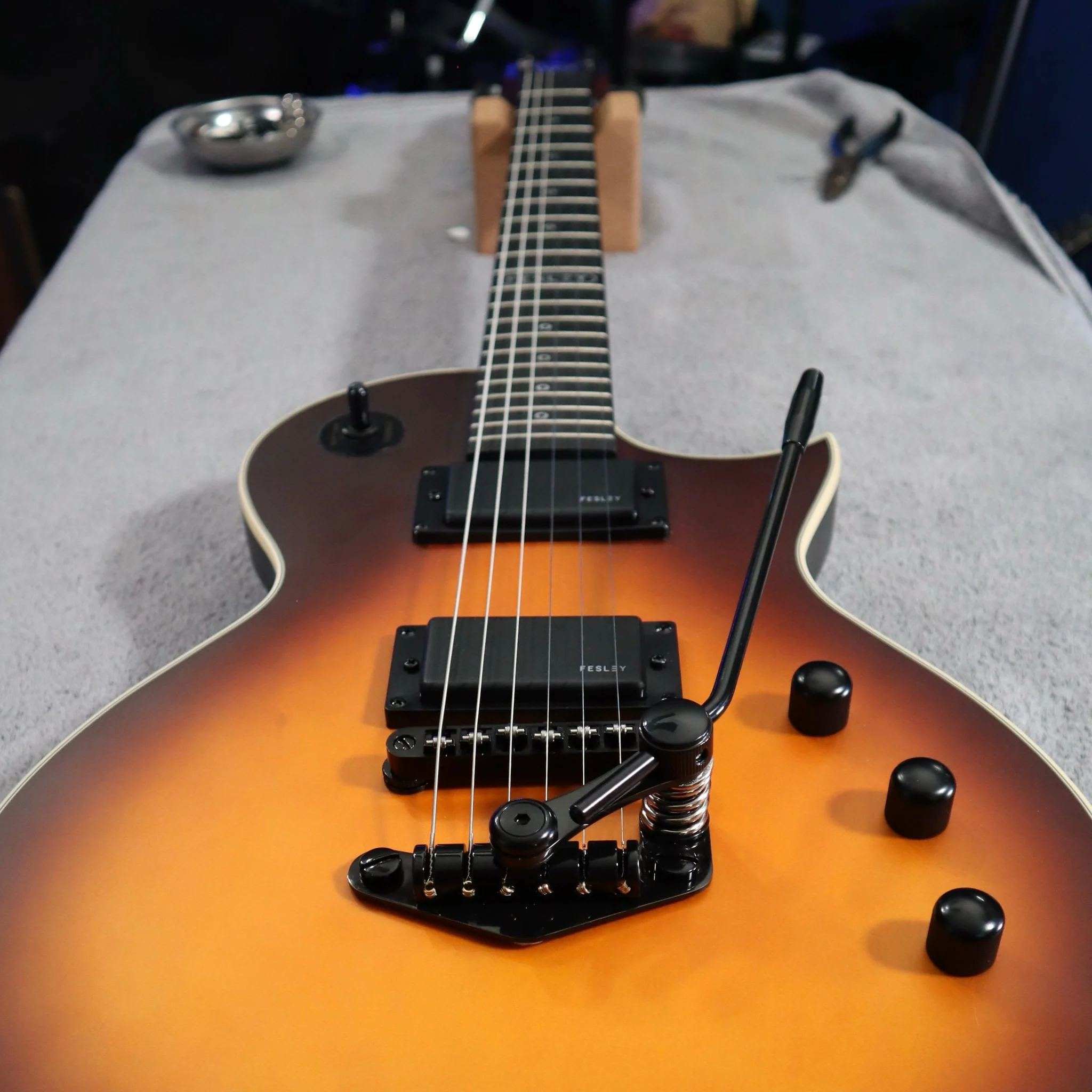

• Wide Compatibility: Perfect for electric guitars with tune-o-matic setups, including LP, SG, Gibsons, and Epiphones.
• Durable Construction: Made with high-quality alloys to ensure long-lasting performance and stability.

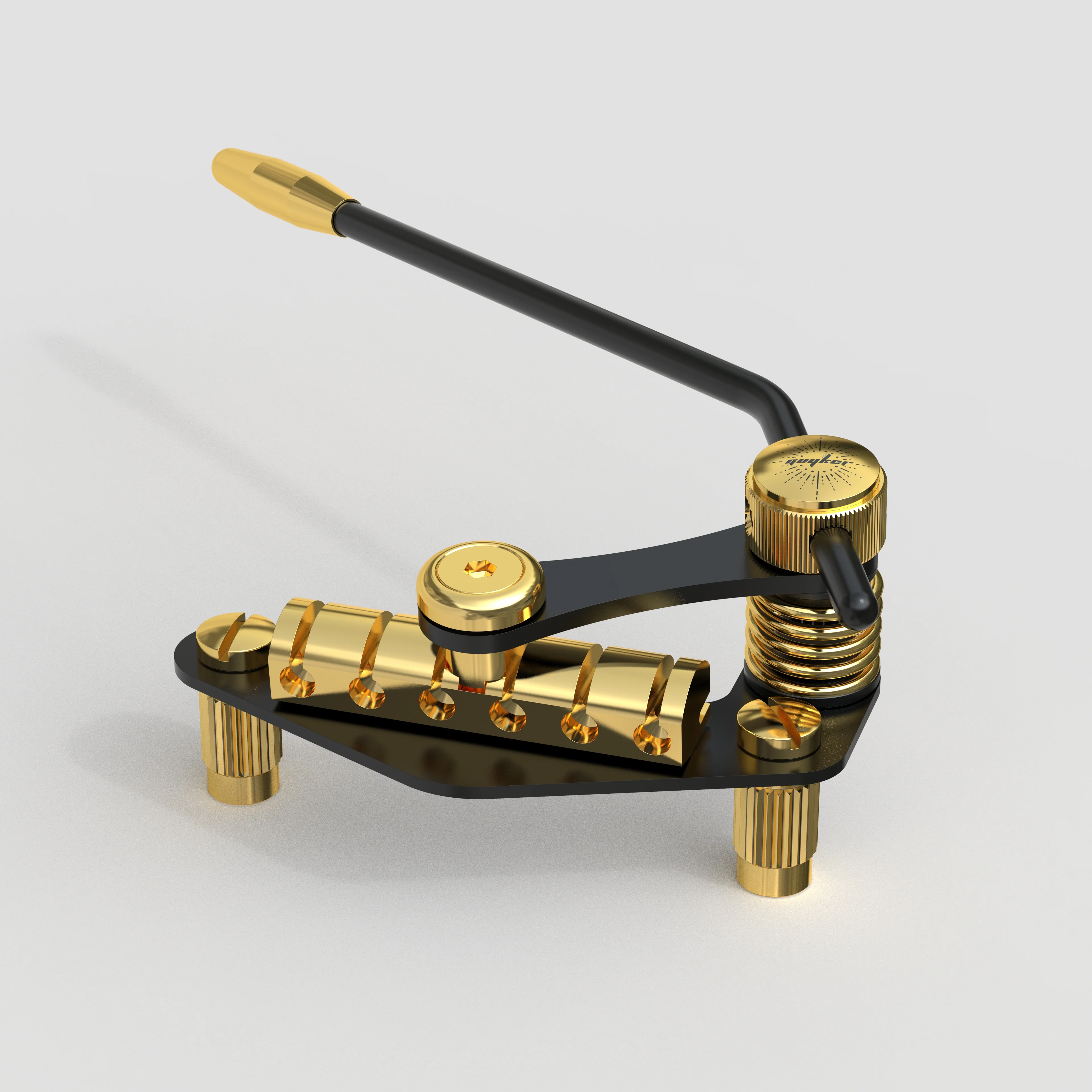

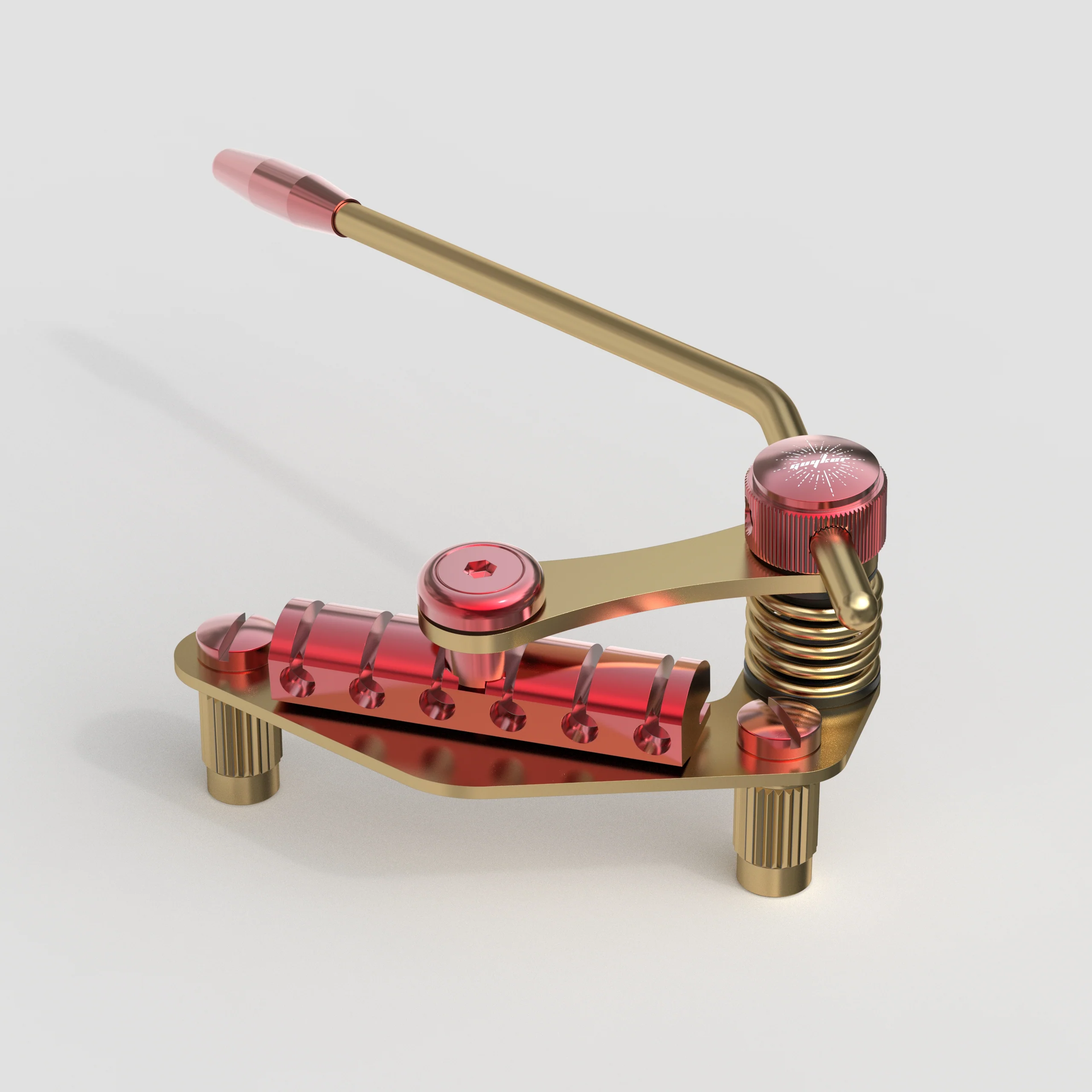

• Customizable Finishes: Choose from Chrome, Black, Gold, or Dopamine colors to personalize your instrument.
• Precise Fit: Designed with accurate dimensions for seamless integration (refer to size diagram).

DIMENSIONS:

• Overall Length: 101.44mm
• Saddle Spacing: 51.70mm (10.5/10.8mm interval)
• Stop Bar Placement: 82mm width
• Post Size: M8.0, Ø13.0mm, height of 32.7mm
• See attached diagram for full specifications.

INSTALLATION GUIDELINES:

• Measure 38–44.5mm from the bridge to find the correct stop bar position.
• Ensure the tailpiece is centered with the guitar neck for best results.

WHY CHOOSE THE GM85?
As the upgraded version of the TM85, the GM85 delivers exceptional reliability, functionality, and style. Whether you prefer classic finishes or vibrant Dopamine colors, this tailpiece is designed to elevate both the look and performance of your guitar.

Experience the difference with the all-new GM85 Tremolo Tailpiece—crafted for musicians who demand the best!

-----------------------------------------------------------------------------------
