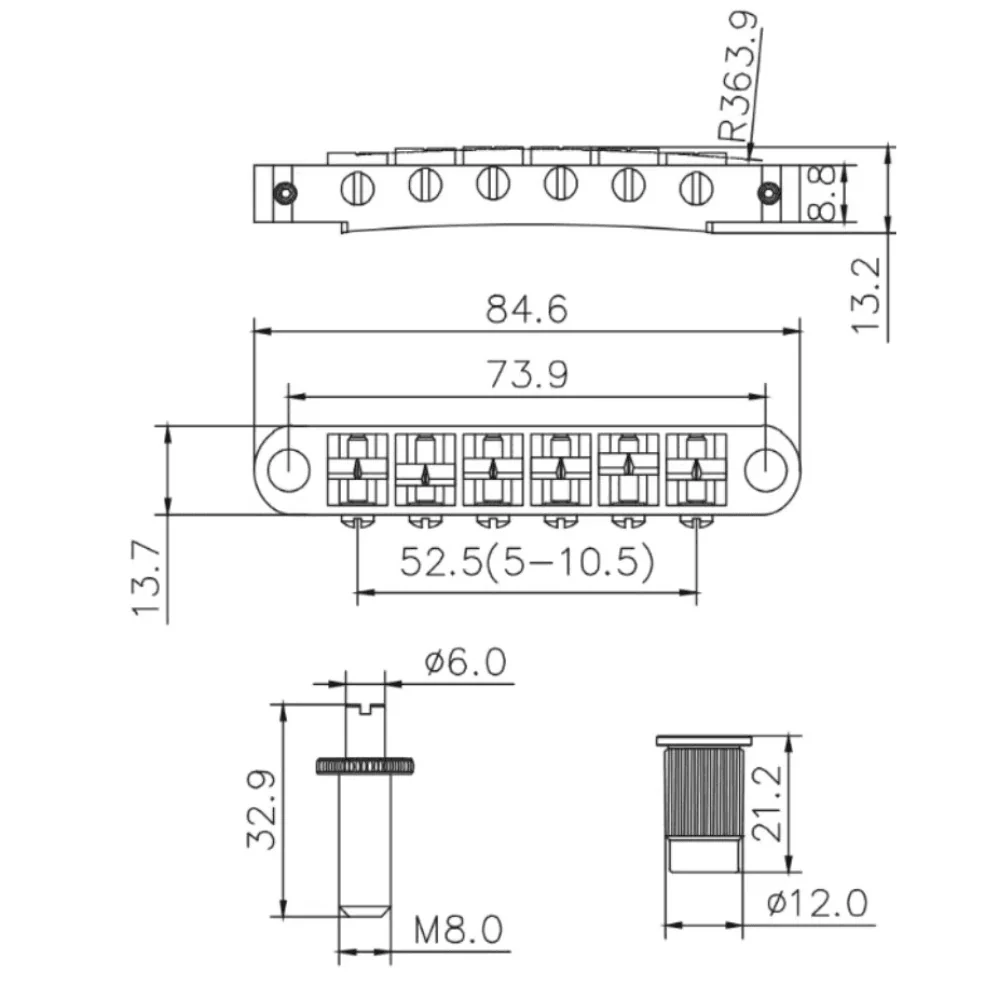

DIMENSIONS

• Saddle bridge: 88.9 mm x 13.7 mm(3.5 inch x 0.54 inch)
• Bridge Post Spacing: Approx. 73.9 mm (2.91 inches)
• Bridge String Spacing: Approx. 10.5mm (0.41 inch)
• Weight per pc for all colors : 123g

Material

SIZE PHOTO

----------------------------------------------------------------------------------

WHAT’S INCLUDED ?

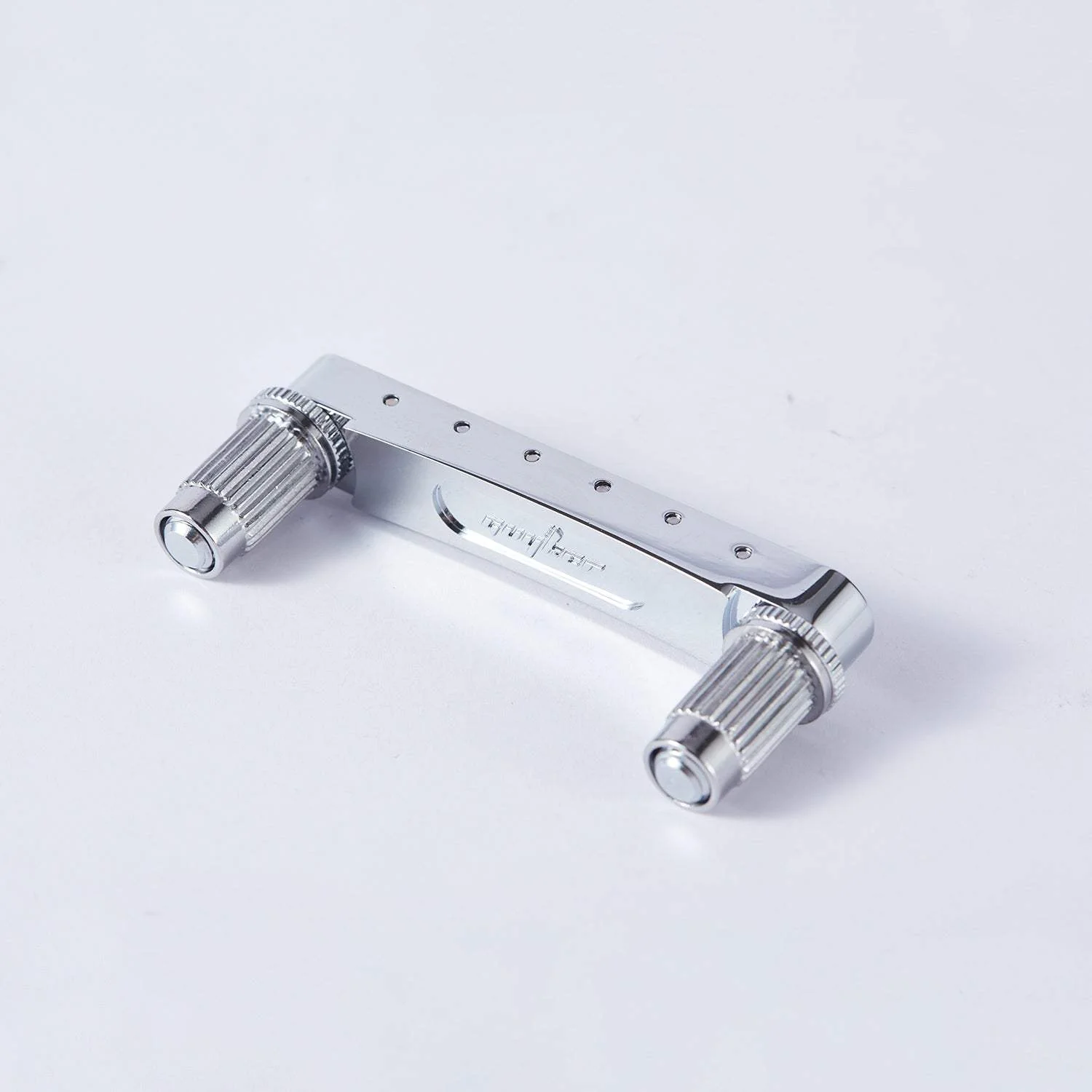

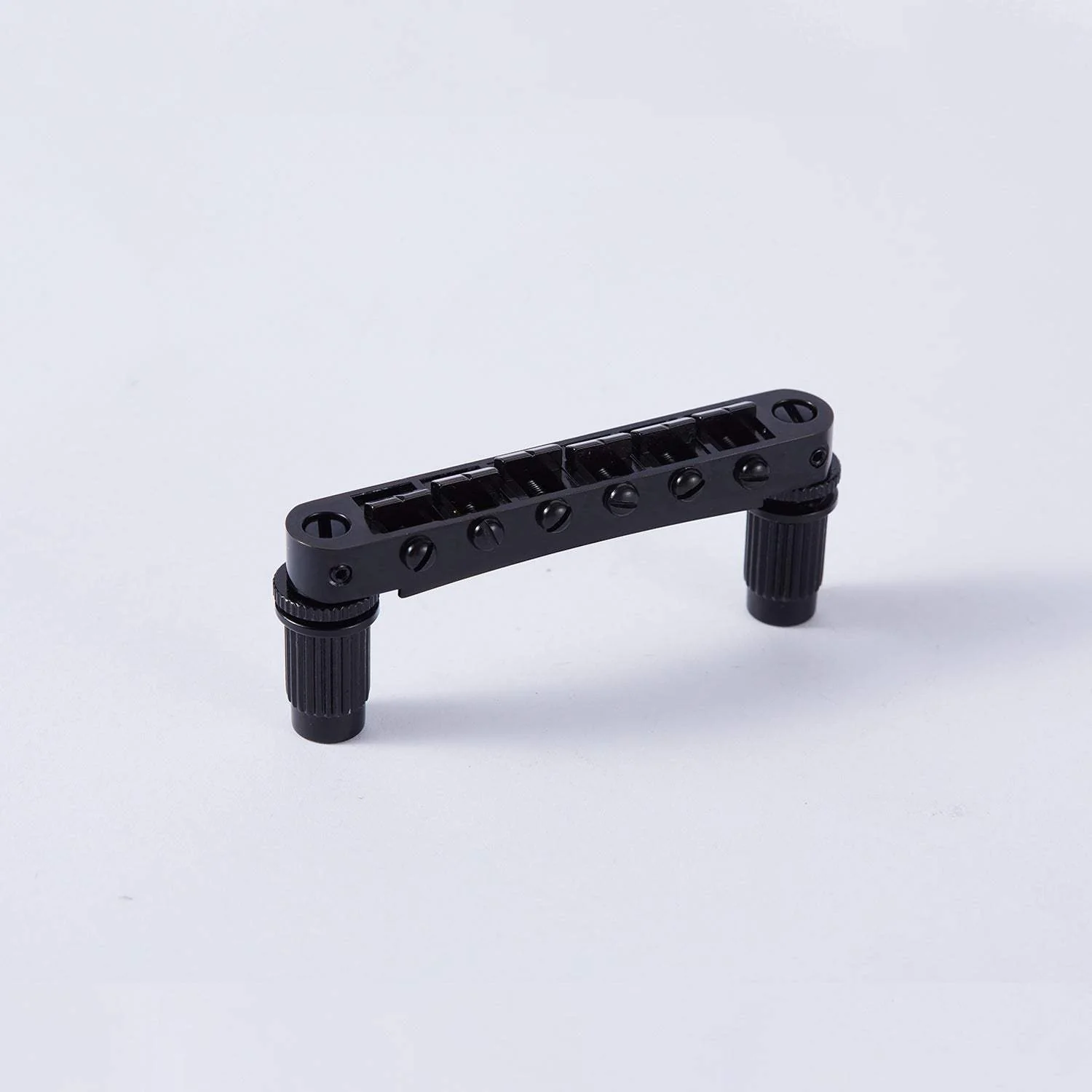

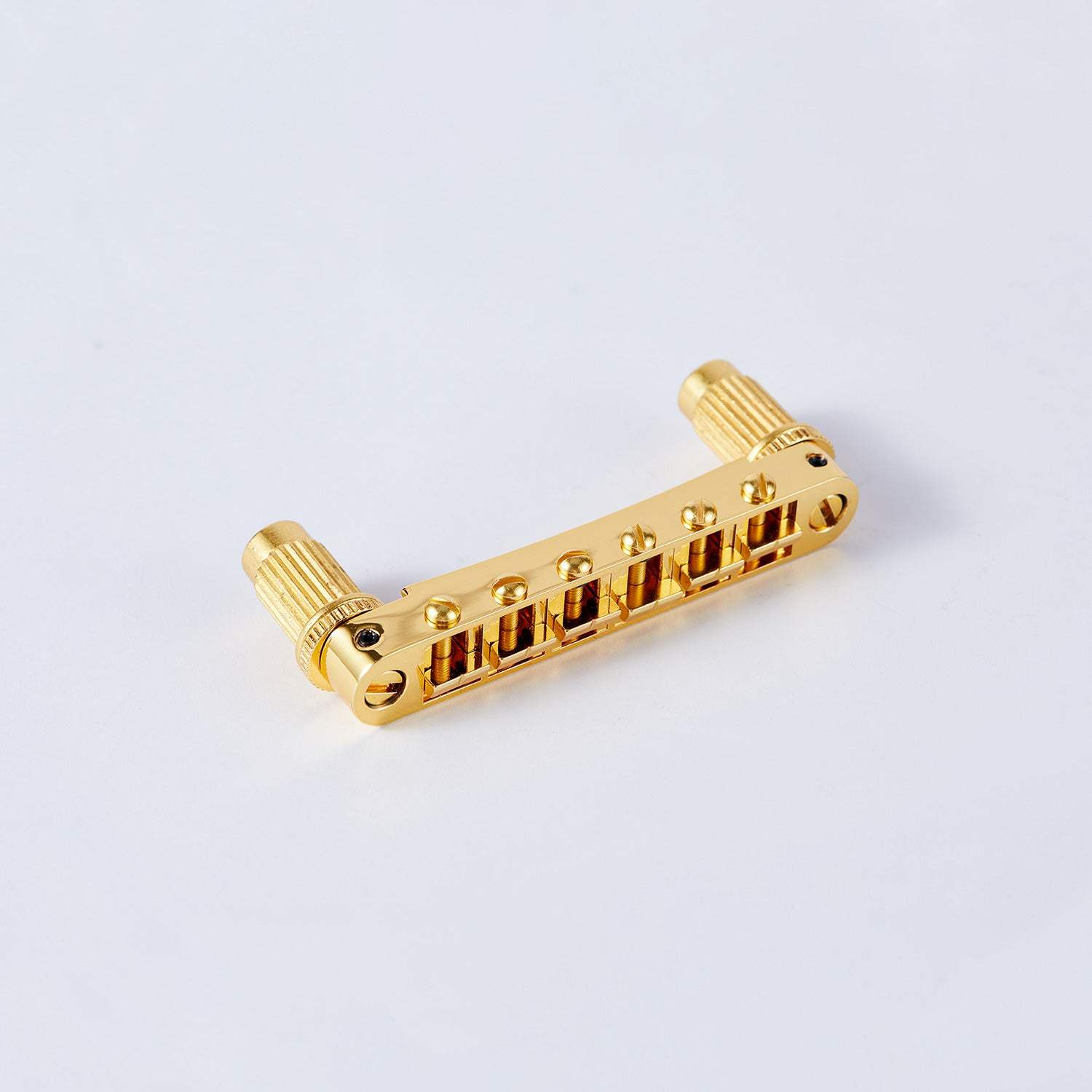

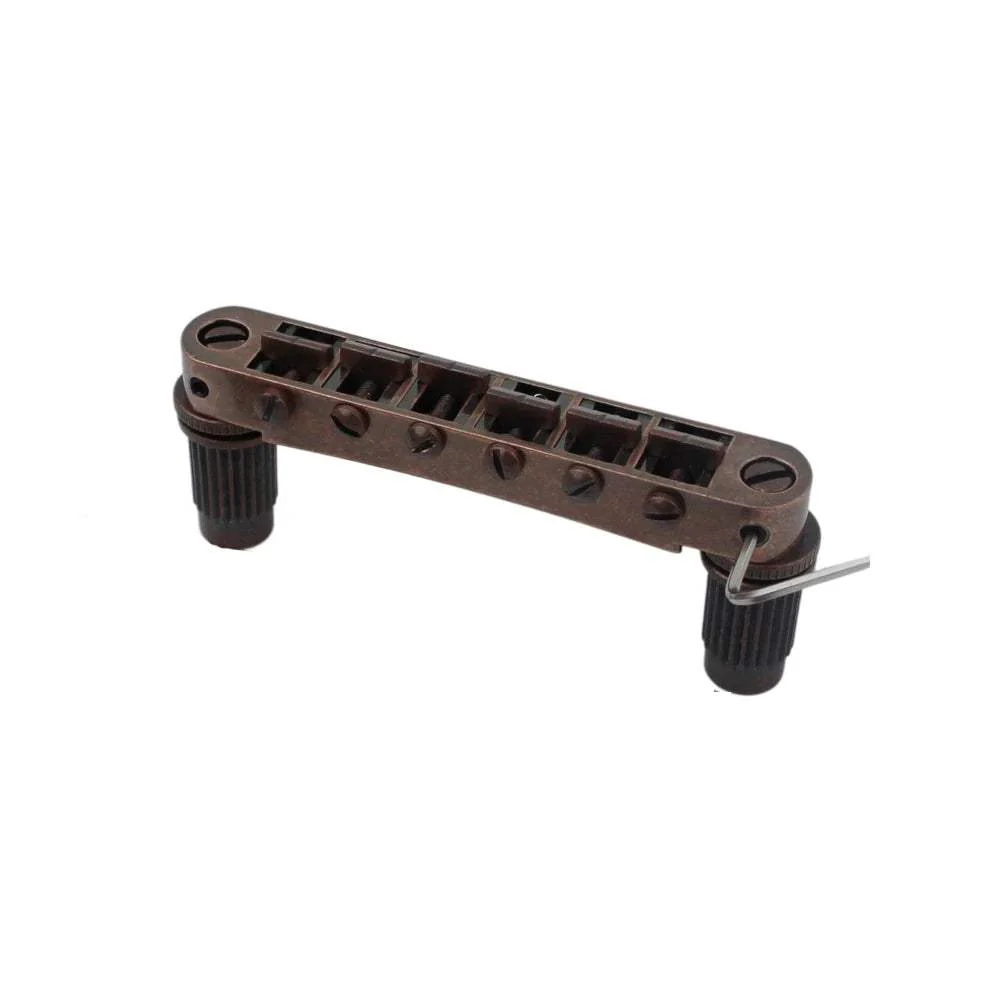

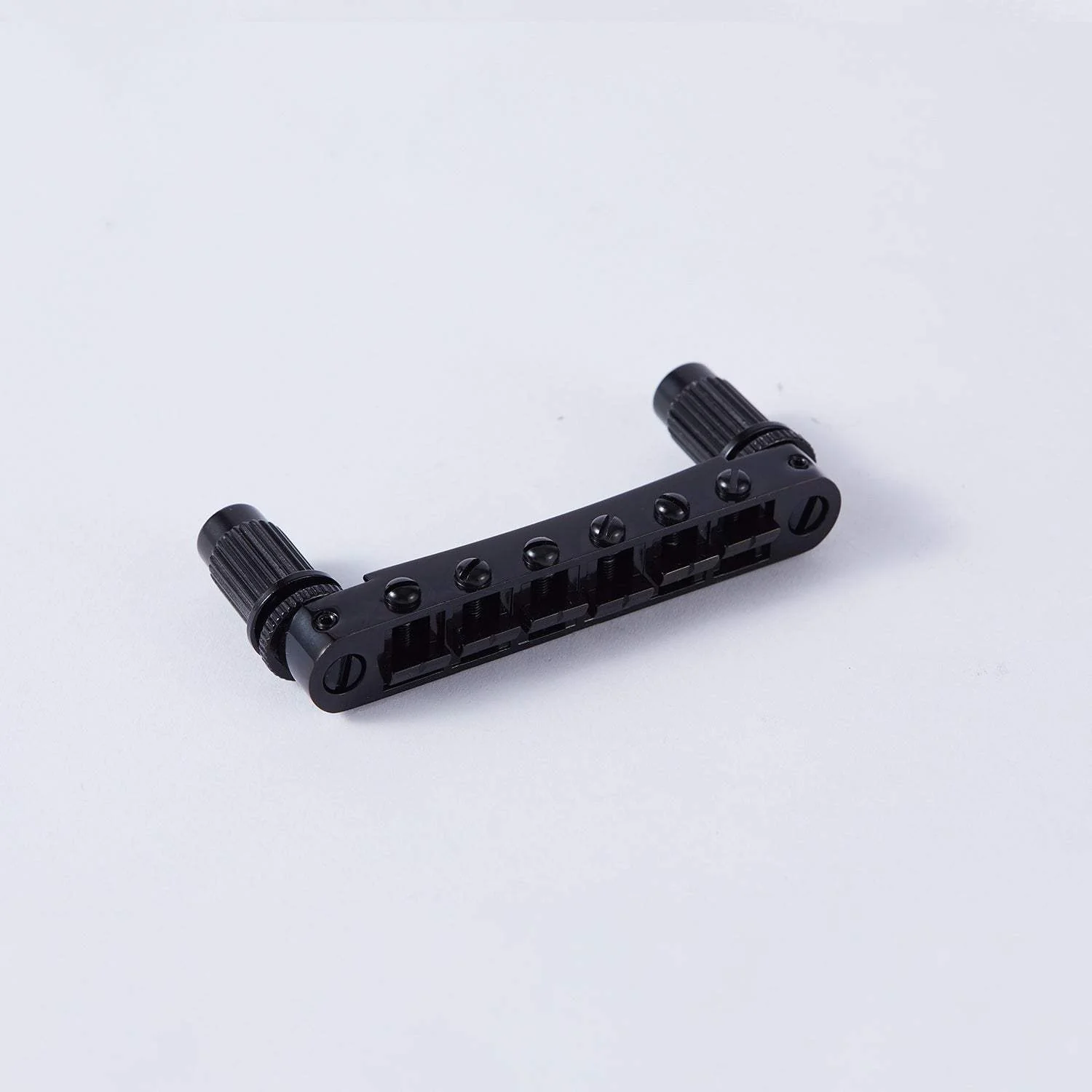

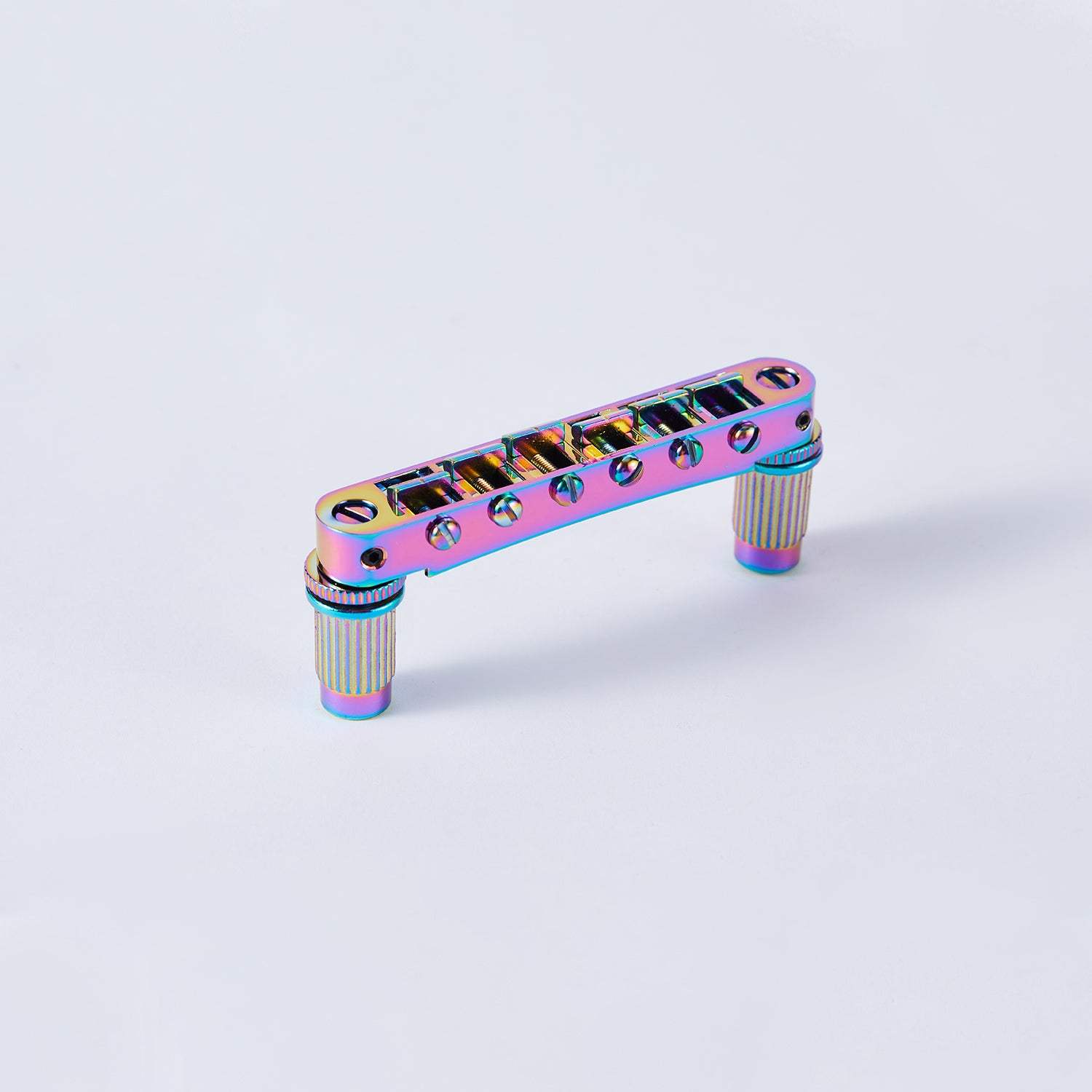

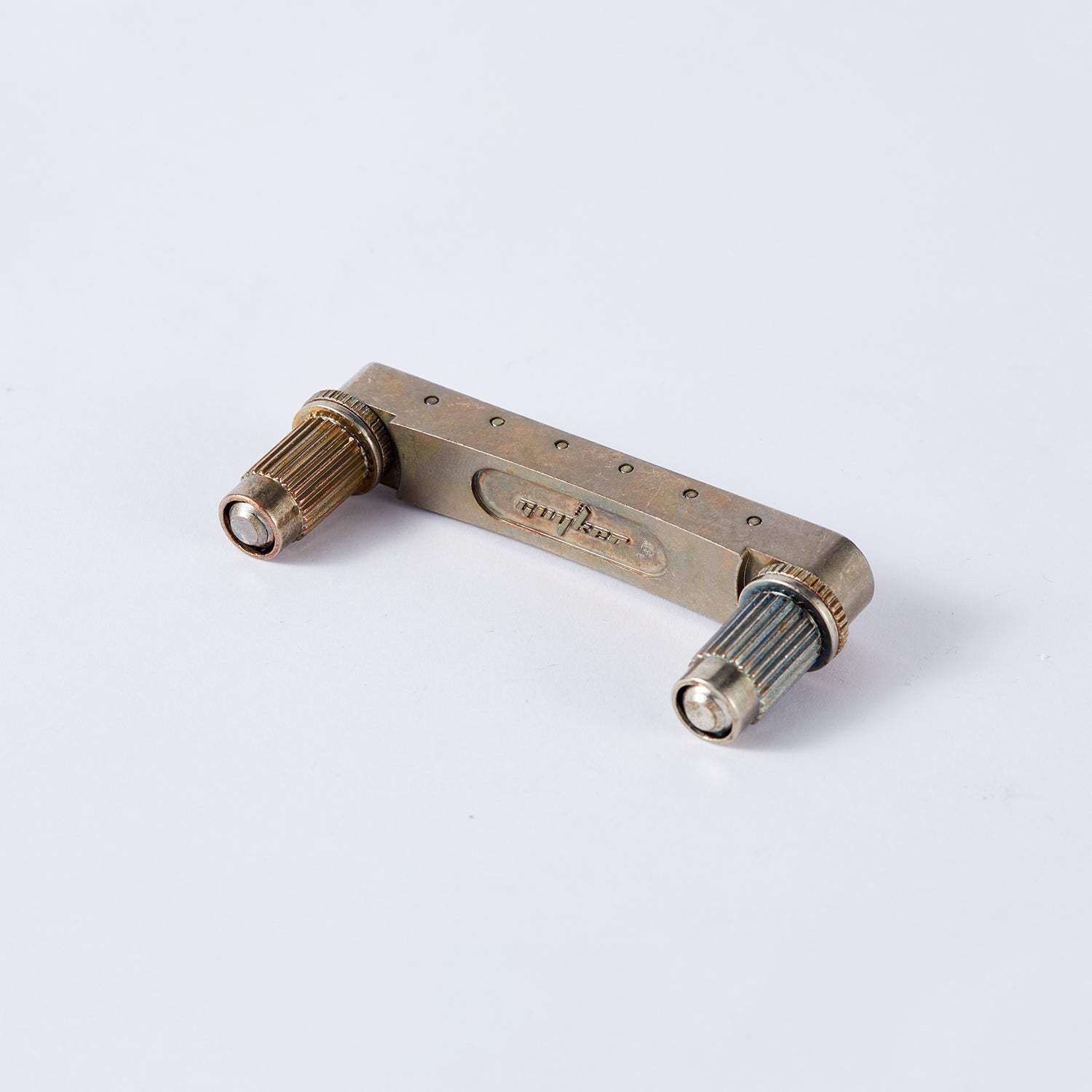

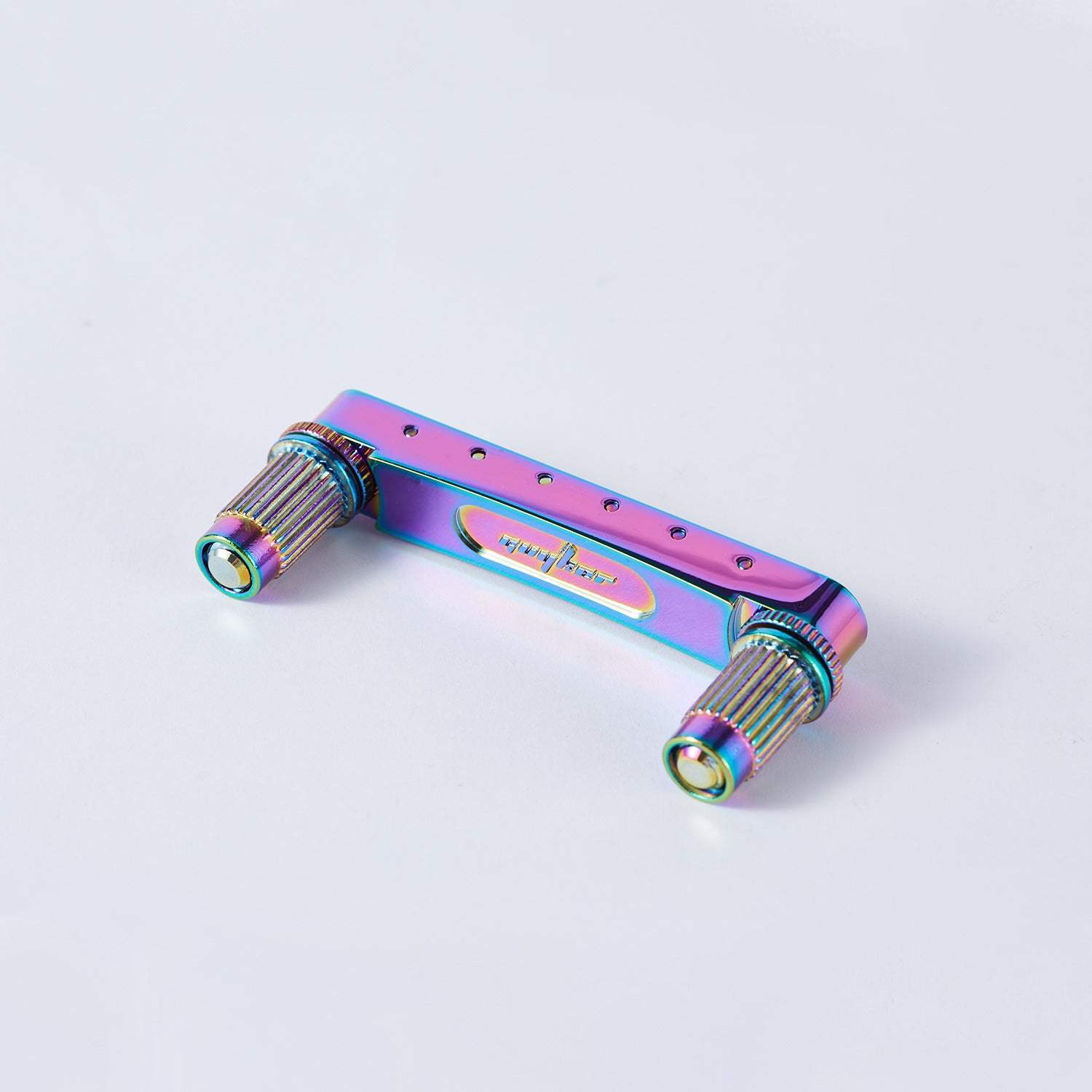

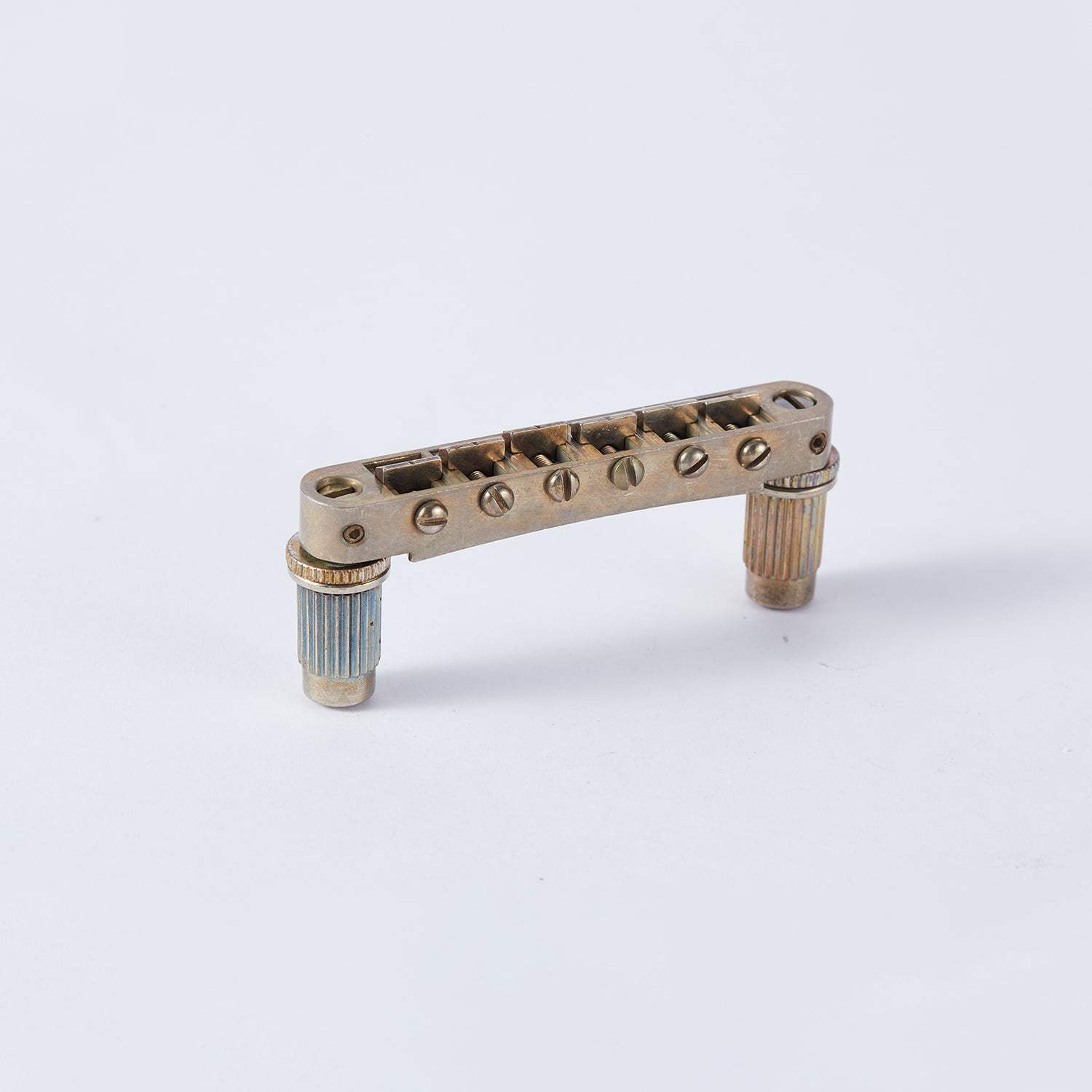

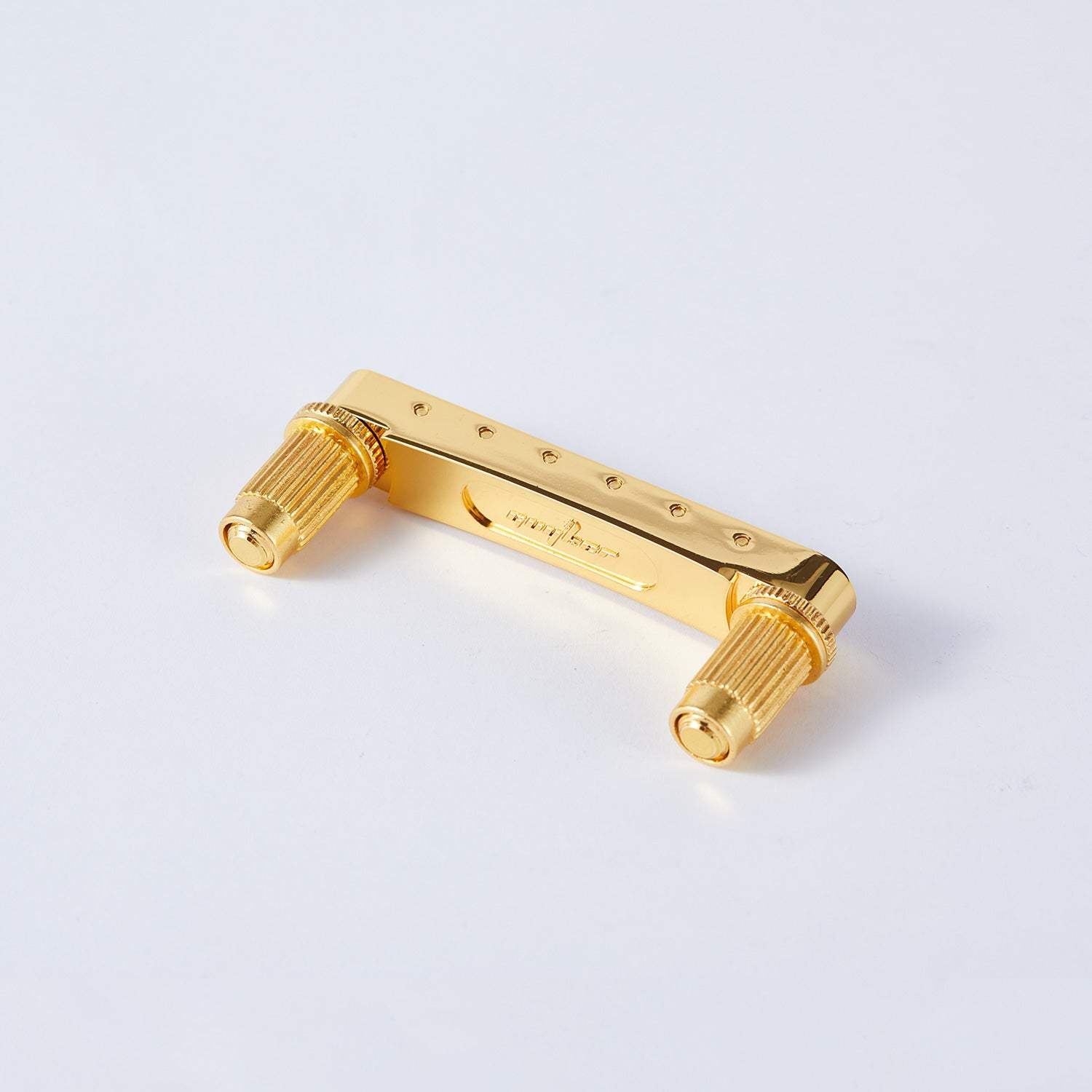

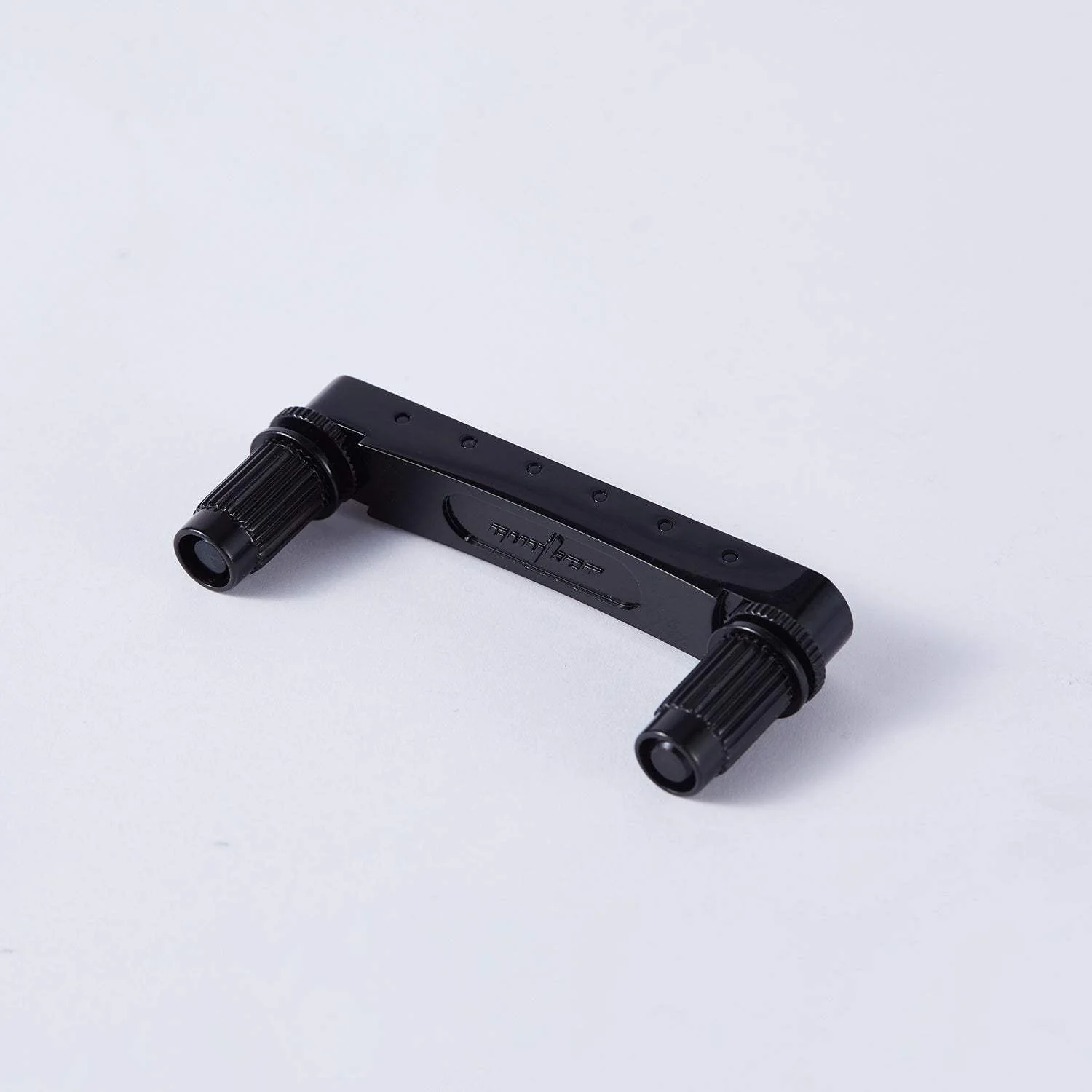

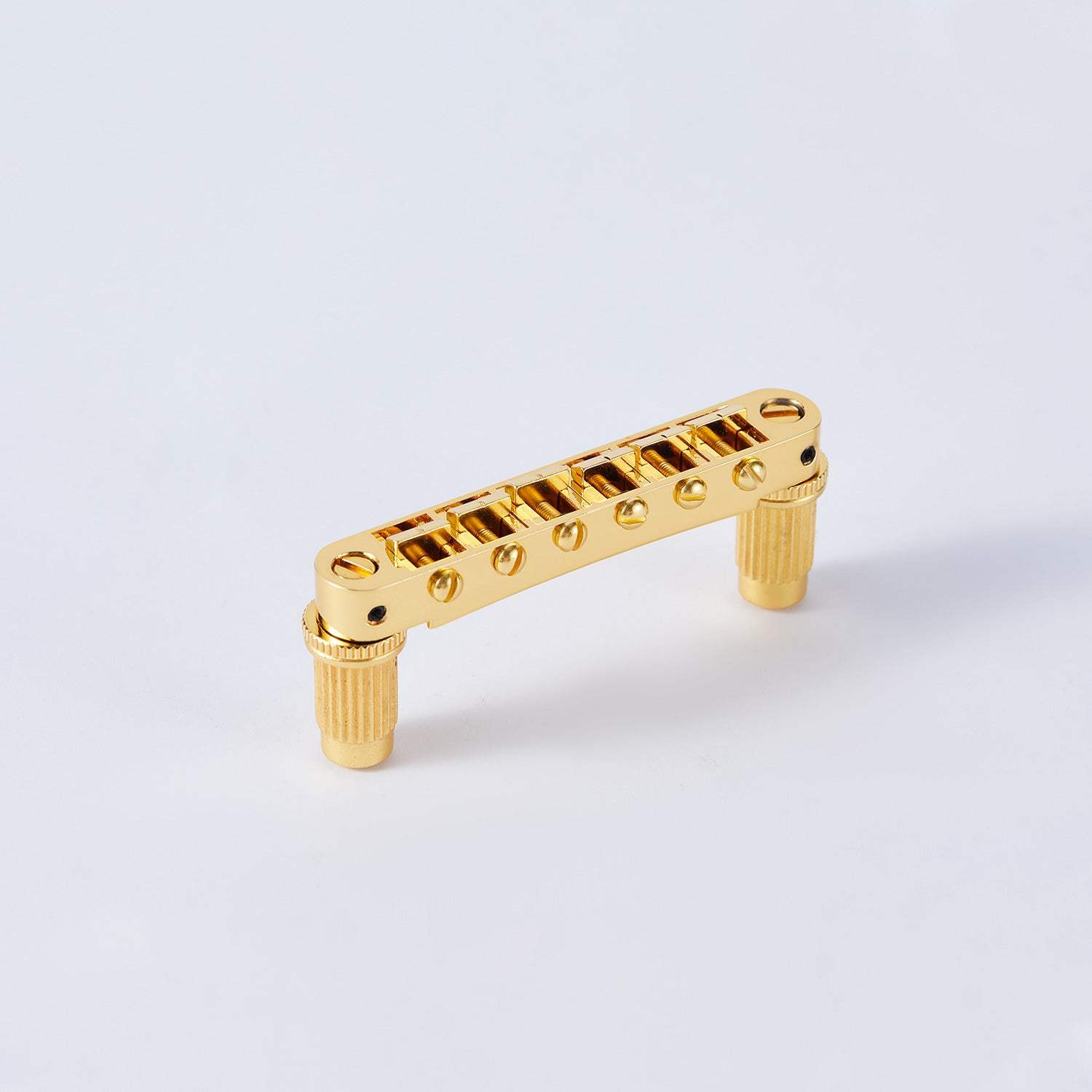

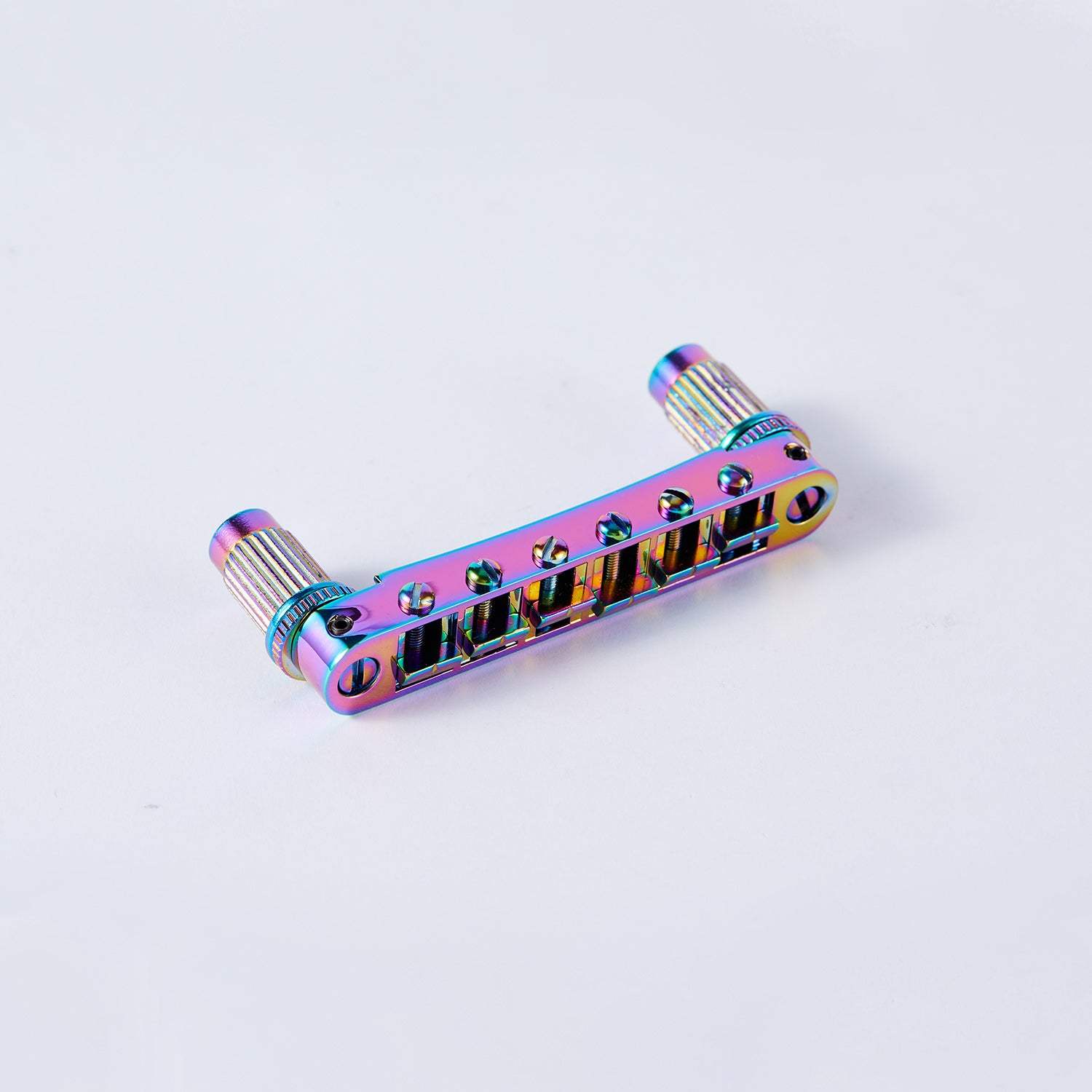

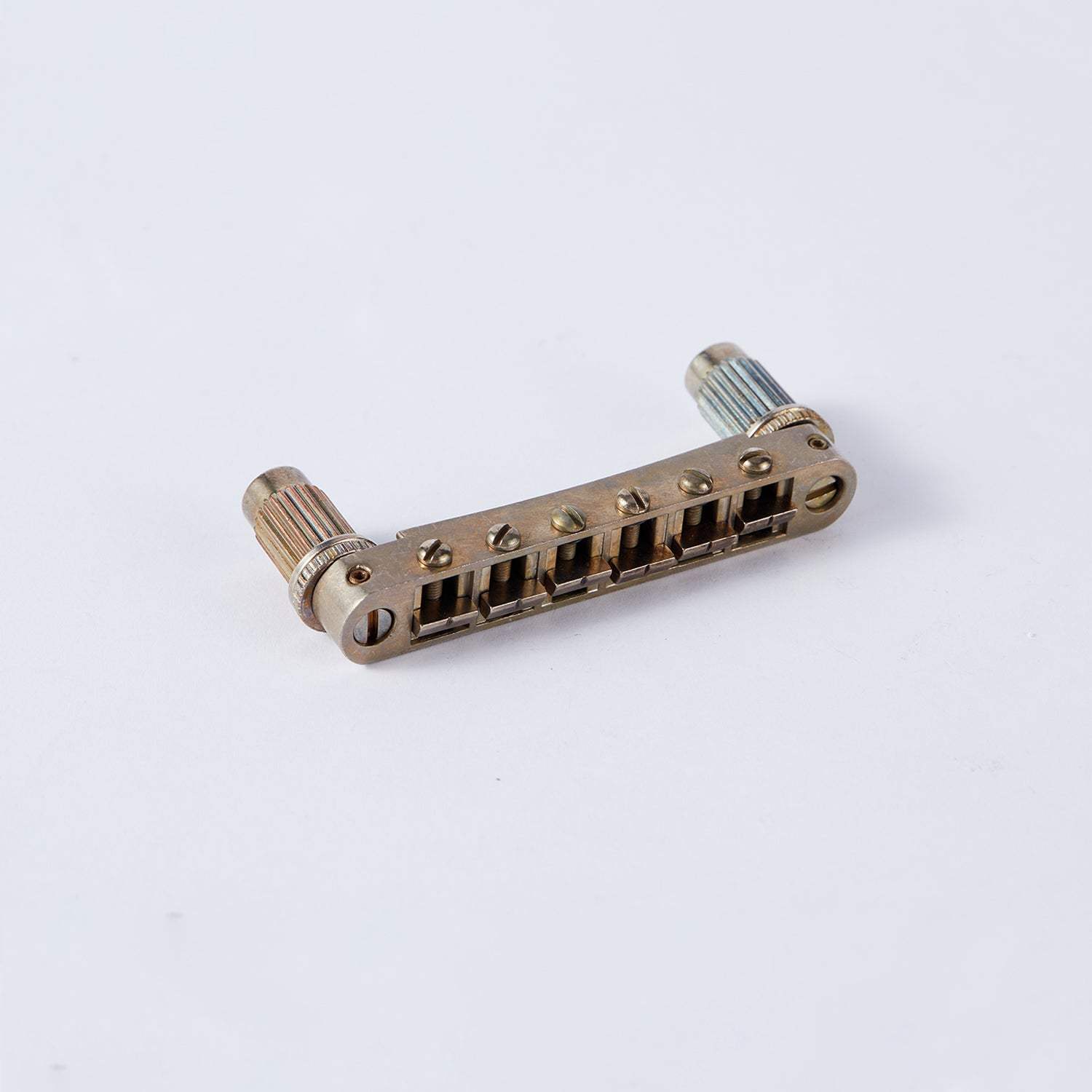

• 1 x Zinc Alloy Bridge
• 2 x Mounting Studs

----------------------------------------------------------------------------------

COMPATIBILITY

The GM003 is an ideal replacement bridge compatible with LP style, EPI or any 6 strings guitar that has a Tune-O-Matic setup.

----------------------------------------------------------------------------------

GM003 INSTALLATION:

1. Determine the scale length of your neck. To do this, measure the length from the nut to the 12th fret then double it, and mark the spot.
2. Align the saddles of your bridge right on top of the marked spot and make sure the entire bridge is centered relative to the neck.
3. Mark the screw holes, drill, and screw down the bridge.
