Materials

• Saddles: Brass Roller Saddles — smooth contact surface for string movement.

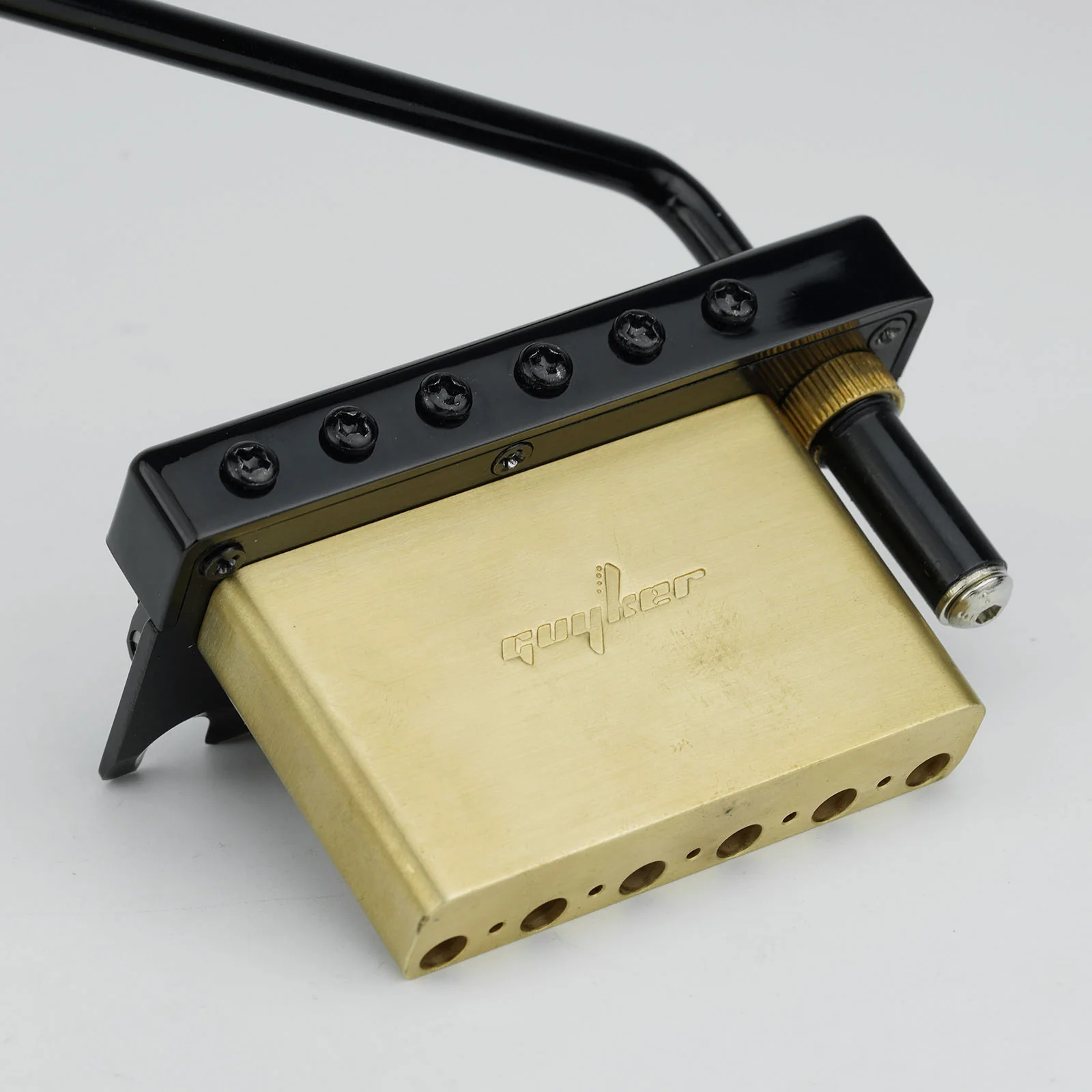

• Block: Solid Brass — dense structure for stable support.

Dimensions

• Overall Length: 85 mm

• Single String Spacing: 10.8 mm

• Mounting Hole Spacing: 56 mm

• Overall Height: 51.4 mm

• Bridge Body Height: 39.4 mm

• Tremolo Arm Socket Diameter: Ø5.5 mm

• Block Length: 63.2 mm

• Saddle Length: 19.4 mm

• Saddle Width: 10.8 mm

• Saddle Height: 5.5mm

• Pivot Post Height: 13 mm

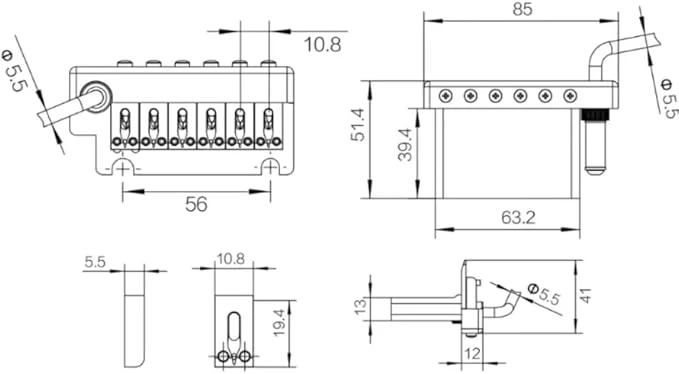

Technical Drawing

Key Features

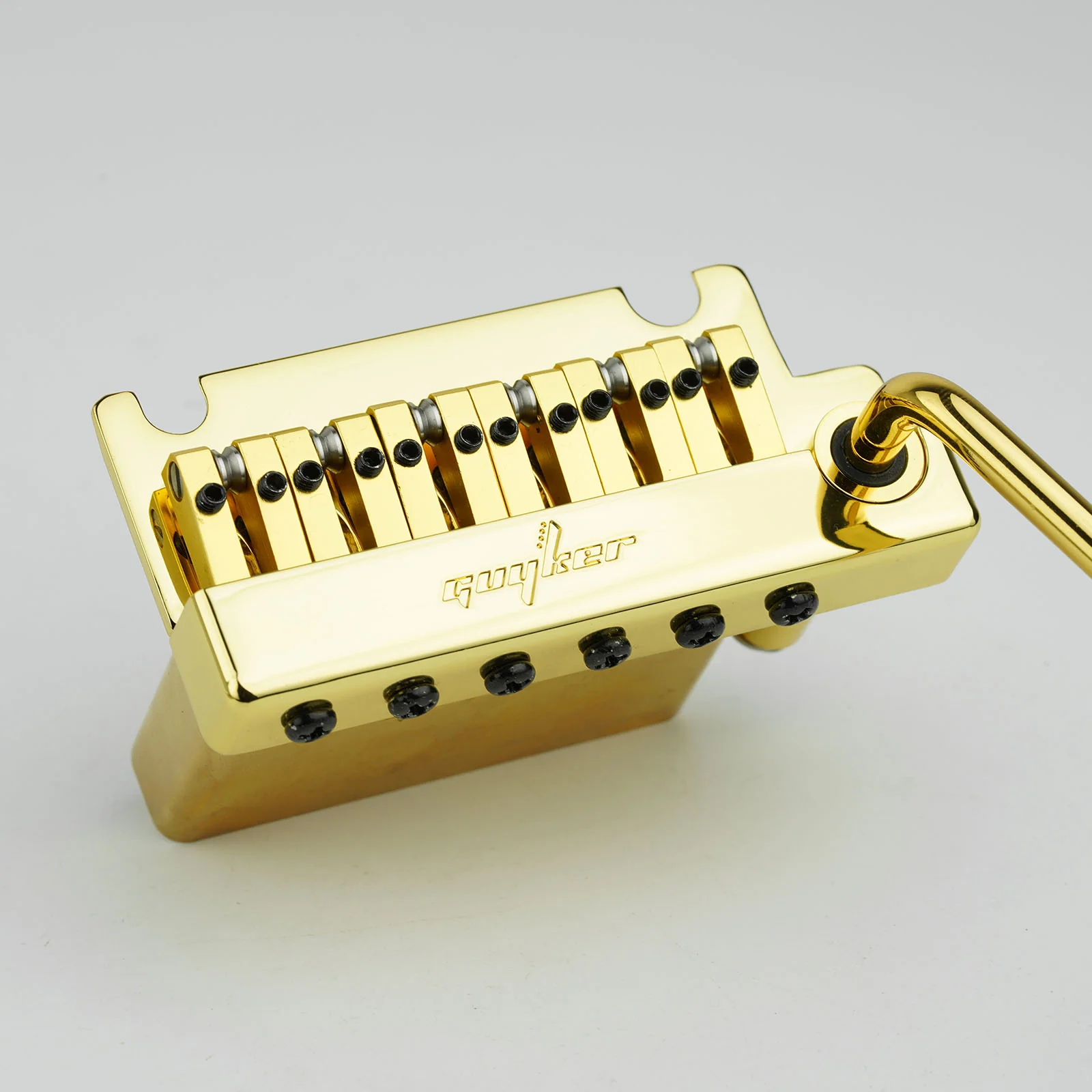

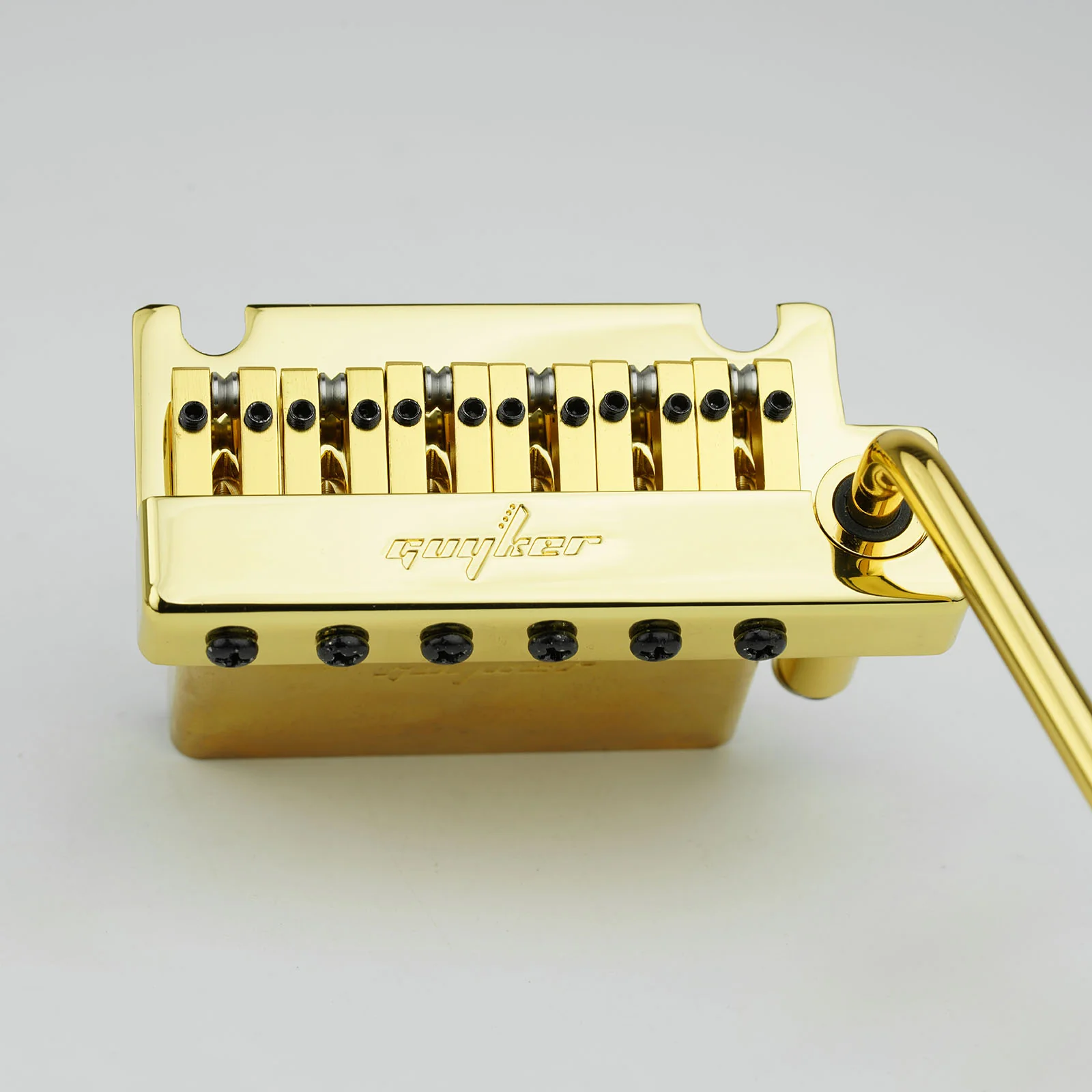

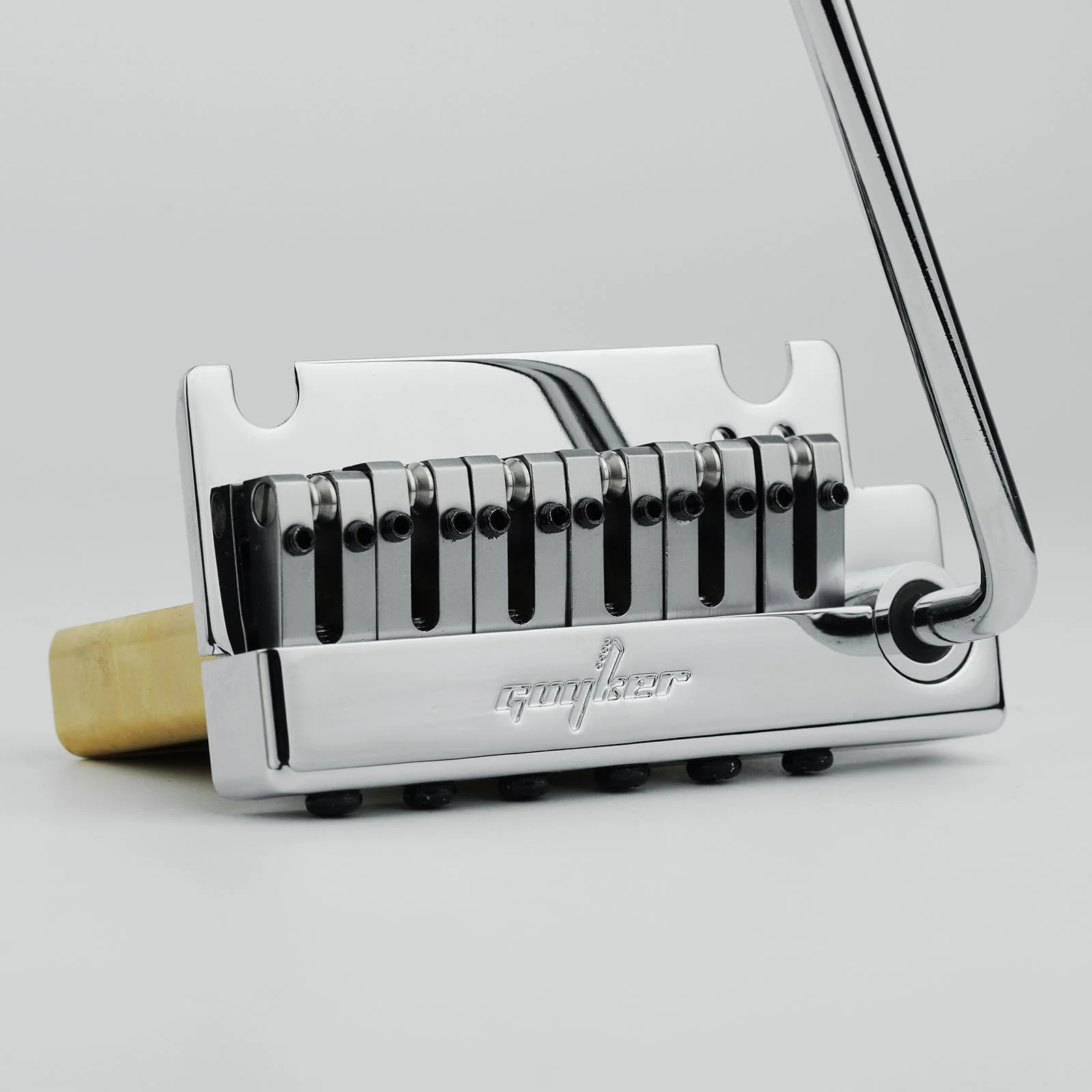

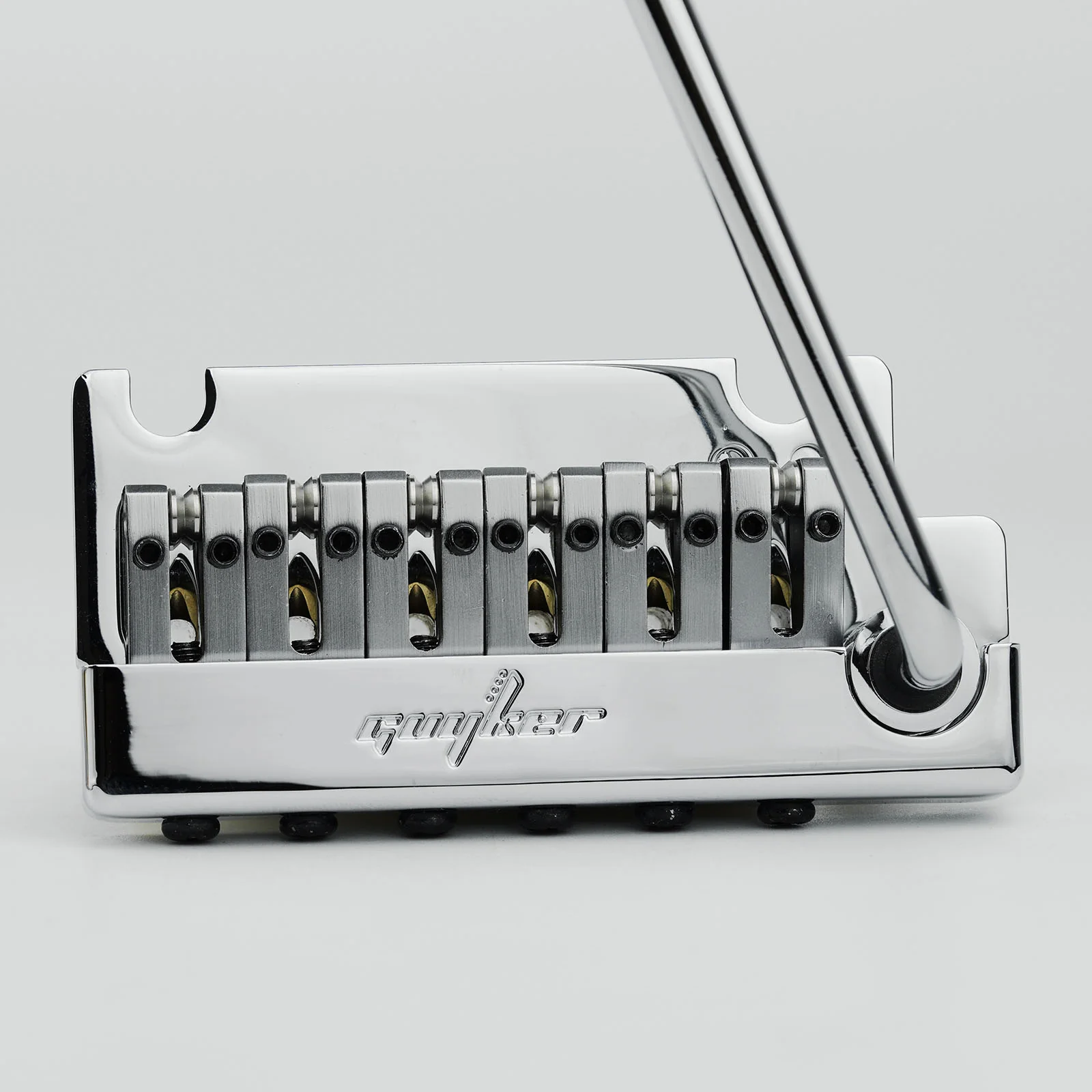

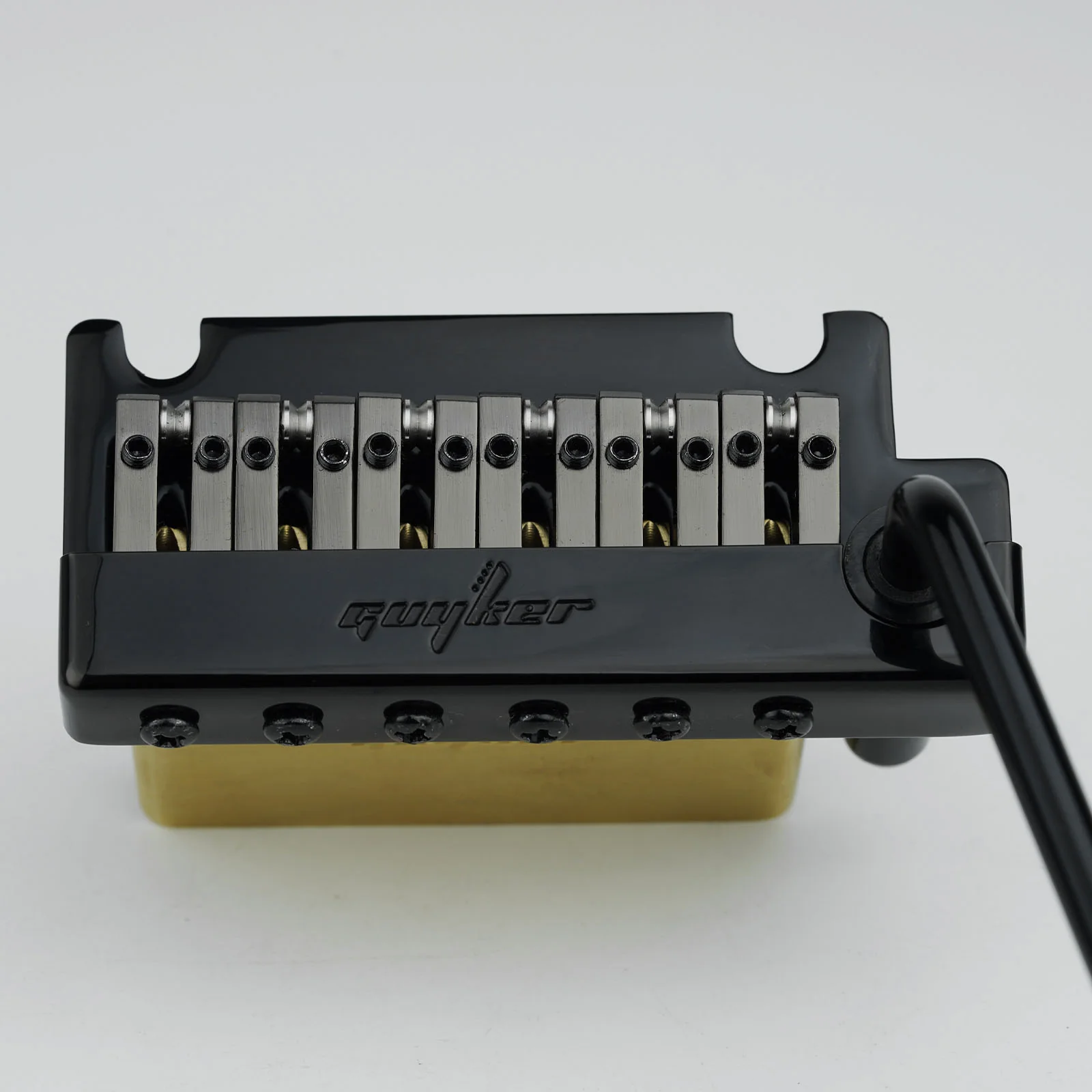

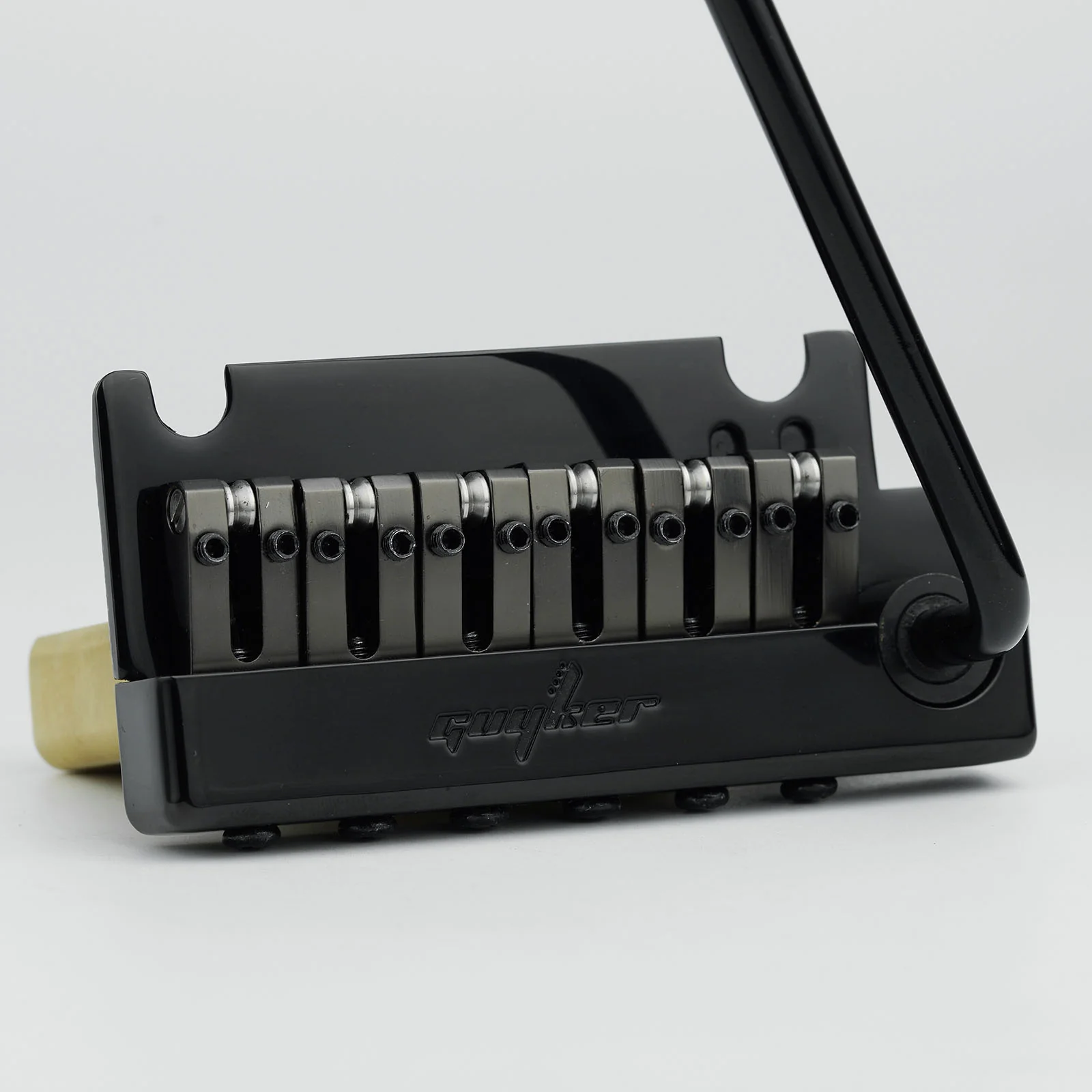

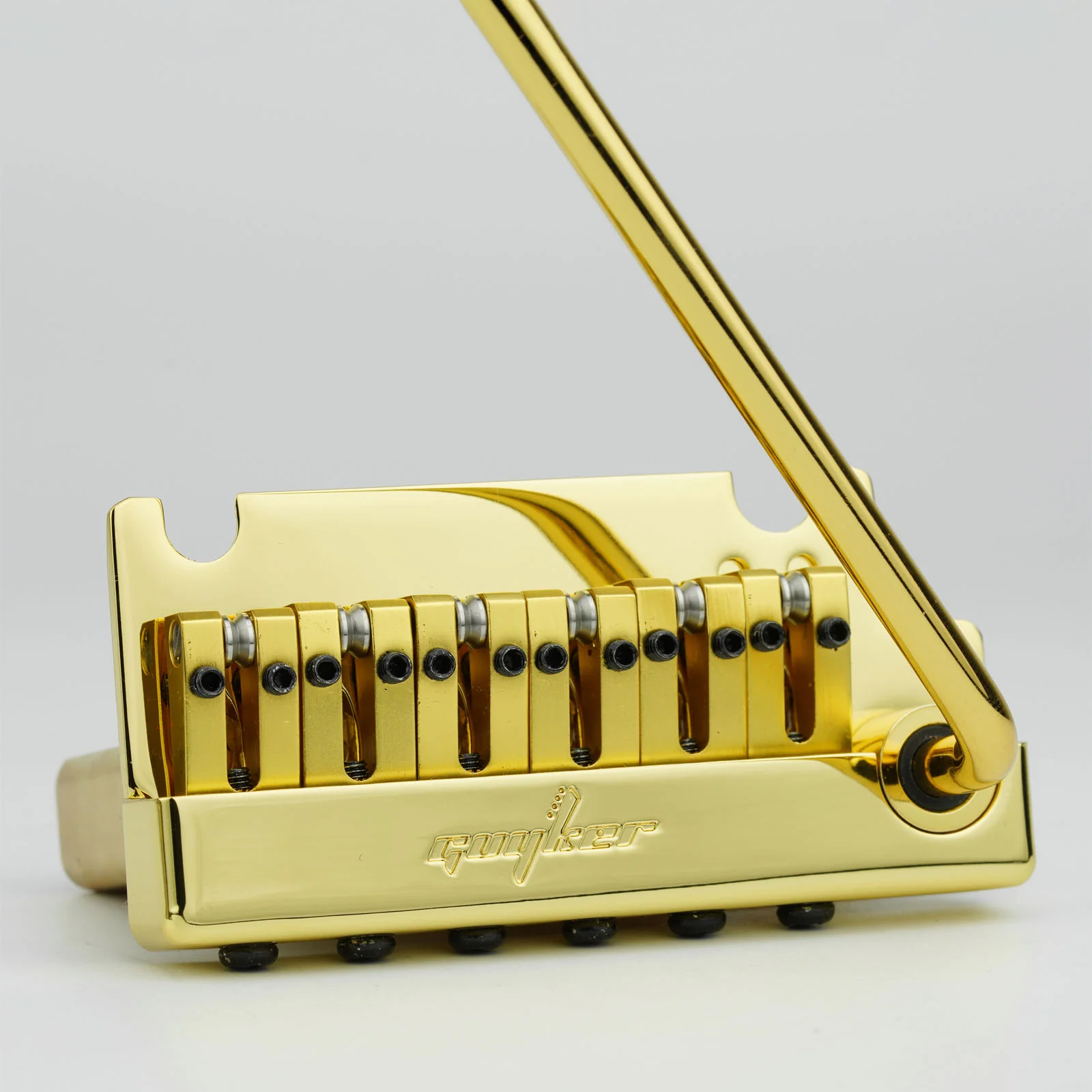

Non-locking 2-point tremolo bridge with brass roller saddles and solid brass block.

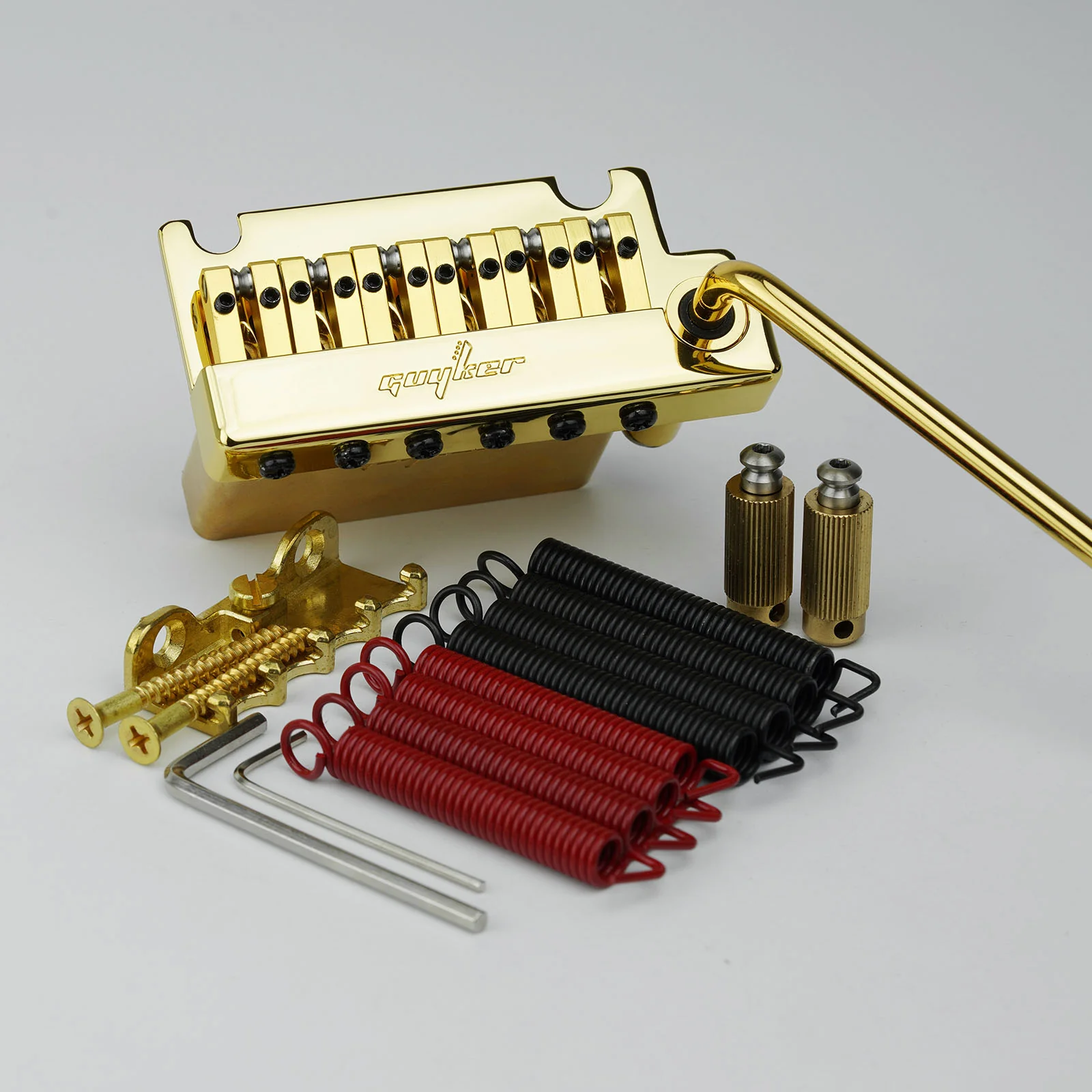

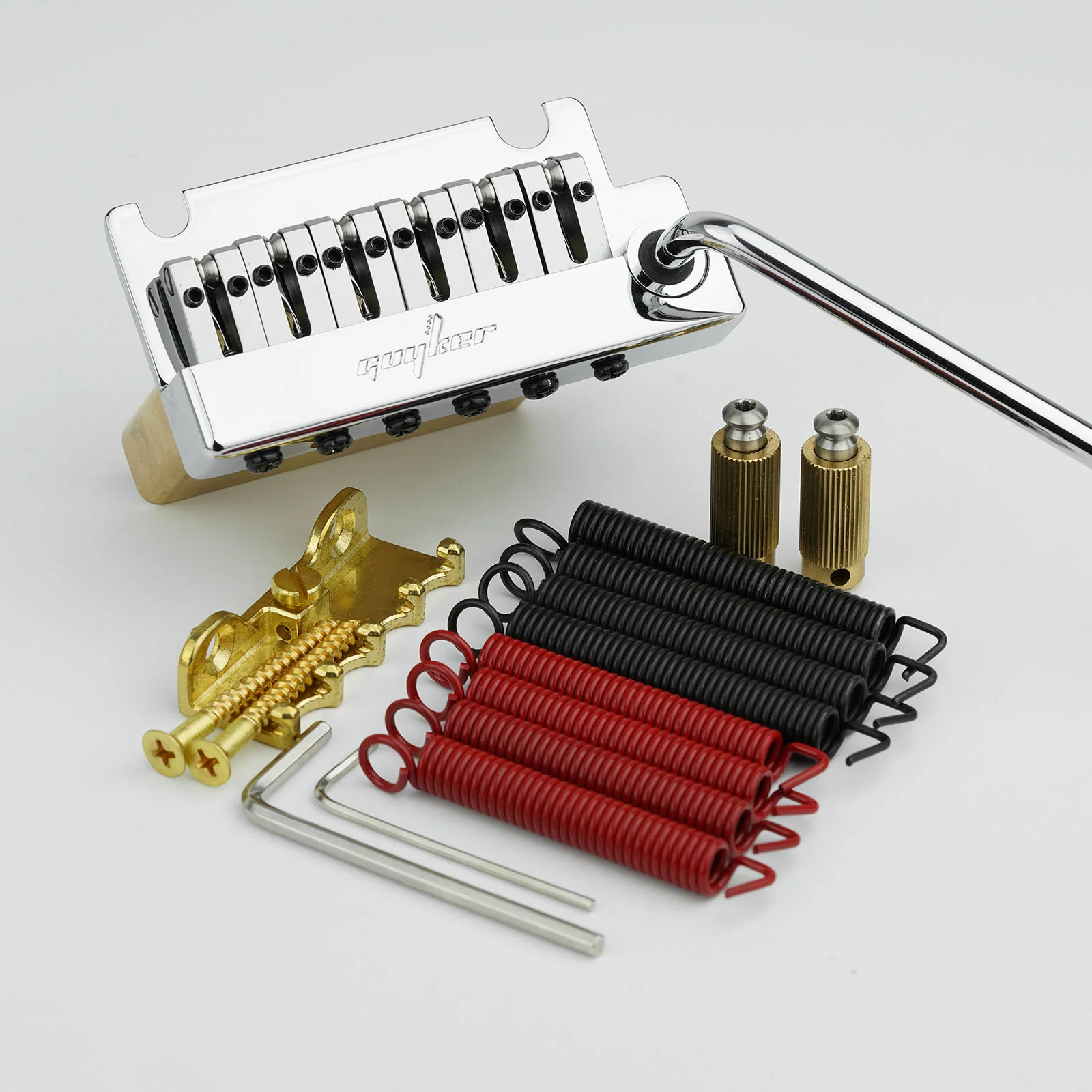

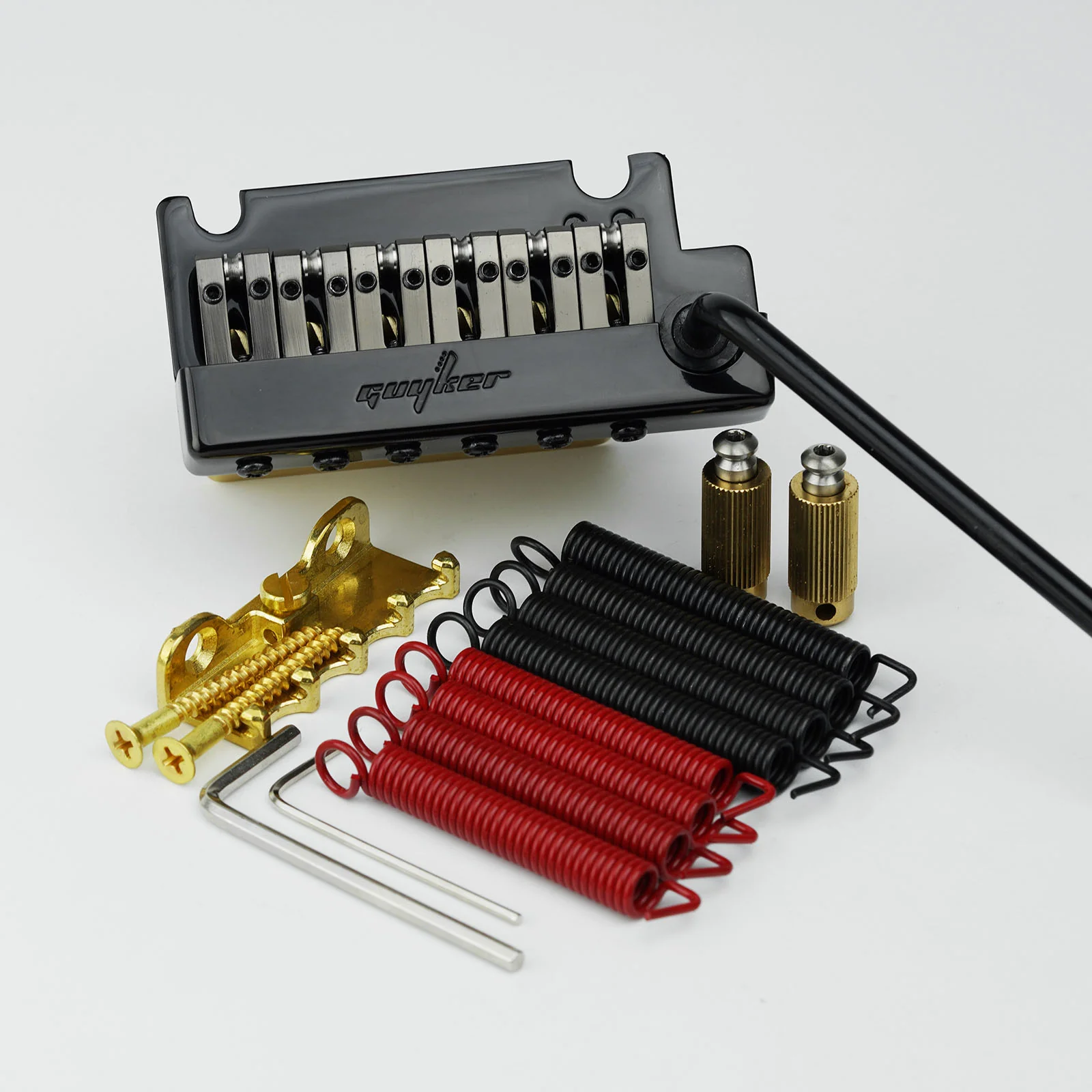

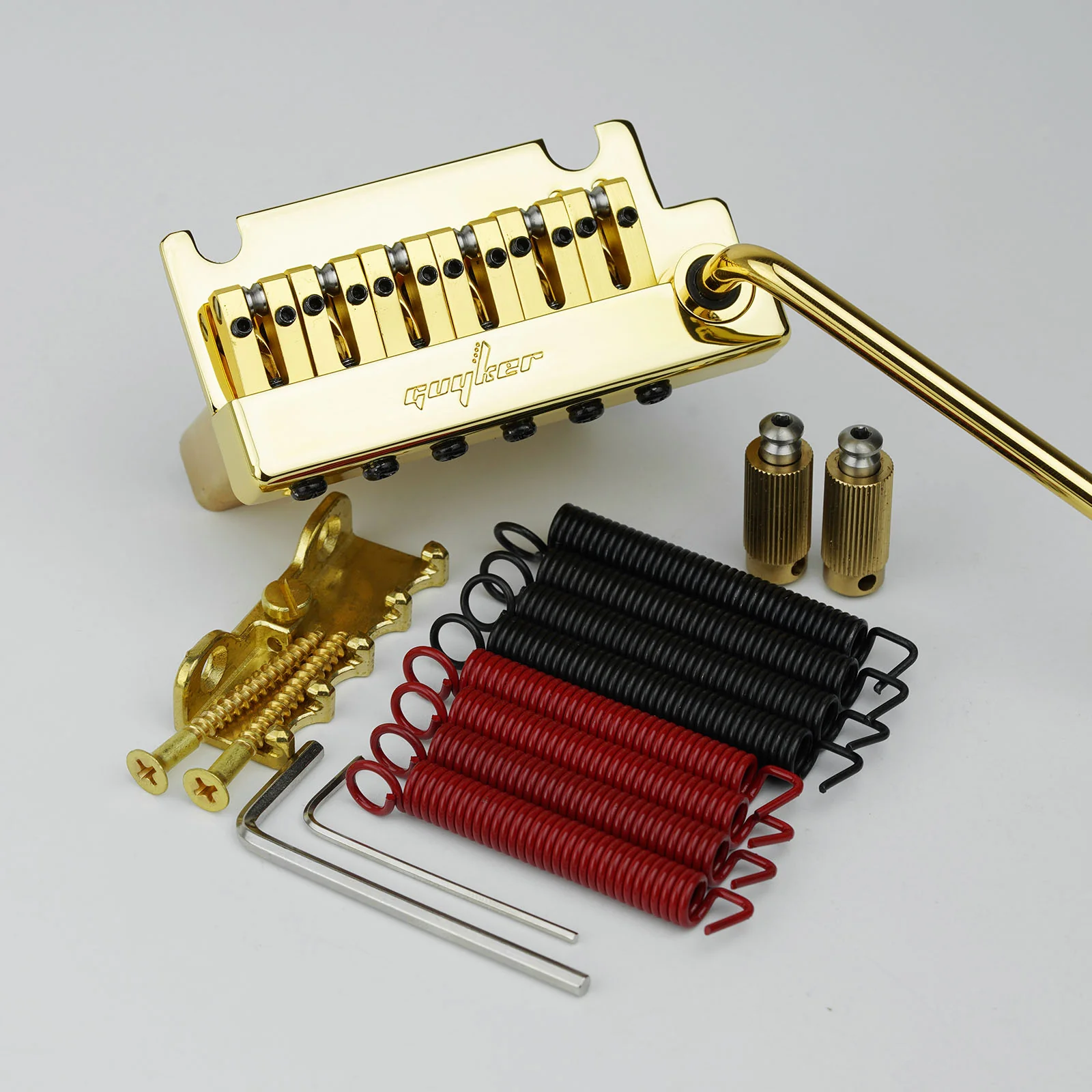

Includes tremolo unit and mounting components.
