Materials

• Body: Zinc Alloy — solid structure for stable mounting.

• Roller: Brass — smooth contact surface for string movement.

Dimensions

• Overall Length: 63.3mm

• Bridge Width: 17 mm

• Bridge Height: 14.5 mm

• Mounting Hole Diameter: Ø3.7 mm

• Mounting Hole Spacing: 40 mm

All dimensions may vary by ±1mm due to manual measurement.

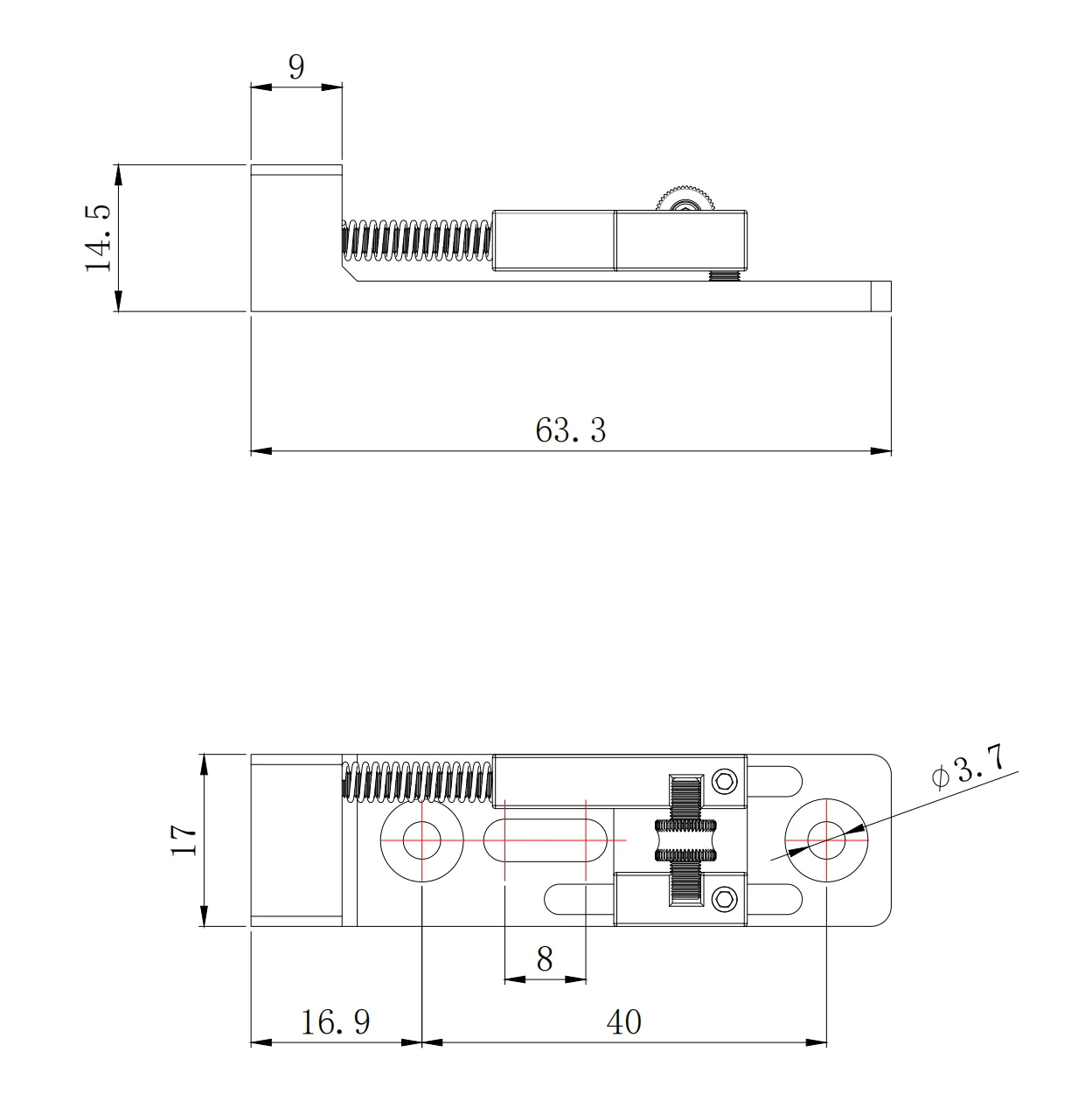

Technical Drawing

Key Features

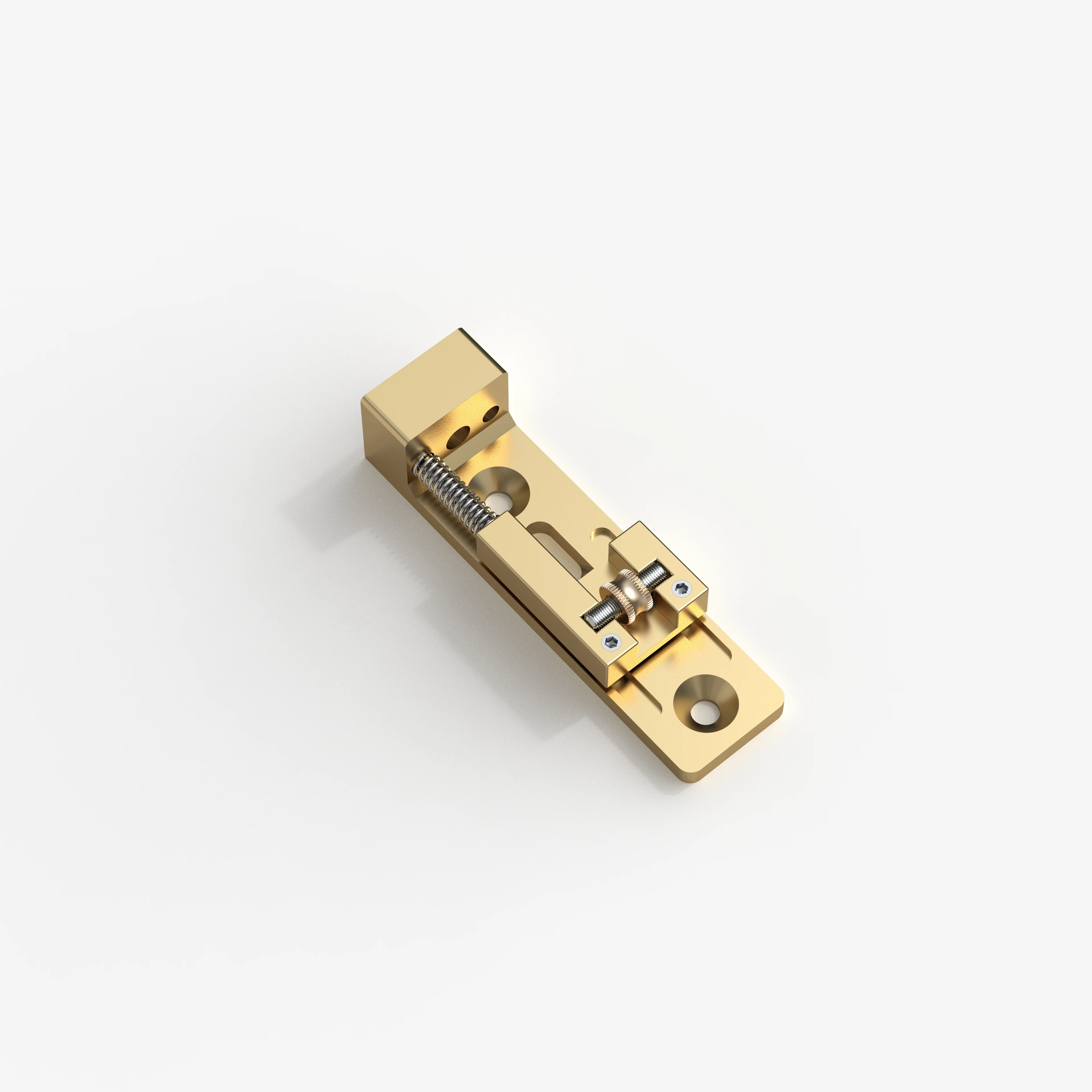

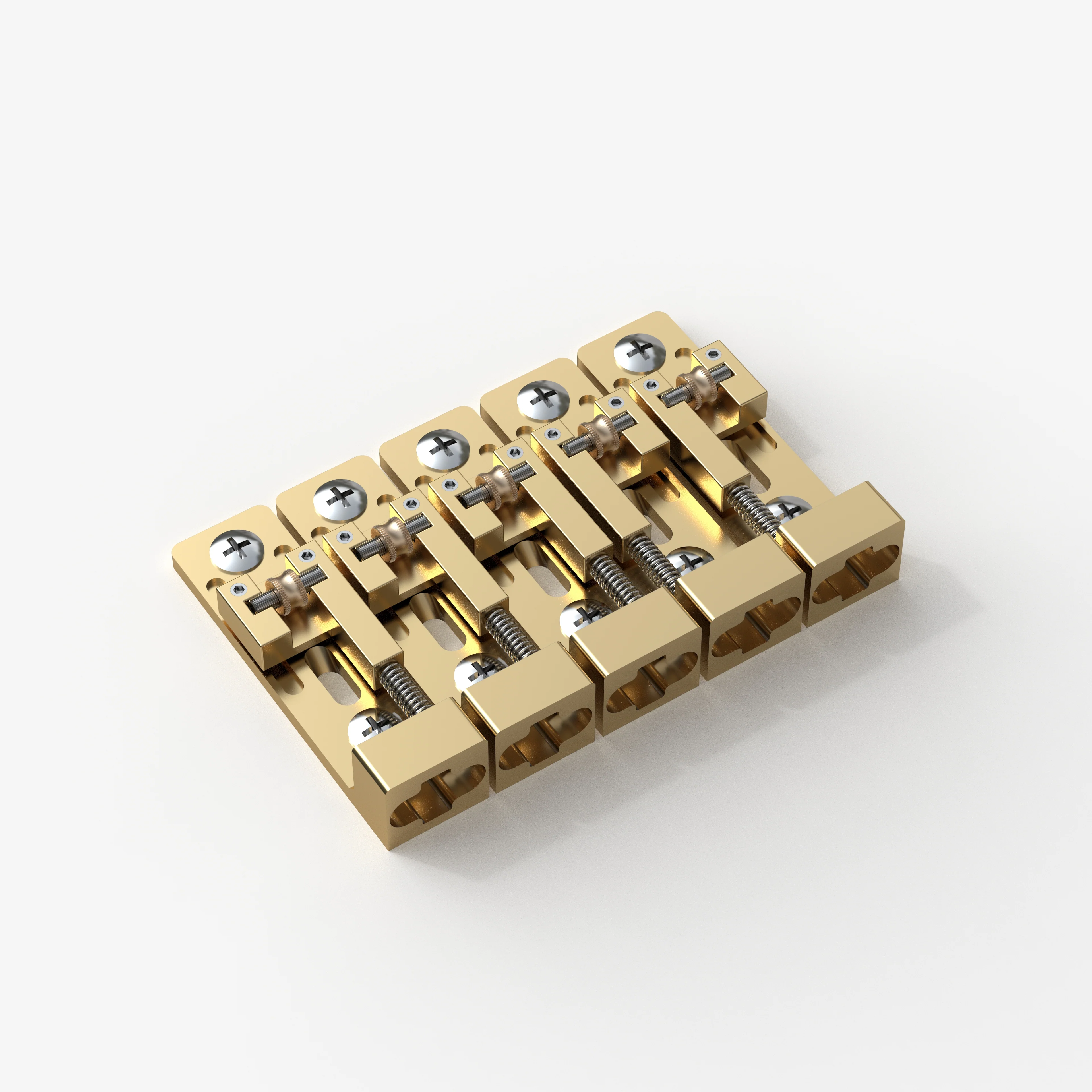

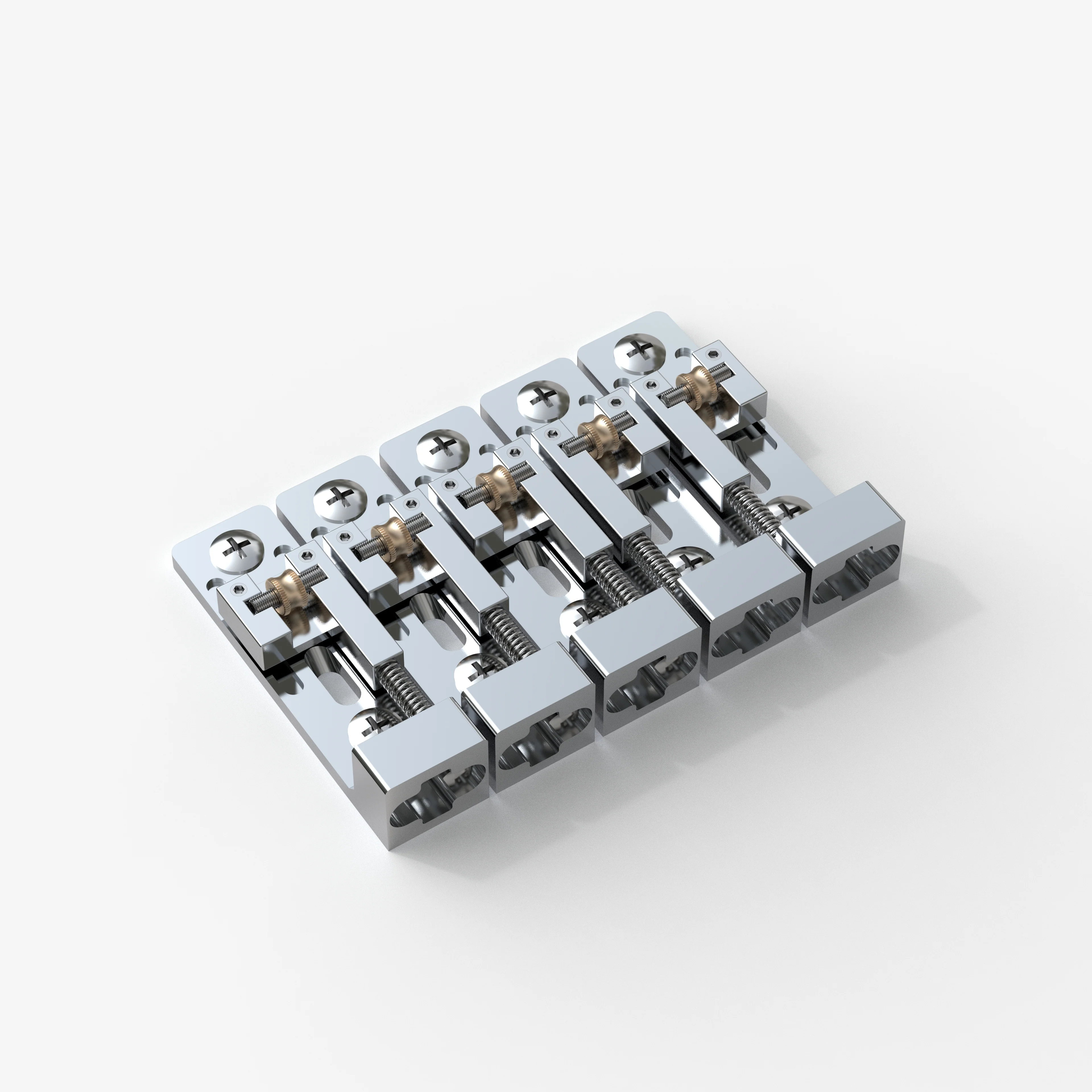

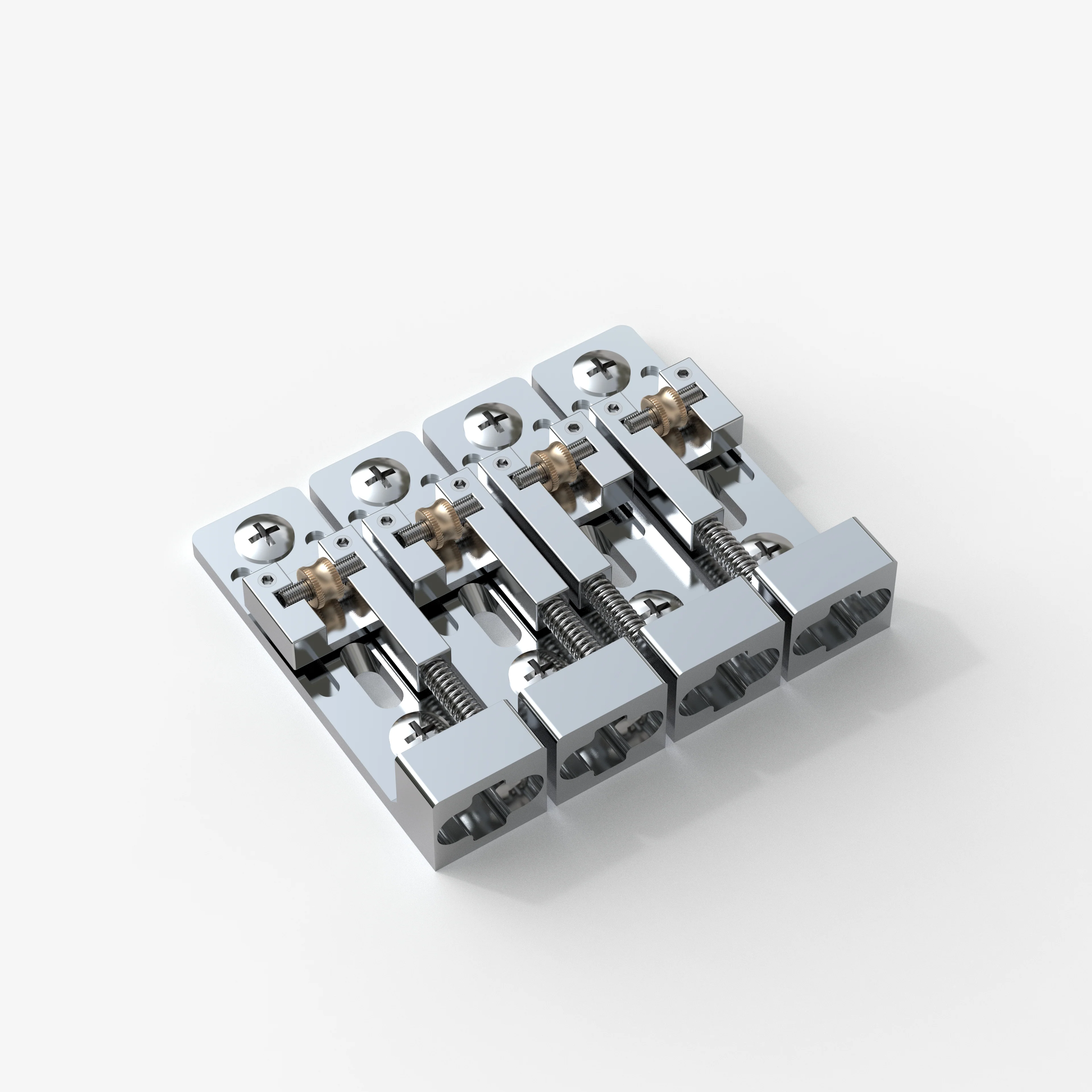

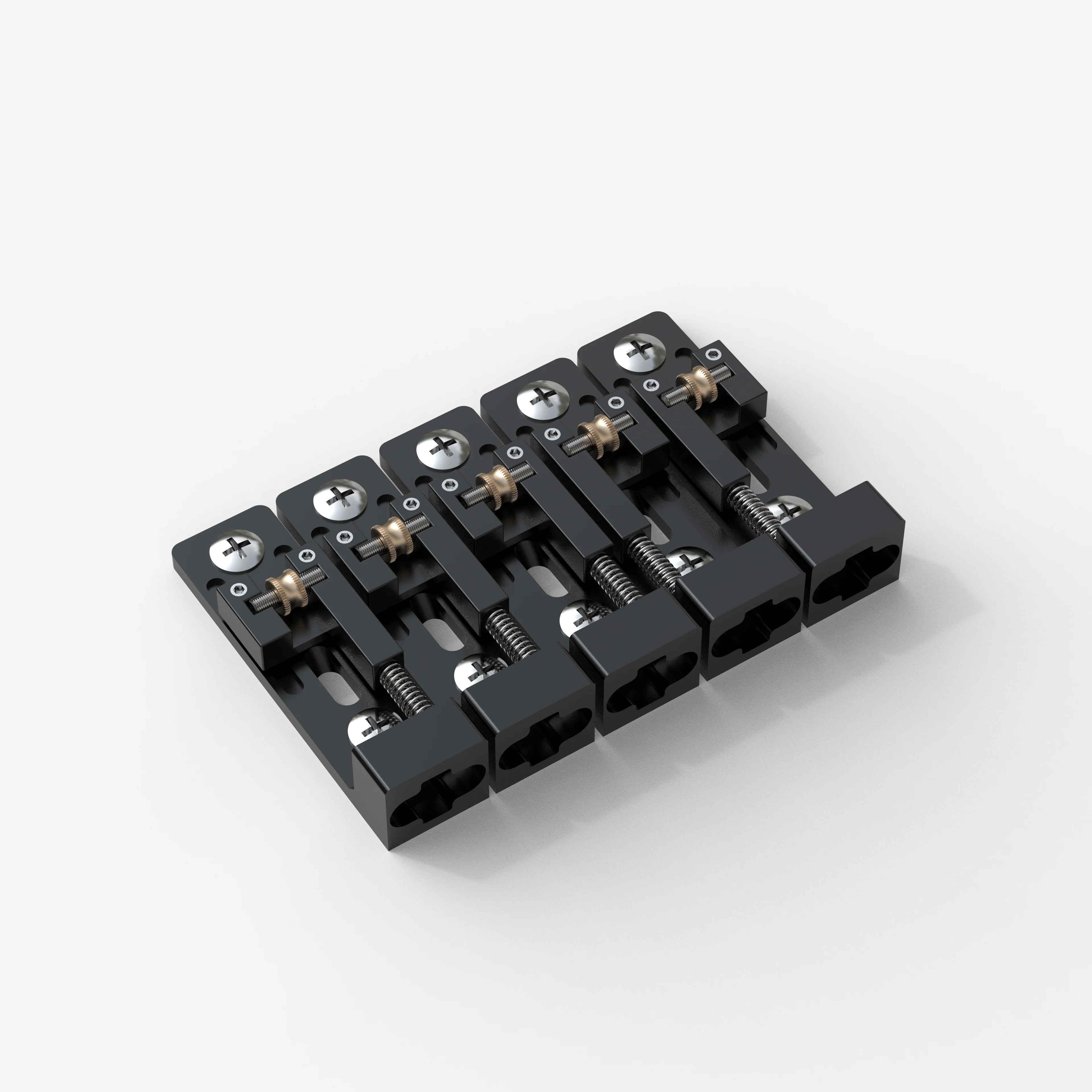

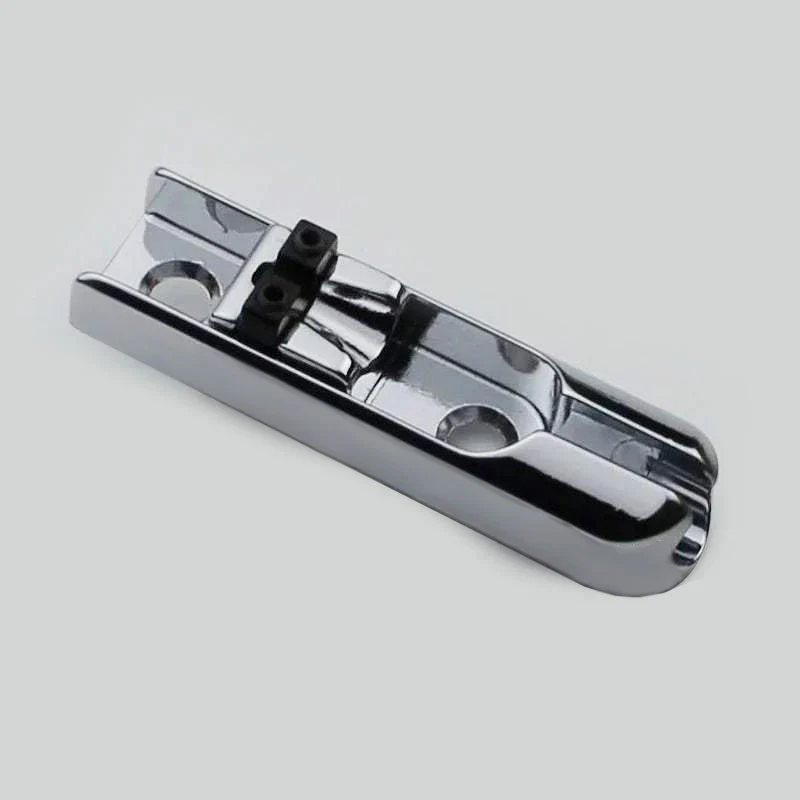

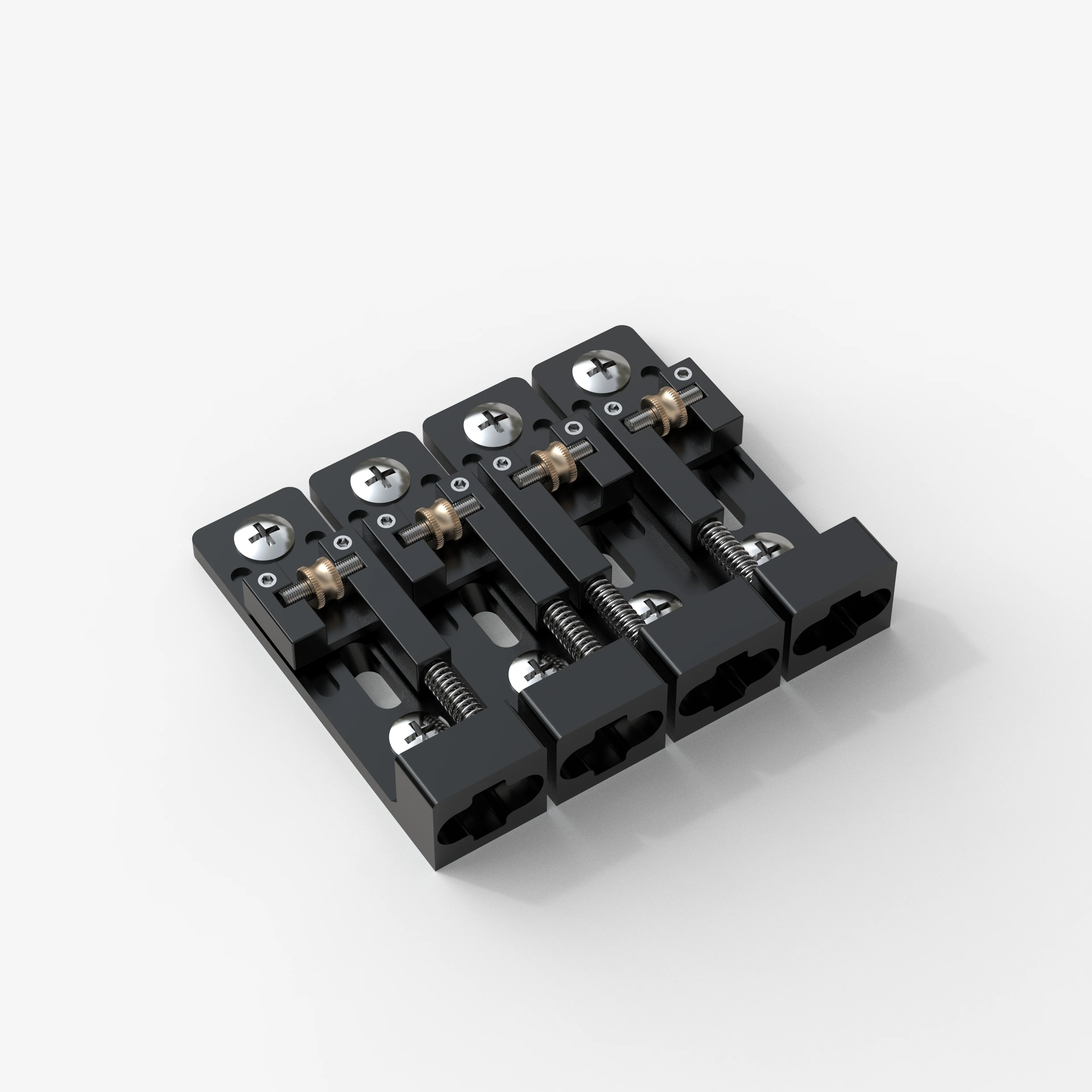

Individual roller bridge designed for 4-string and 5-string electric bass.
Allows adjustable positioning and precise setup.
