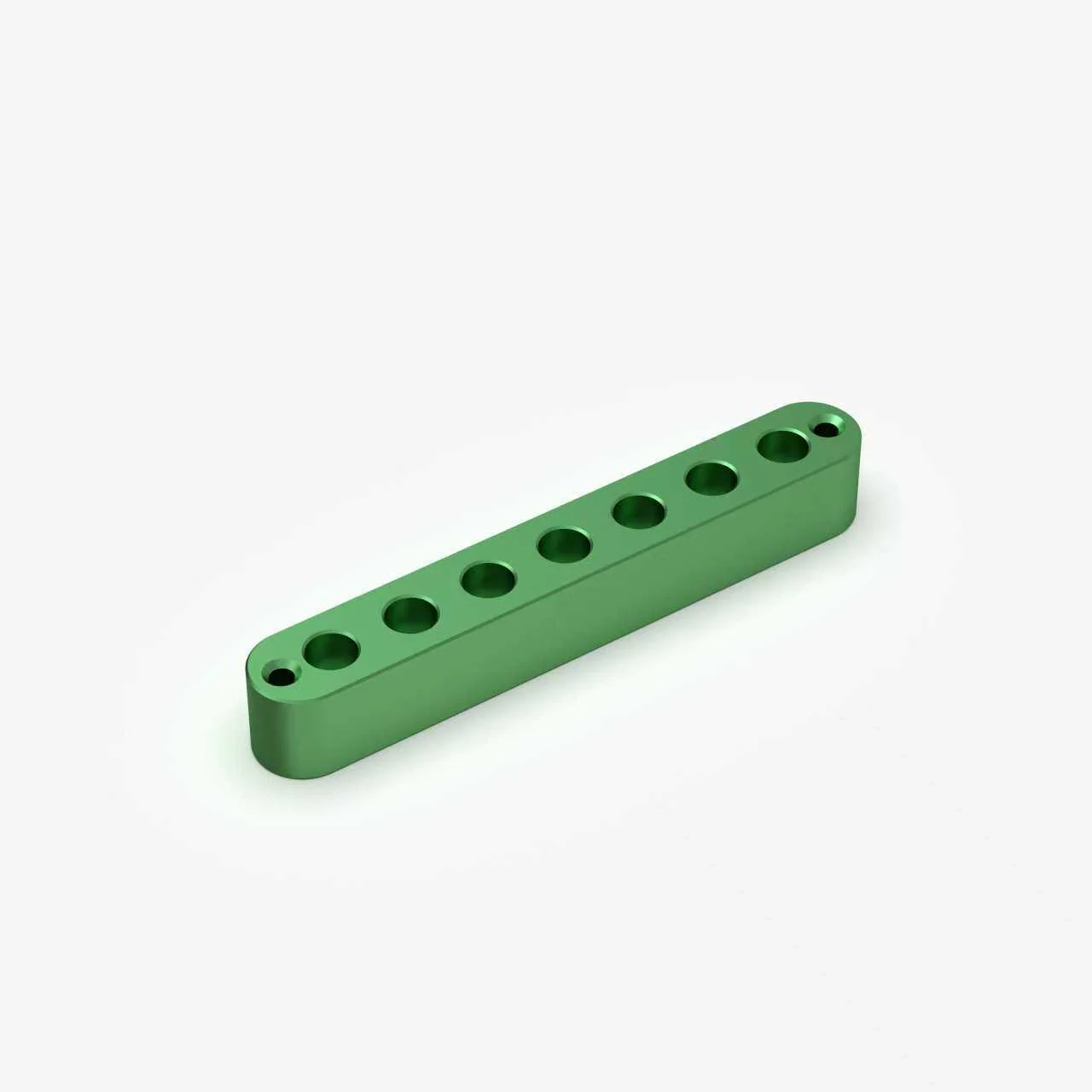

Guyker FB-07 CNC Aluminum 7-String Ferrule Block for Through-Body Guitars

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

Guyker FB-07 CNC Aluminum 7-String Ferrule Block for Through-Body Guitars

Guyker FB-07 CNC Aluminum 7-String Ferrule Block for Through-Body Guitars

Materials

  • CNC Machined Aluminum – Solid aluminum construction.

  • One-piece 7-string ferrule block design.

Dimensions

  • Length: 85.6 mm (3.37")

  • Bridge Width: 12.5 mm (0.49")

  • Bridge Height: 12.5 mm (0.49")

  • String Spacing: 10.8 mm

  • Total String Spread: 64.7 mm

  • Mounting Screw Spacing: 78 mm

  • String Hole Diameter: Ø6.2 mm
All dimensions may vary by ±1mm due to manual measurement.

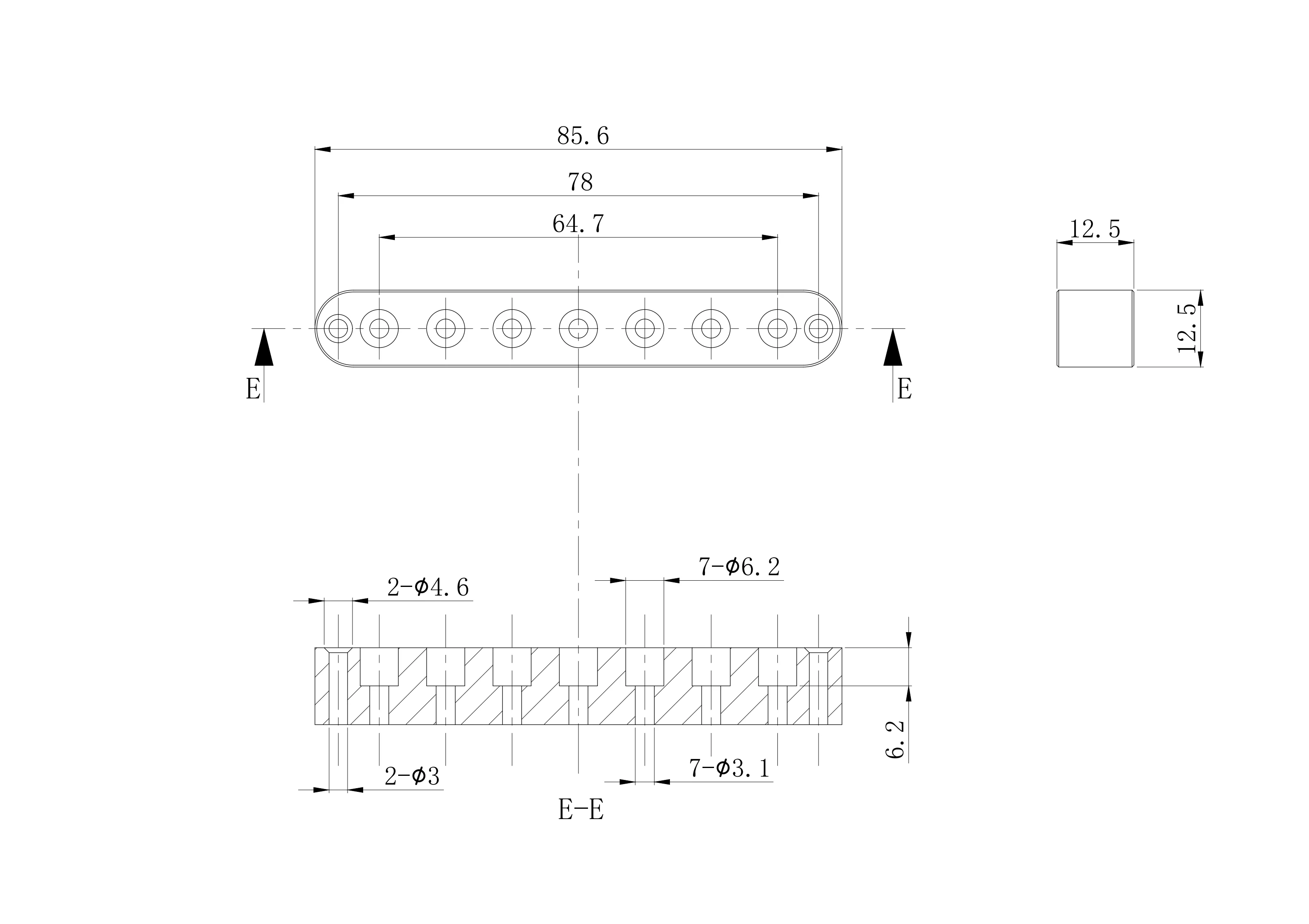

Technical Drawing

Aluminum 7-String Ferrule Block for Through-Body Guitars Guyker

Select Color
From $6.60

Original: $21.99

-70%
Guyker FB-07 CNC Aluminum 7-String Ferrule Block for Through-Body Guitars—

$21.99

$6.60

Product Information

Shipping & Returns

Description

Materials

  • CNC Machined Aluminum – Solid aluminum construction.

  • One-piece 7-string ferrule block design.

Dimensions

  • Length: 85.6 mm (3.37")

  • Bridge Width: 12.5 mm (0.49")

  • Bridge Height: 12.5 mm (0.49")

  • String Spacing: 10.8 mm

  • Total String Spread: 64.7 mm

  • Mounting Screw Spacing: 78 mm

  • String Hole Diameter: Ø6.2 mm
All dimensions may vary by ±1mm due to manual measurement.

Technical Drawing

Aluminum 7-String Ferrule Block for Through-Body Guitars Guyker

You may also like

-70%NEW
Thumbnail 1Thumbnail 2

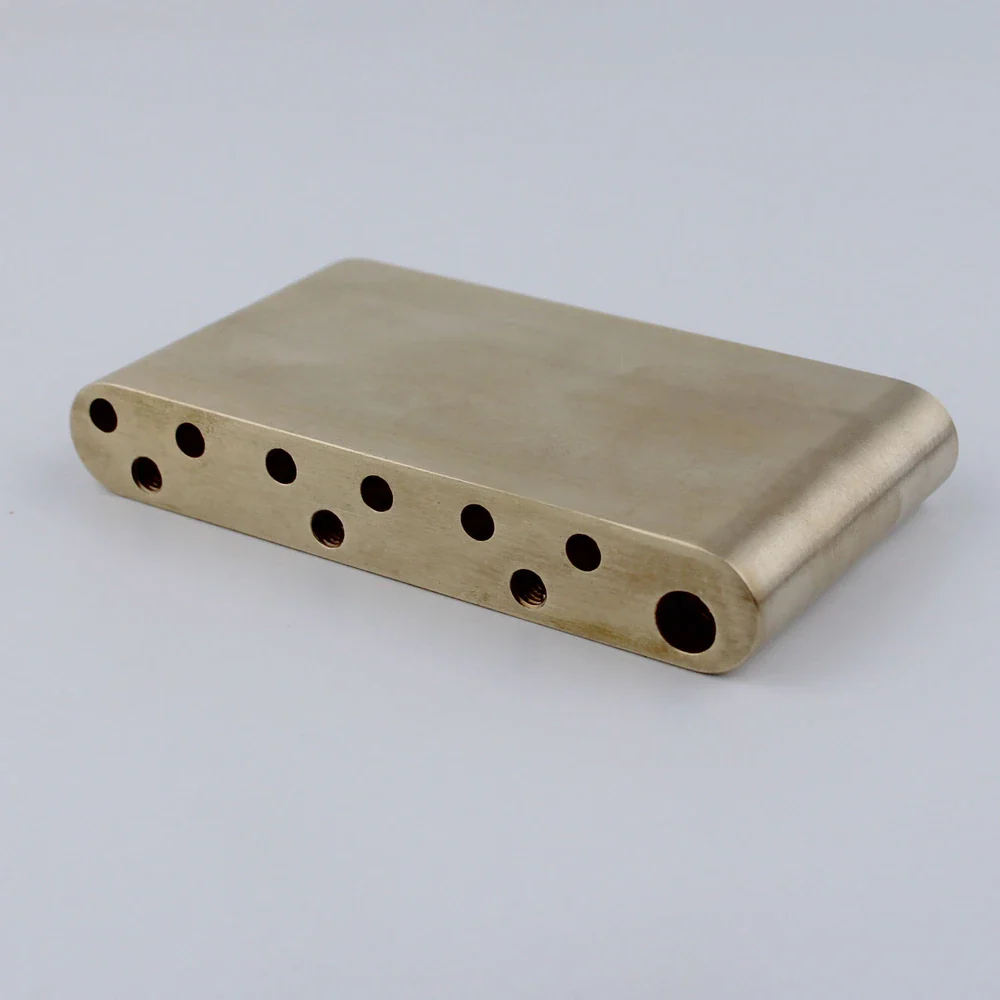

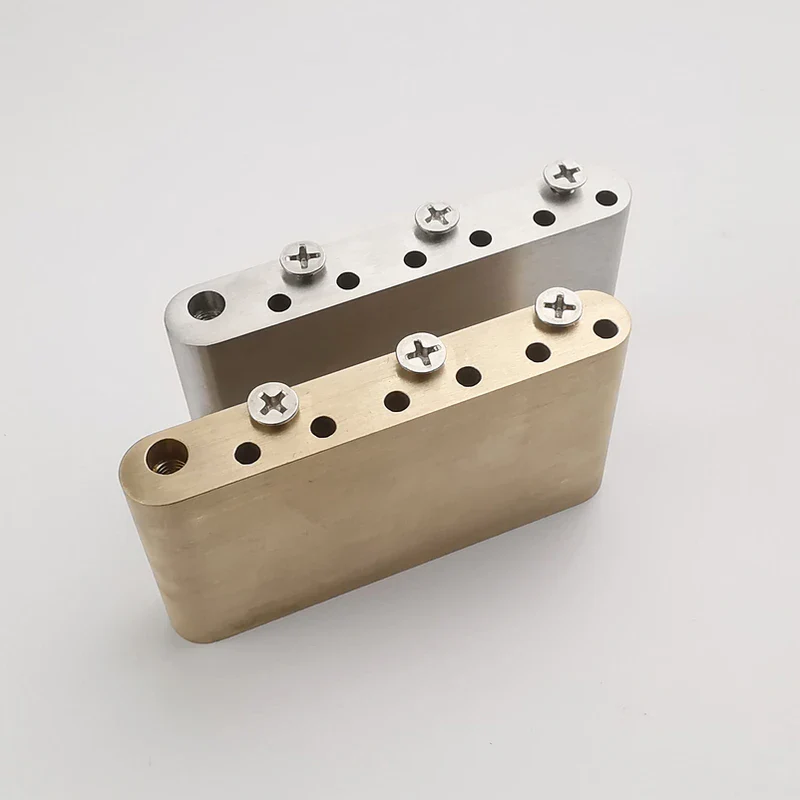

Guyker Tremolo System Bridge with Stainless Steel and Brass Blocks for Mexico FD CV

$31.99

$9.60

-70%NEW
Thumbnail 1Thumbnail 2

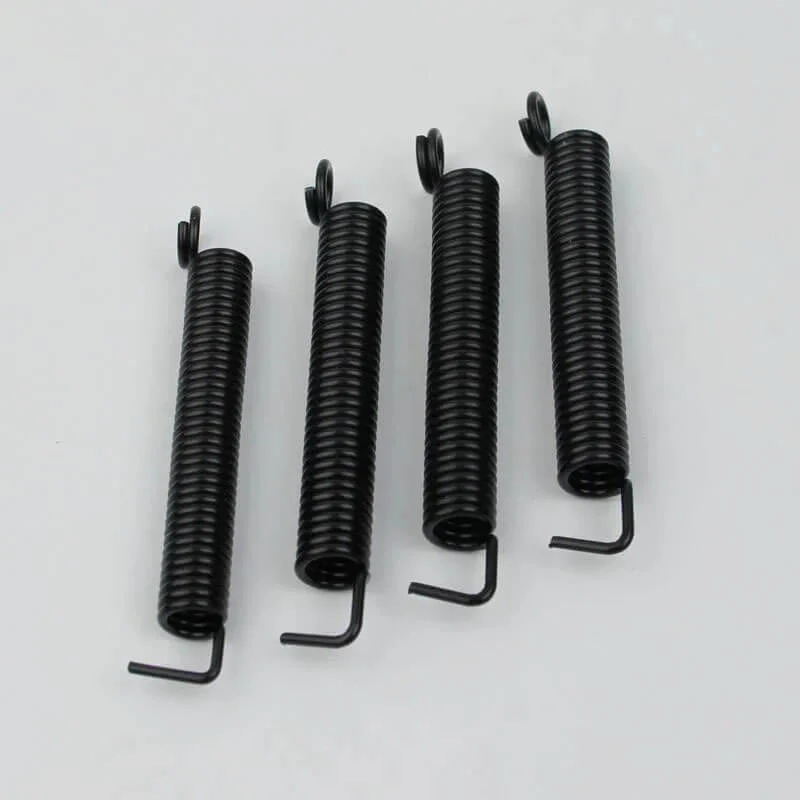

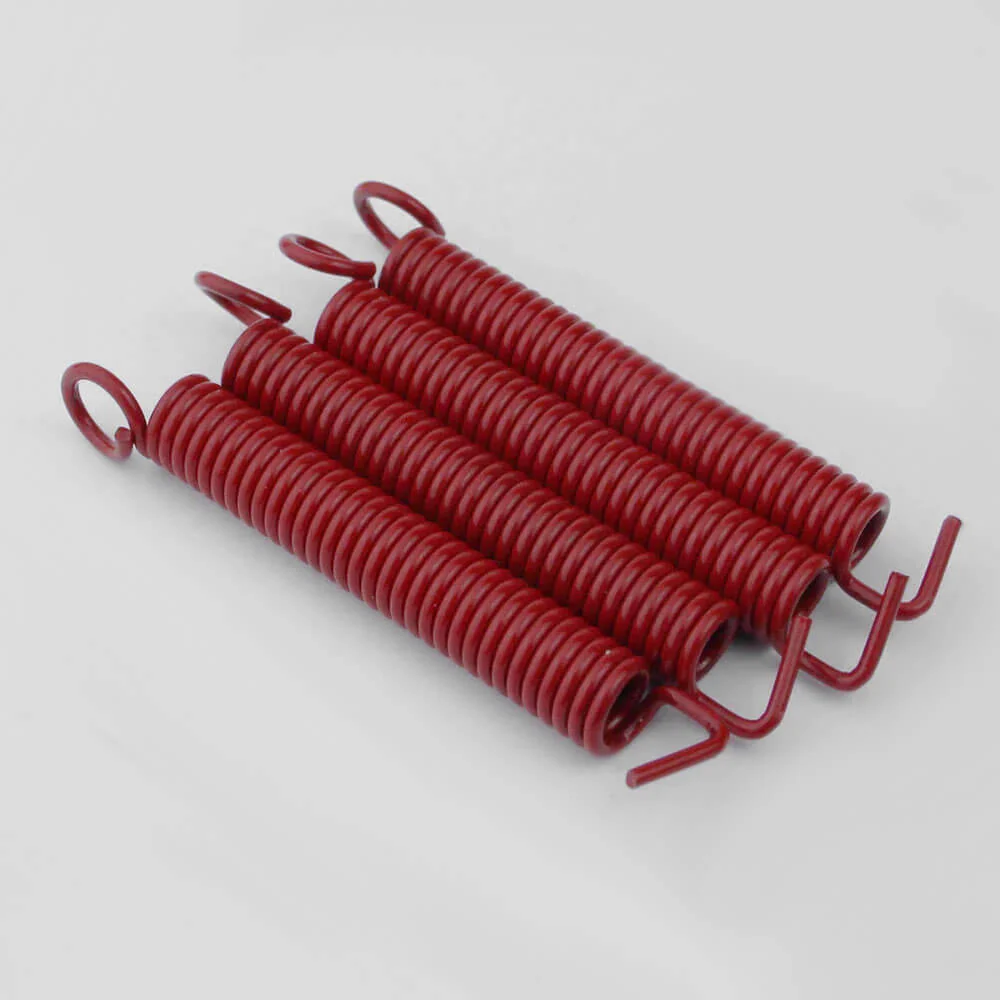

Guyker Guitar Tremolo Bridge Springs (Set of 4) Replacement for Strat ST FR Style Precision Instruments

$5.99

$1.80

-70%NEW
Thumbnail 1Thumbnail 2

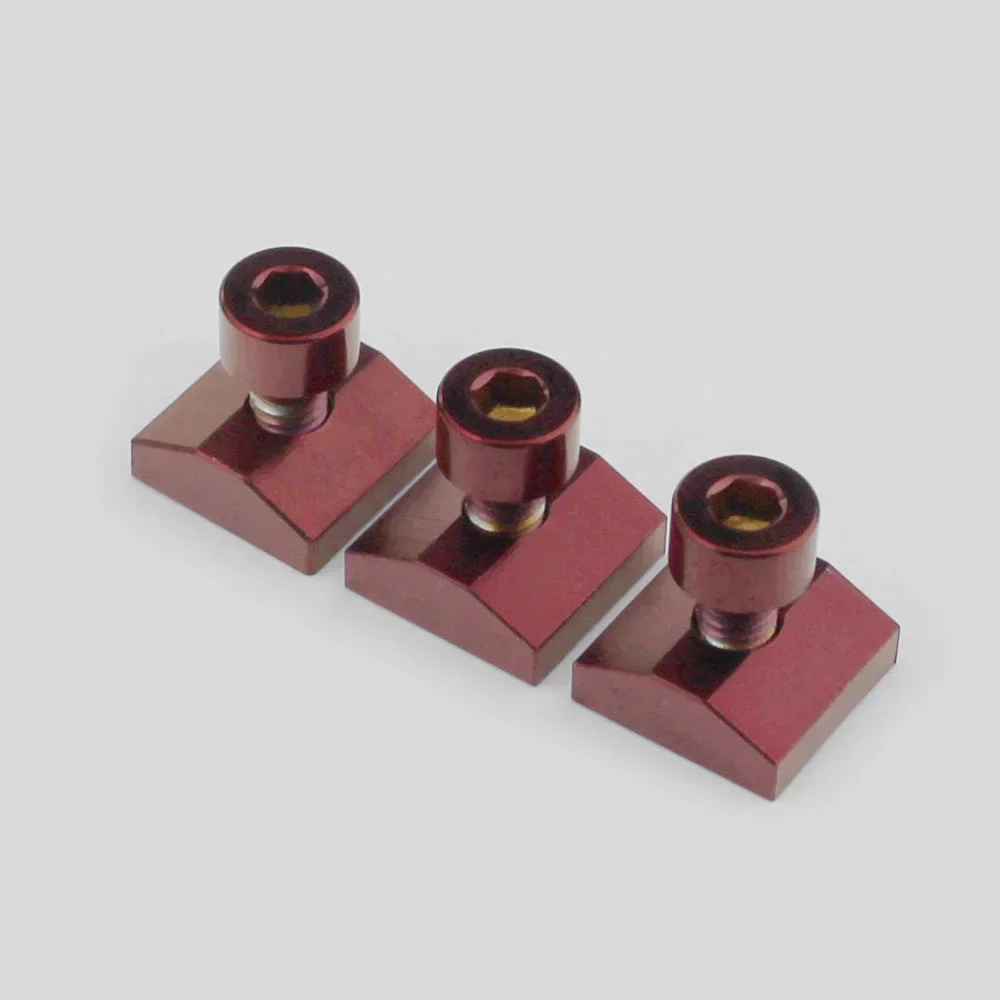

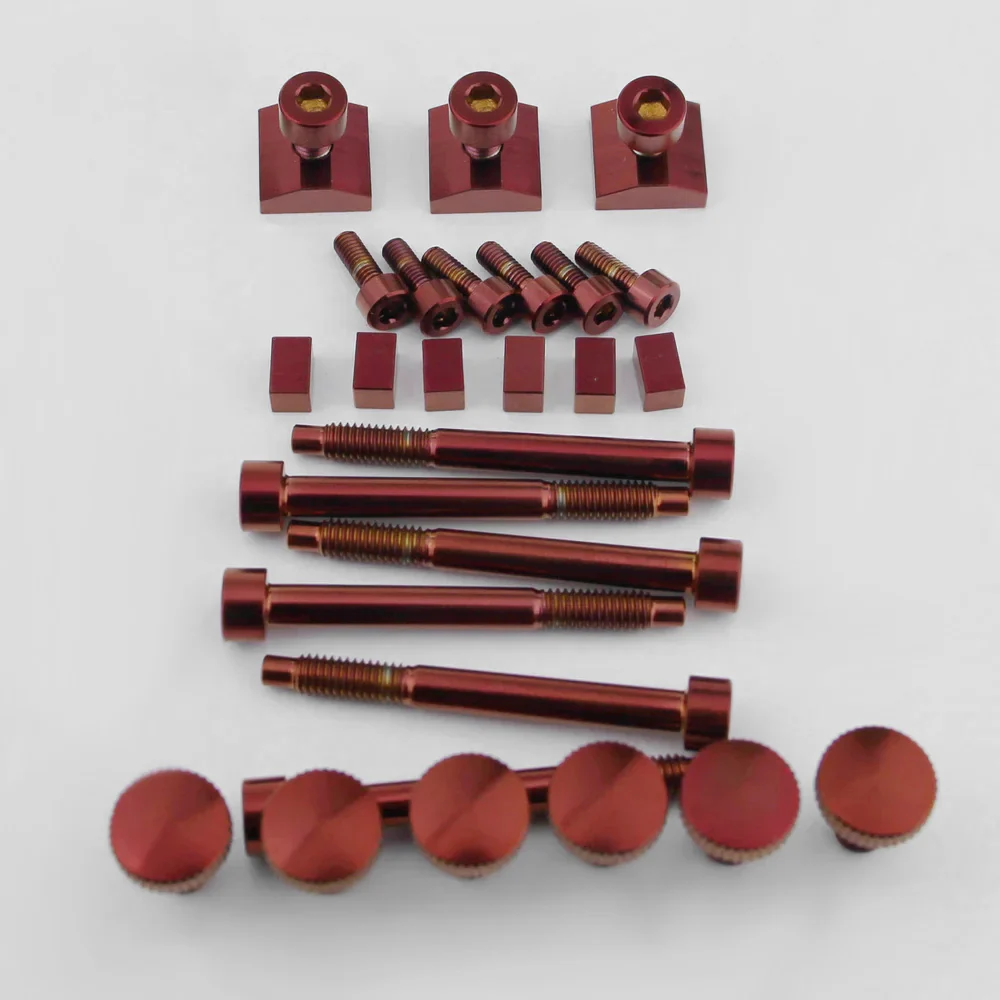

1 Set Red Titanium Alloy FR Screw Set

$114.99

$34.50

NEW
Thumbnail 1Thumbnail 2

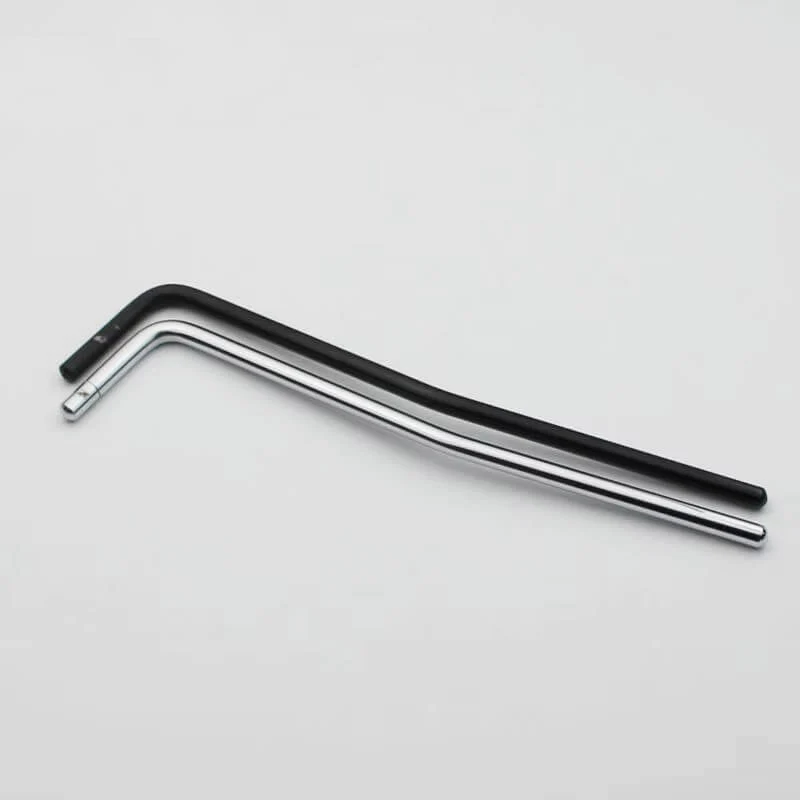

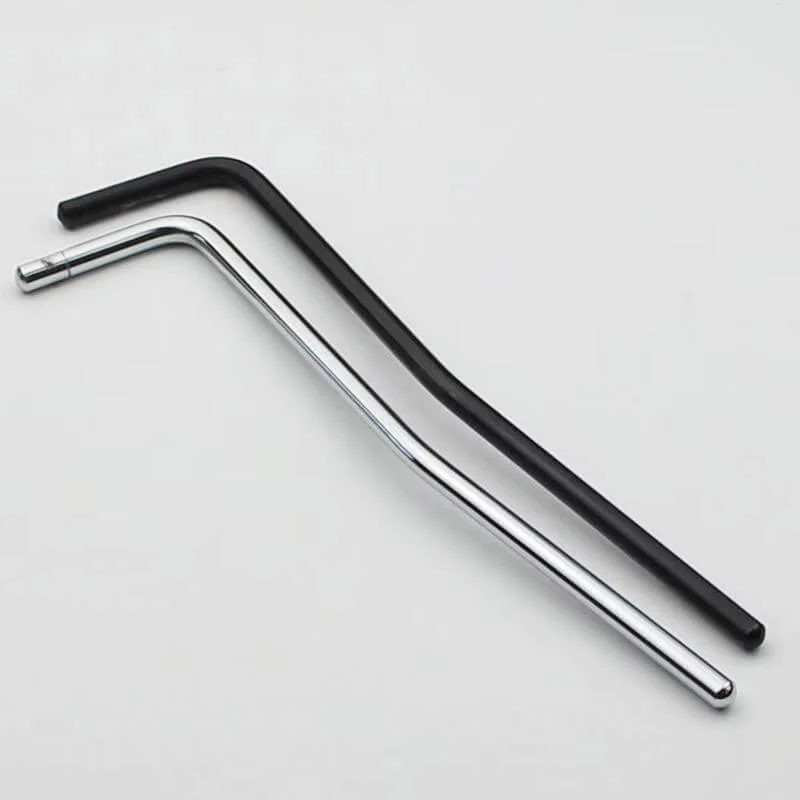

Electric Guitar Tremolo System Bridge Arm Diameter 5.5MM For Iban EDGE III / SAT Pro II / FAT 10

$5.99

NEW
Thumbnail 1Thumbnail 2

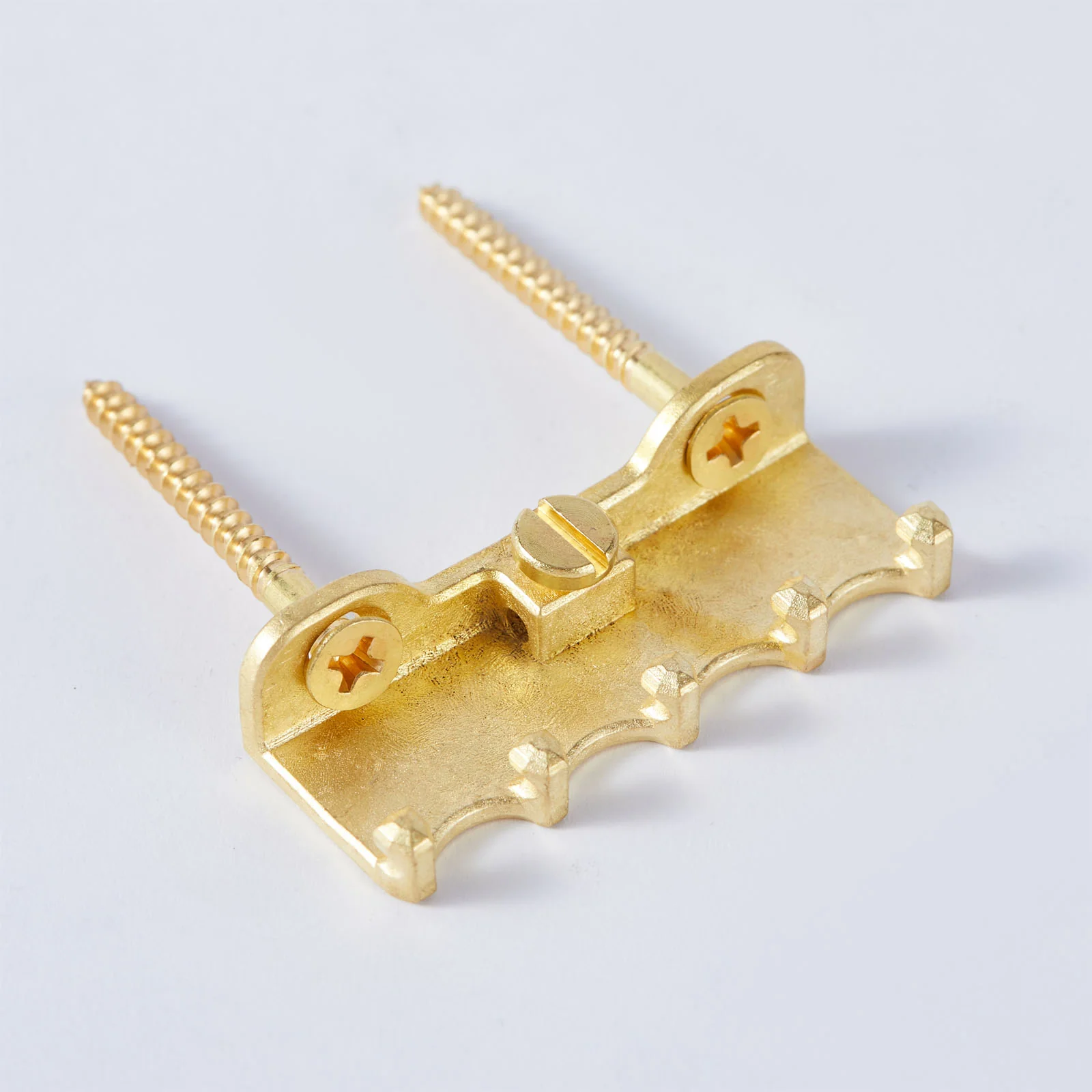

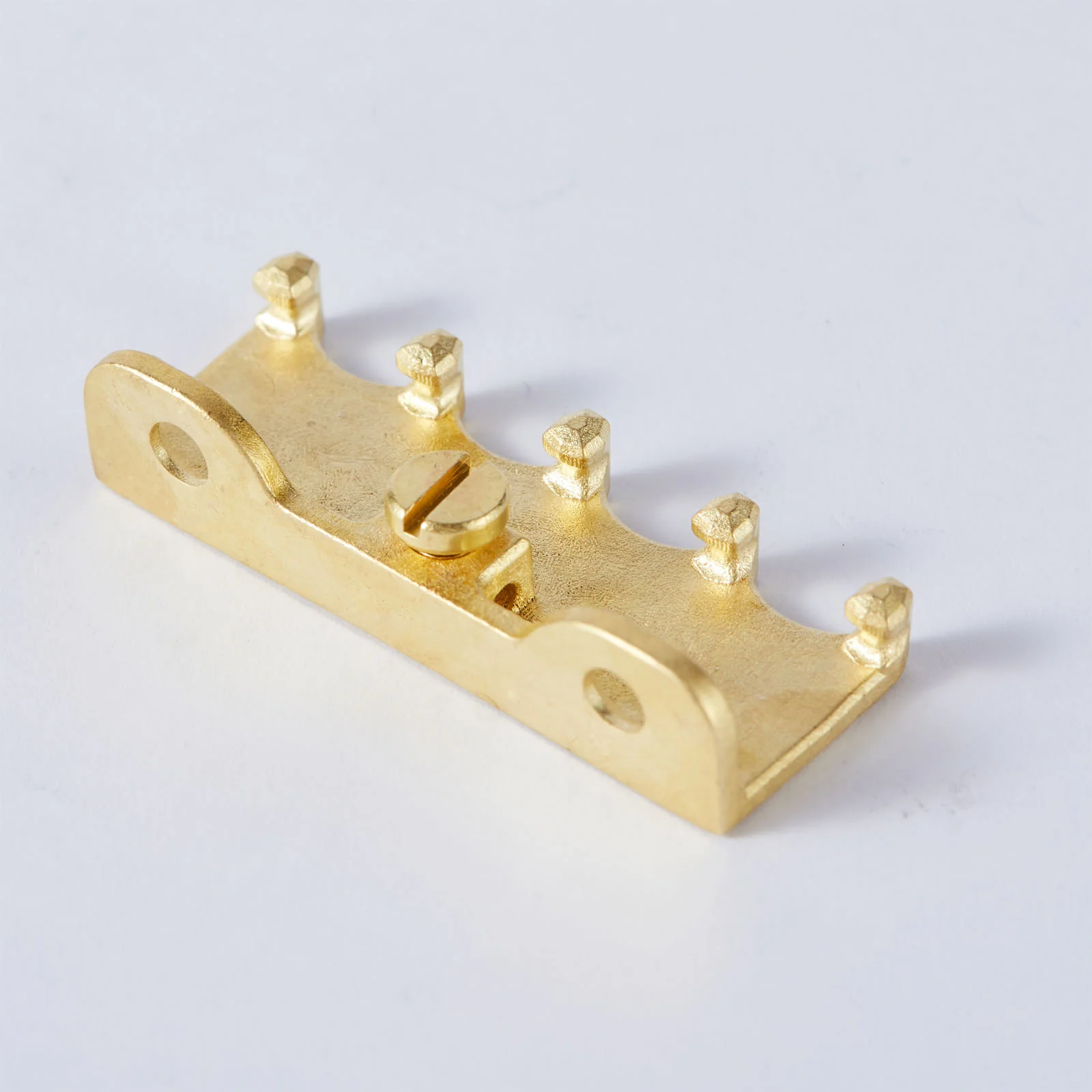

Electric Guitar Tremolo Bridge Spring Claw Full Solid Brass Hook With Screw

$12.99

-70%NEW
Thumbnail 1Thumbnail 2

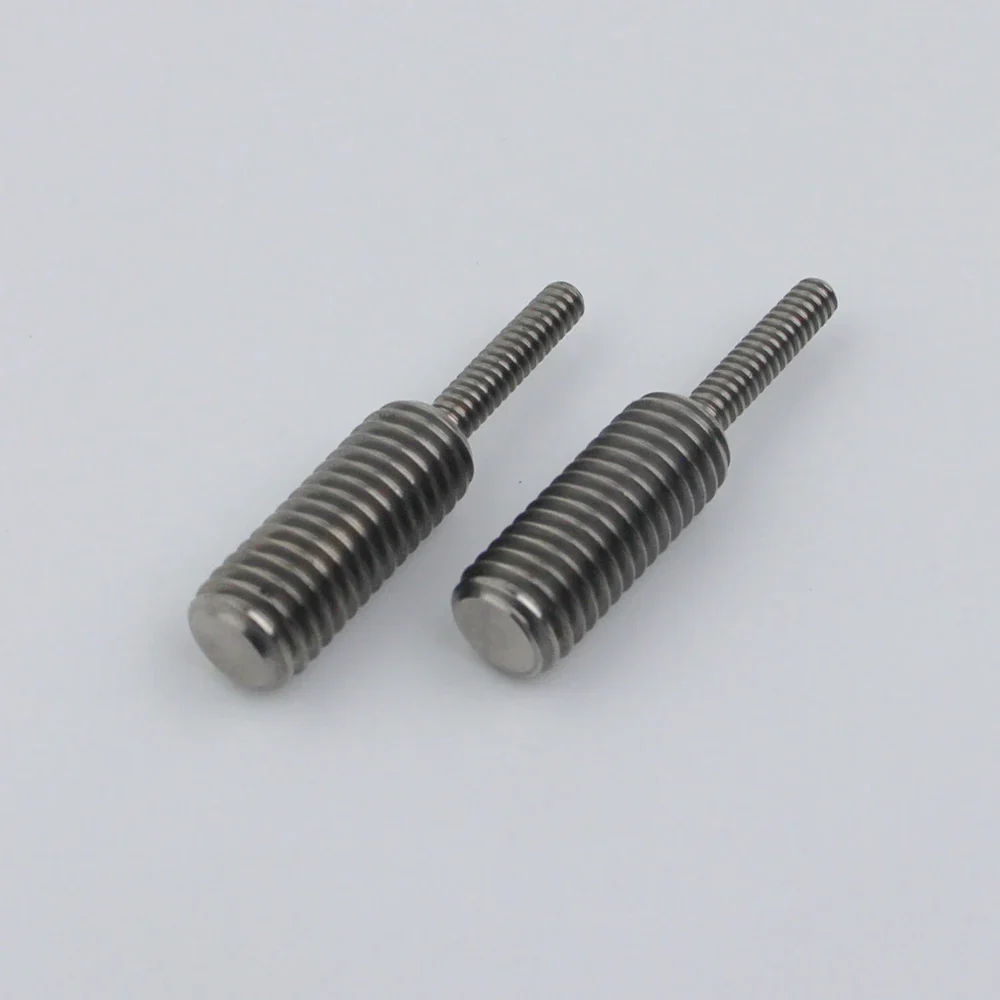

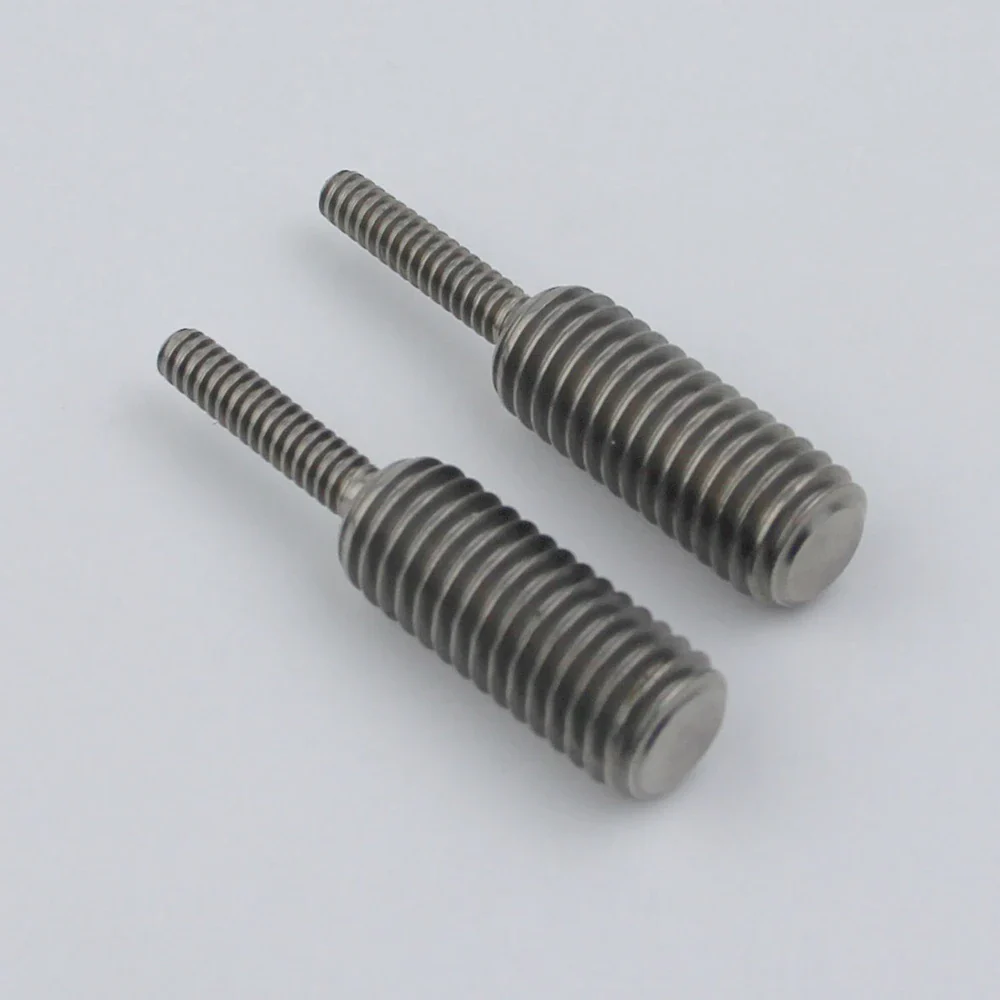

2 Piece Stud Core Titanium Alloy For EPI Electric Bridge Conversion Screw GIB Guitar Bridge

$9.99

$3.00

NEW
Thumbnail 1Thumbnail 2

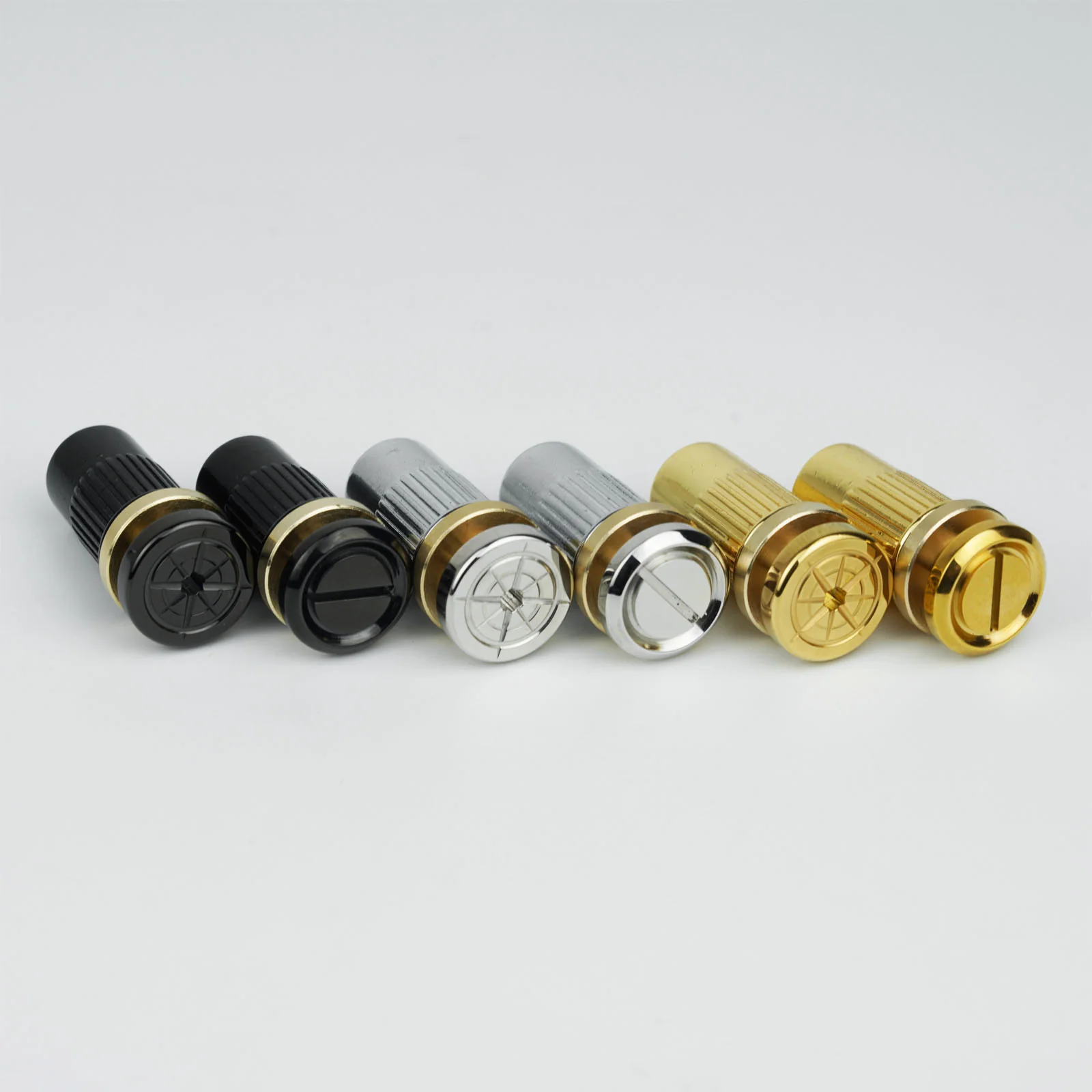

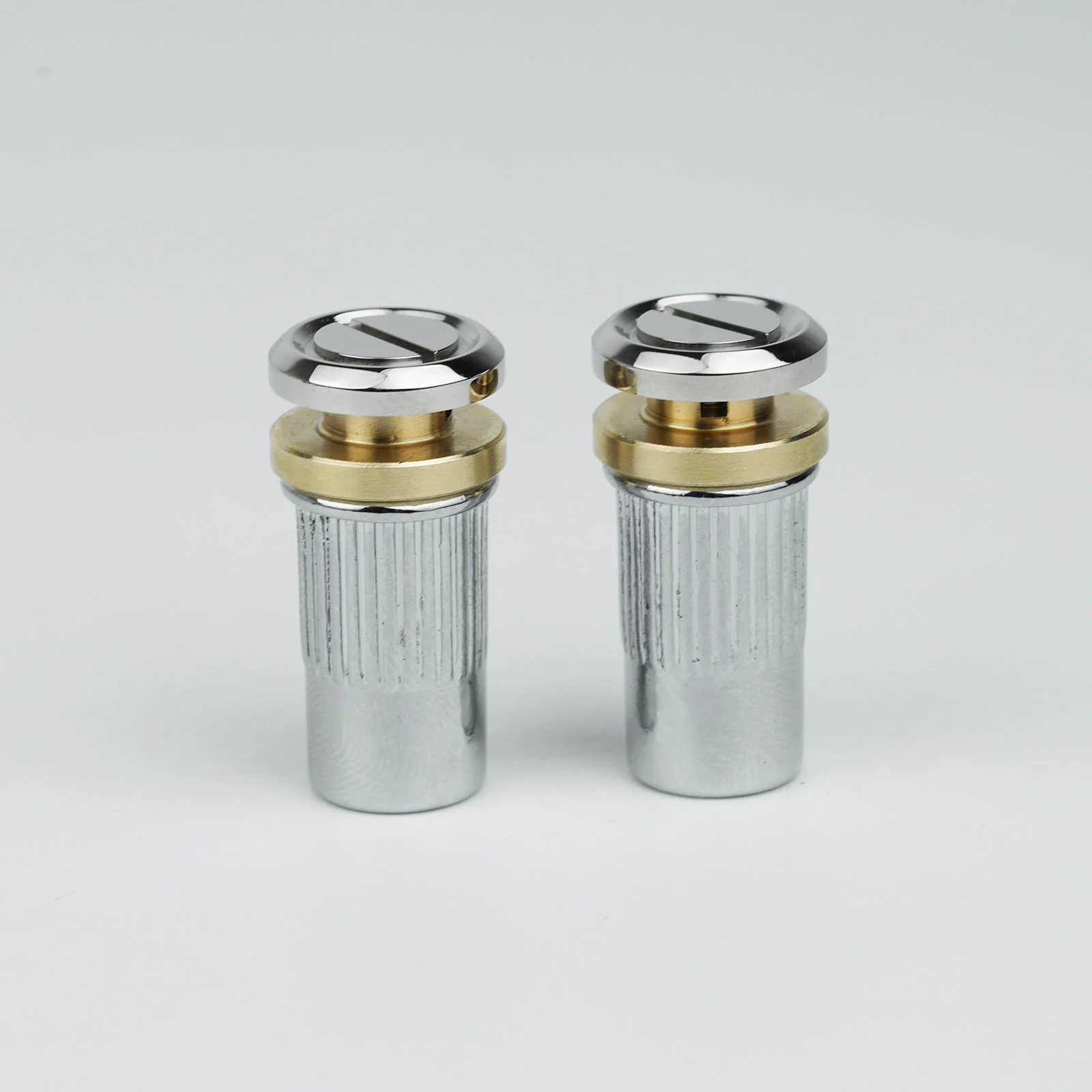

Guyker LZ001 Steel Brass Guitar Standard Bridge Pivot Screws Bridge Studs Mounting Bolt Screw

$13.99

NEW
Thumbnail 1Thumbnail 2

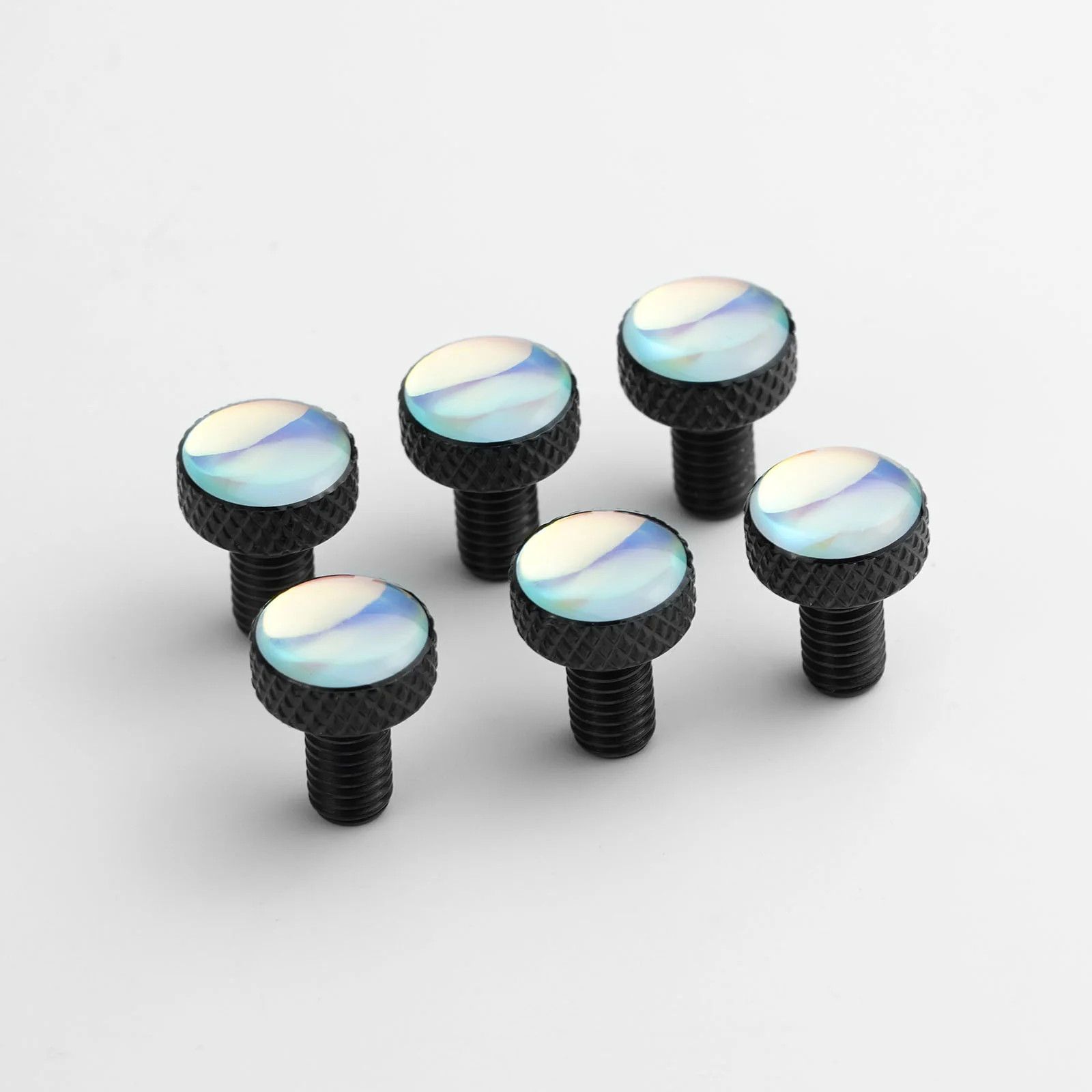

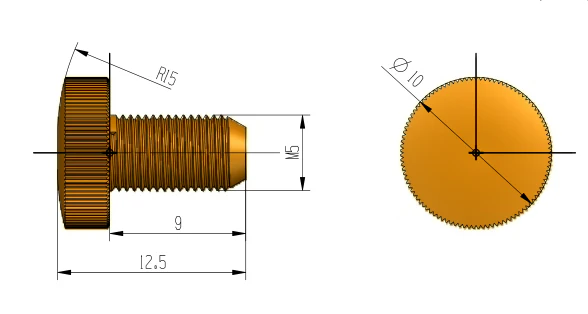

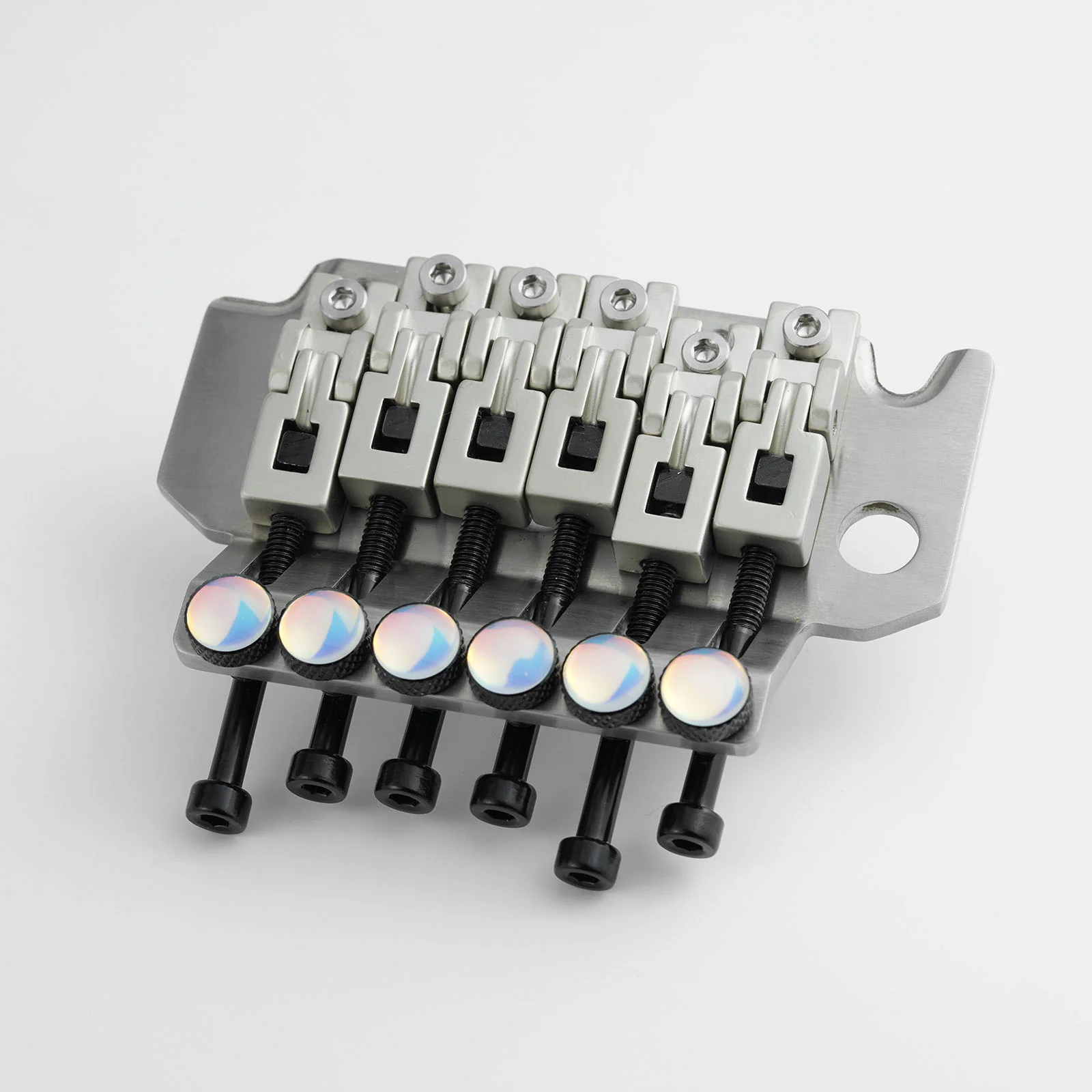

Guyker FR-001 Saddle Fine Tuning Screws Set for Floyd Rose Tremolo

$13.99

NEW
Thumbnail 1Thumbnail 2

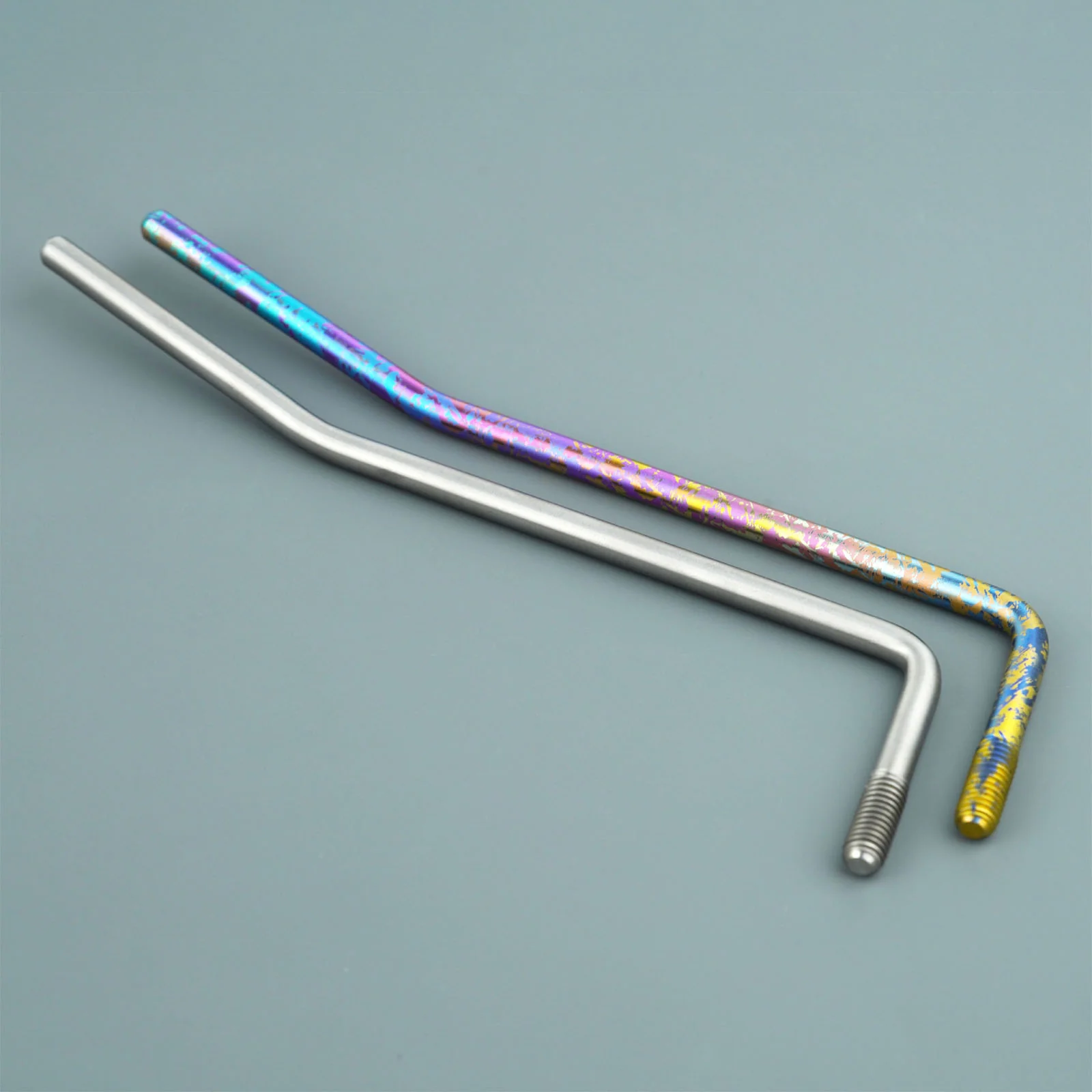

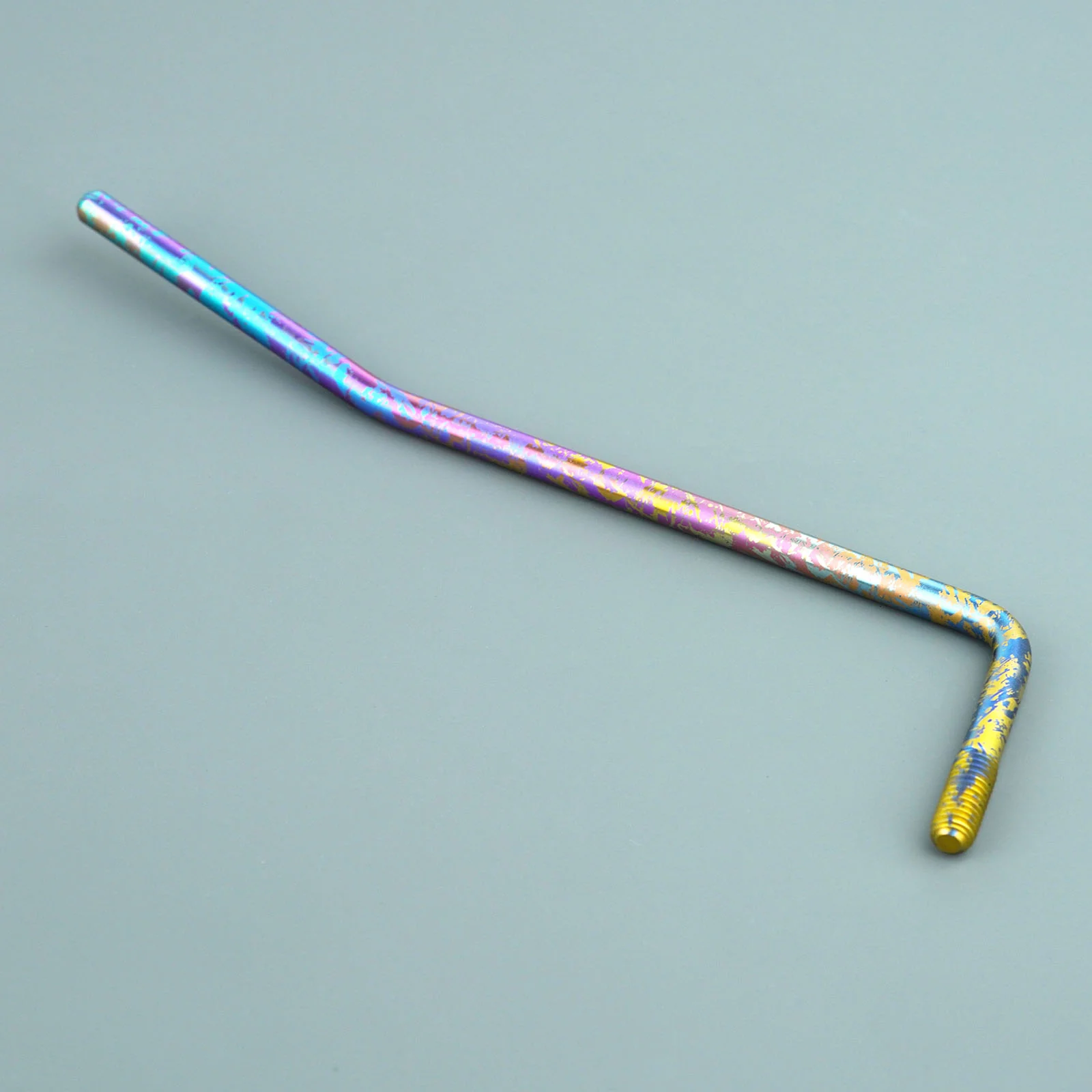

Guyker PA002 Titanium Alloy Tremolo Bar Replacement 5.8MM Bridge Arm Assembly

$16.99

-70%NEW
Thumbnail 1Thumbnail 2

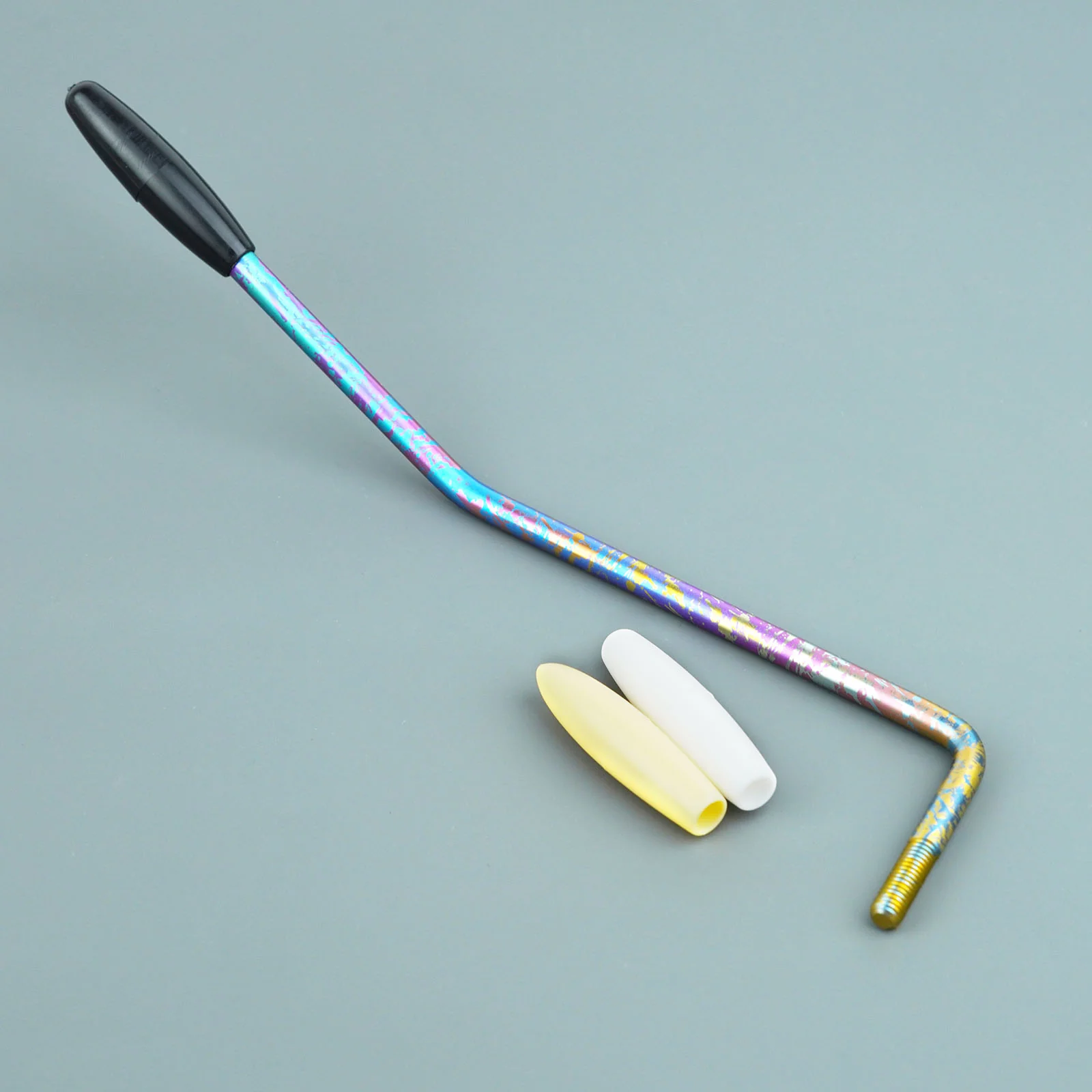

Guyker PA001 Titanium Alloy Tremolo Bar Replacement 4.8MM Bridge Arm Assembly

$19.99

$6.00

-70%NEW
Thumbnail 1Thumbnail 2

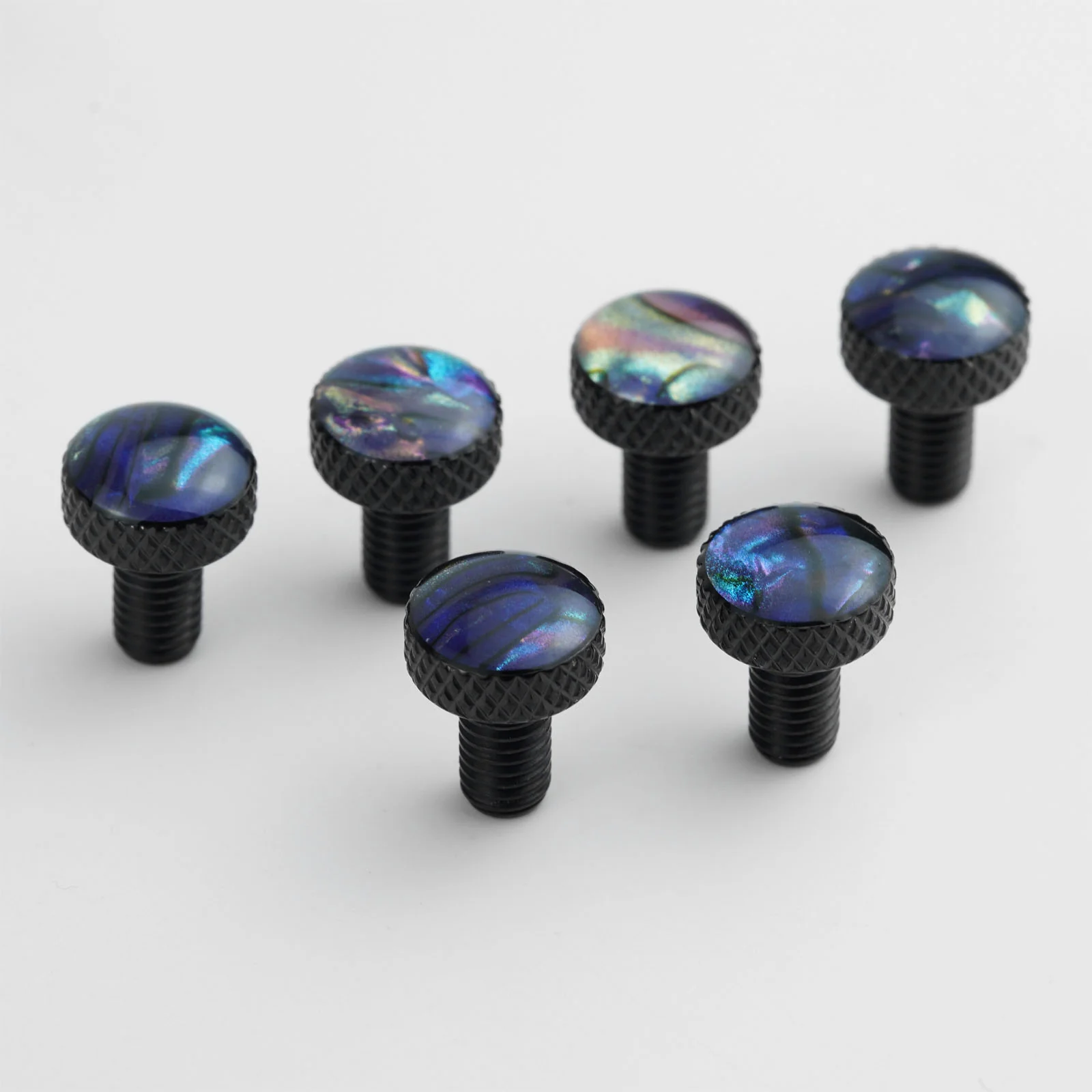

Guyker FR-002 Saddle Fine Tuning Screws Set for Floyd Rose Tremolo
