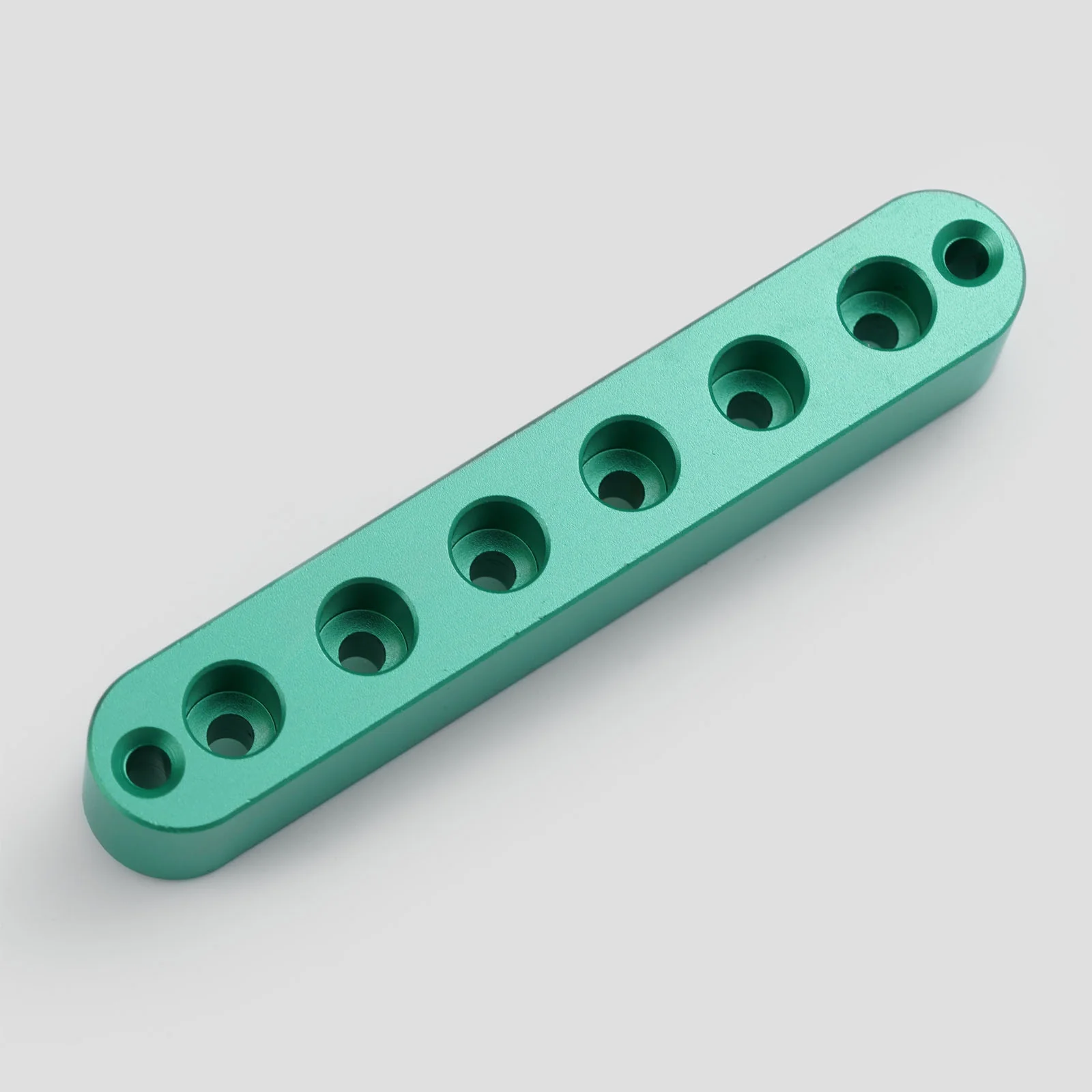

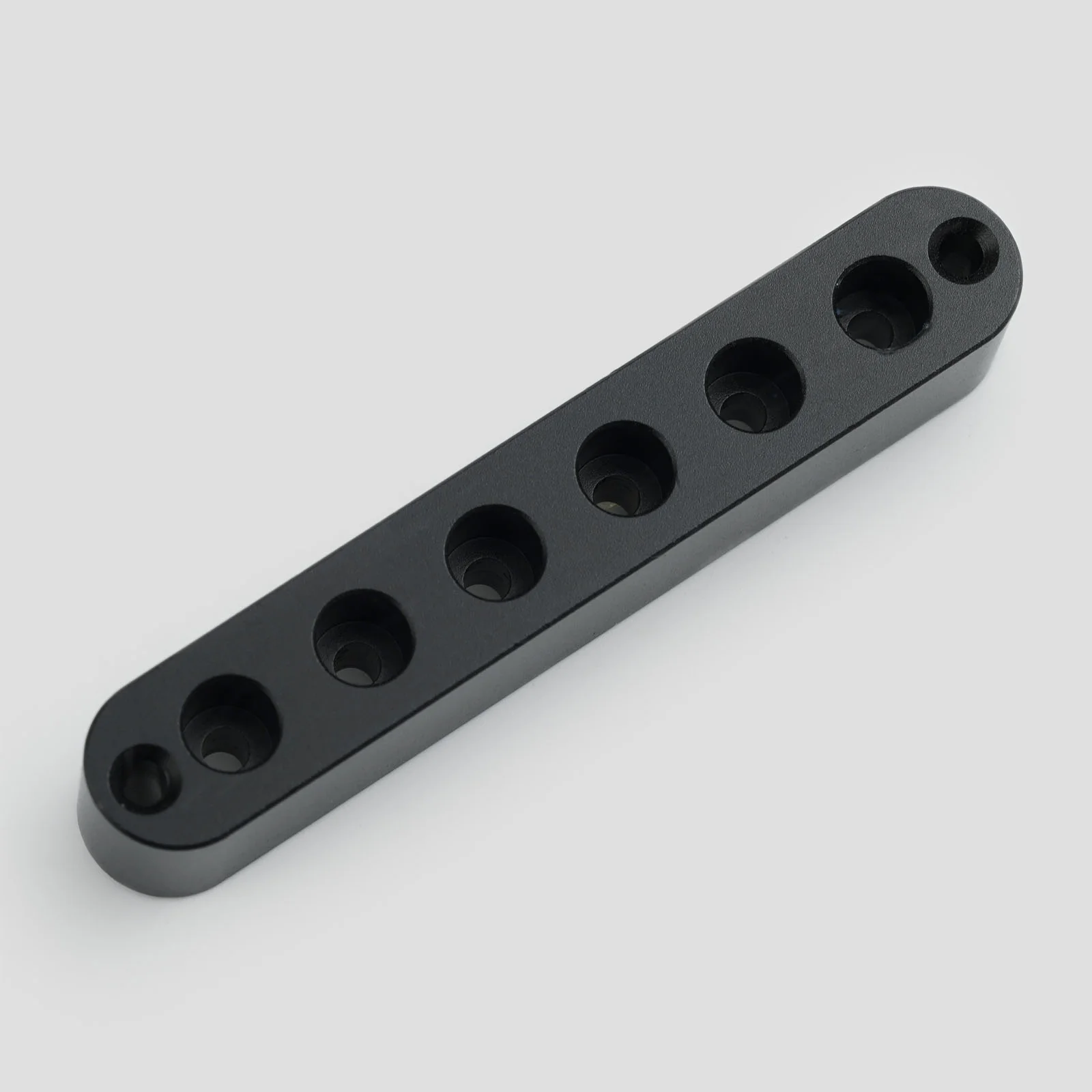

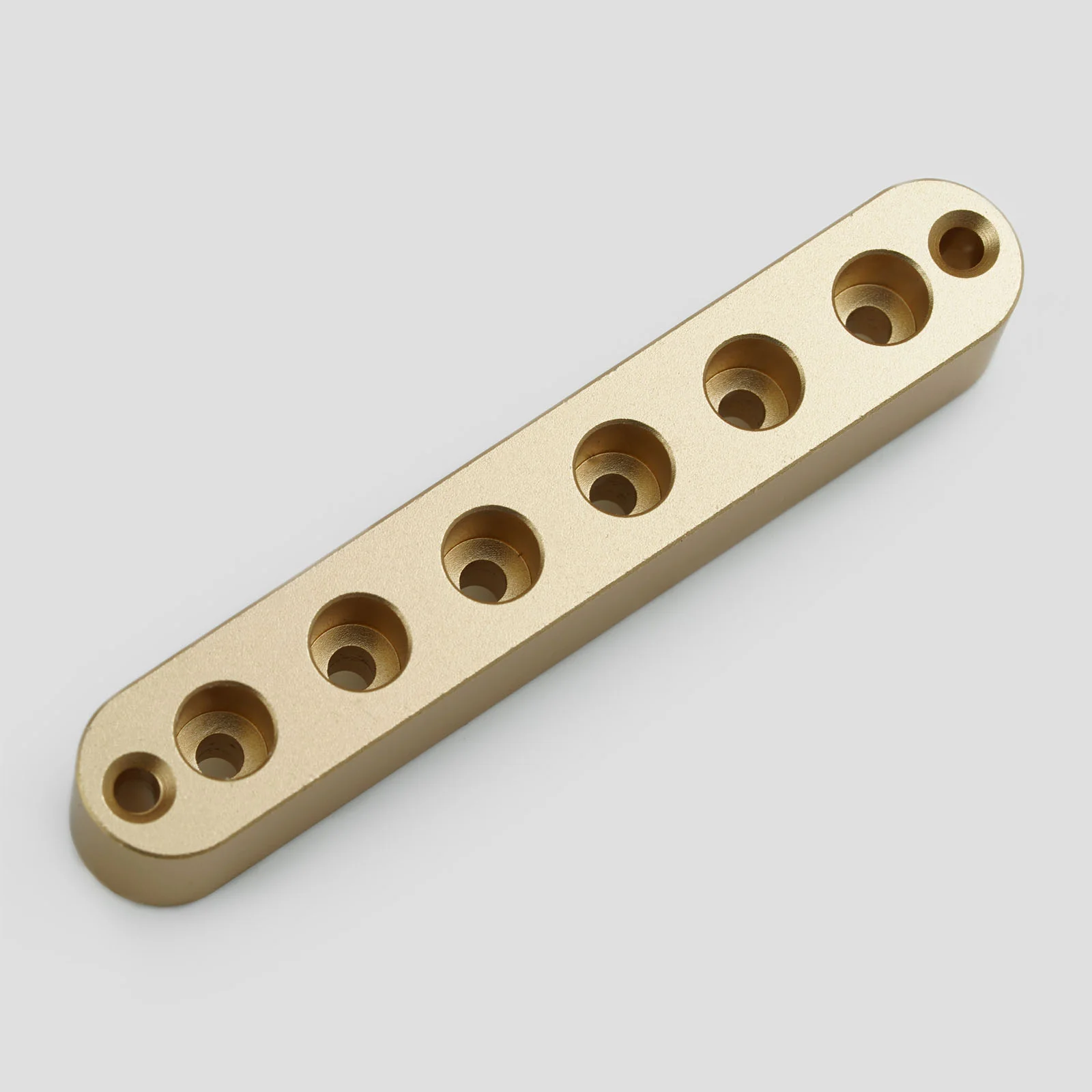

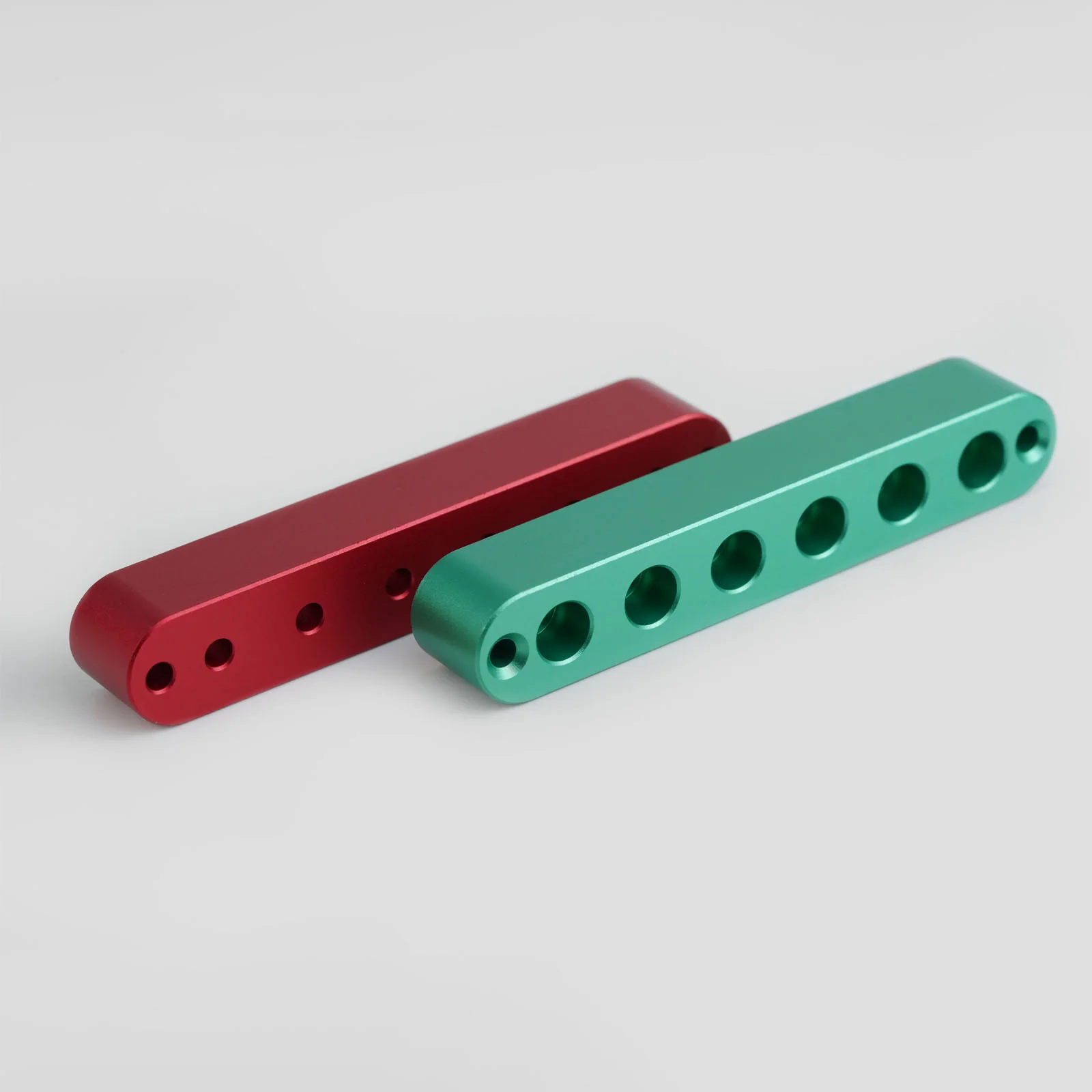

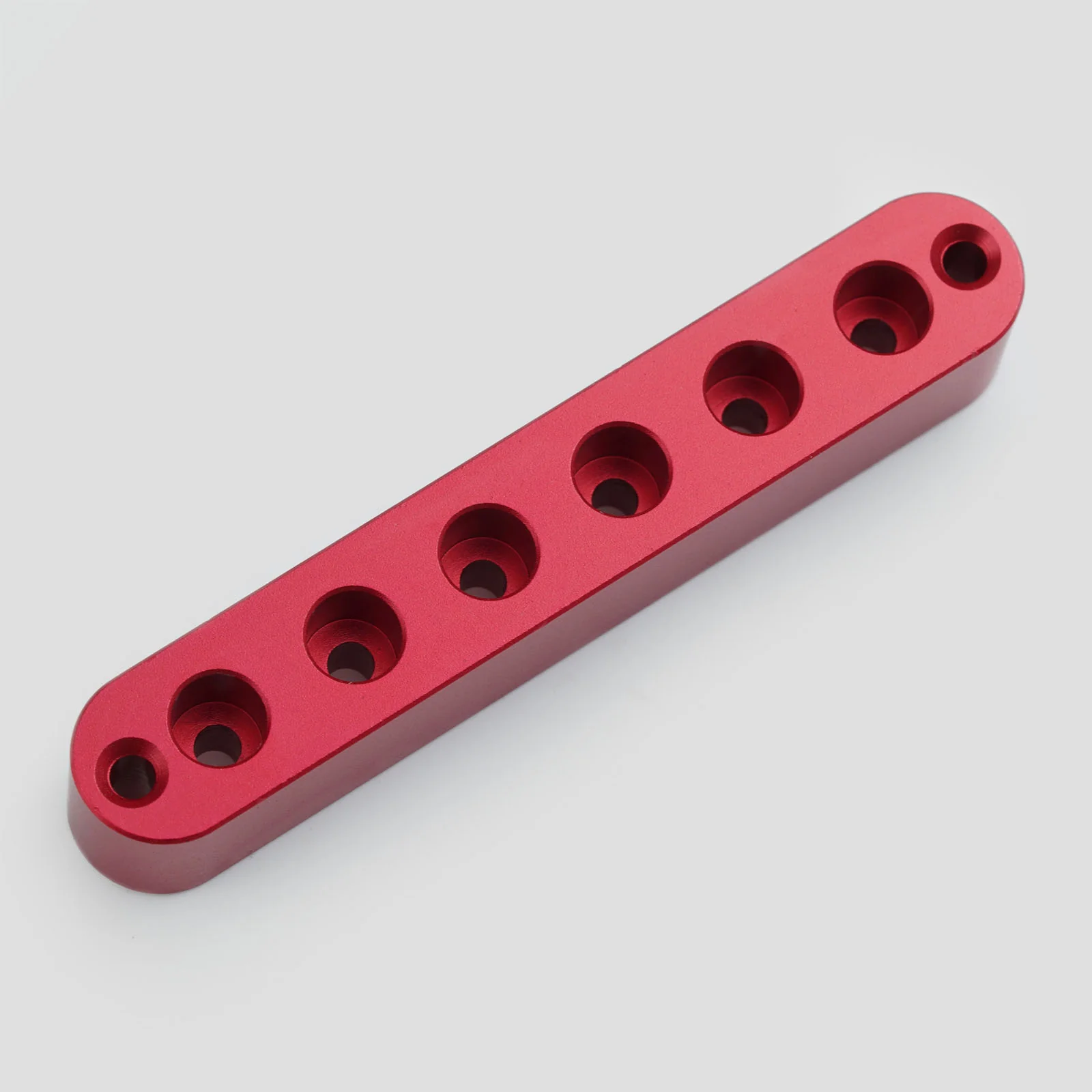

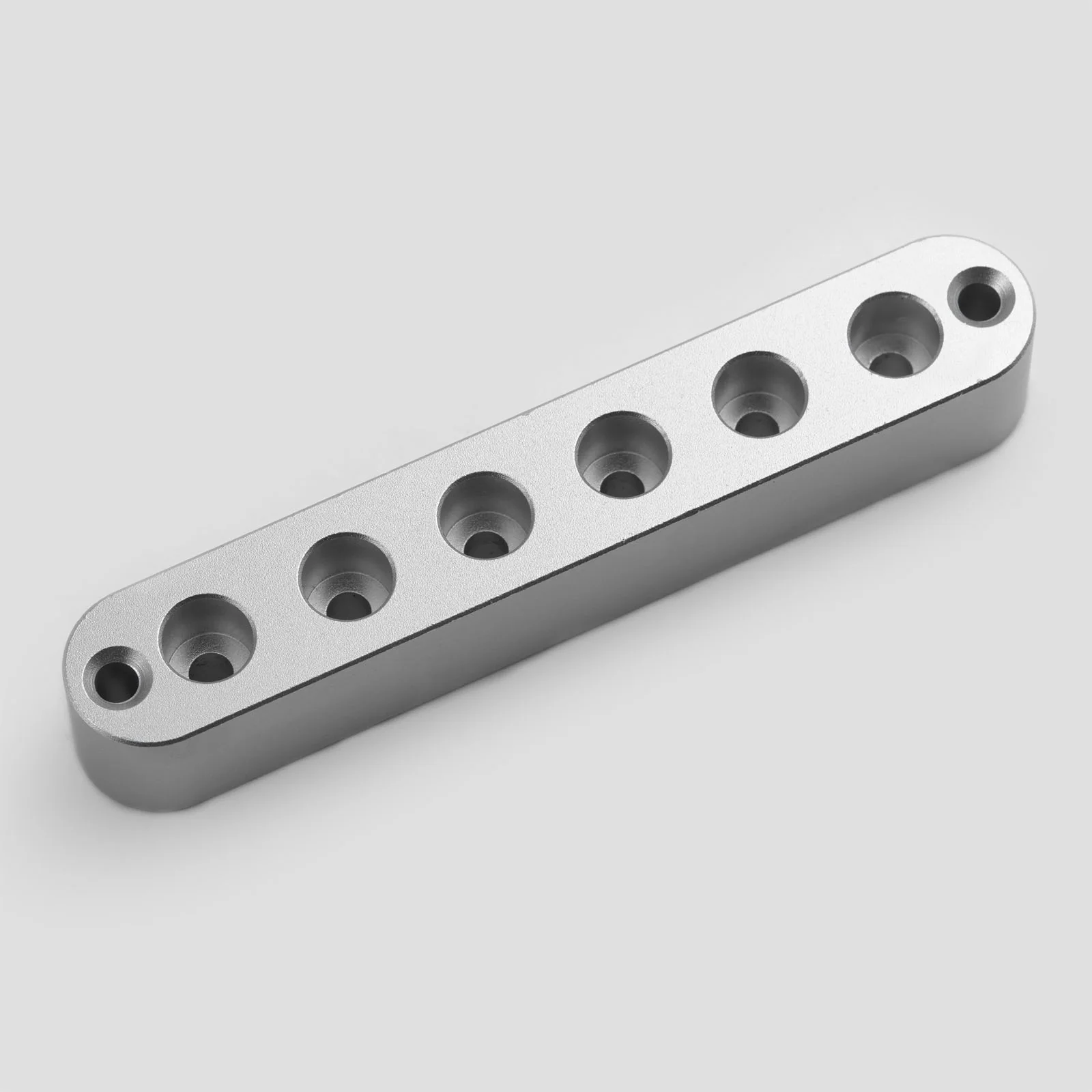

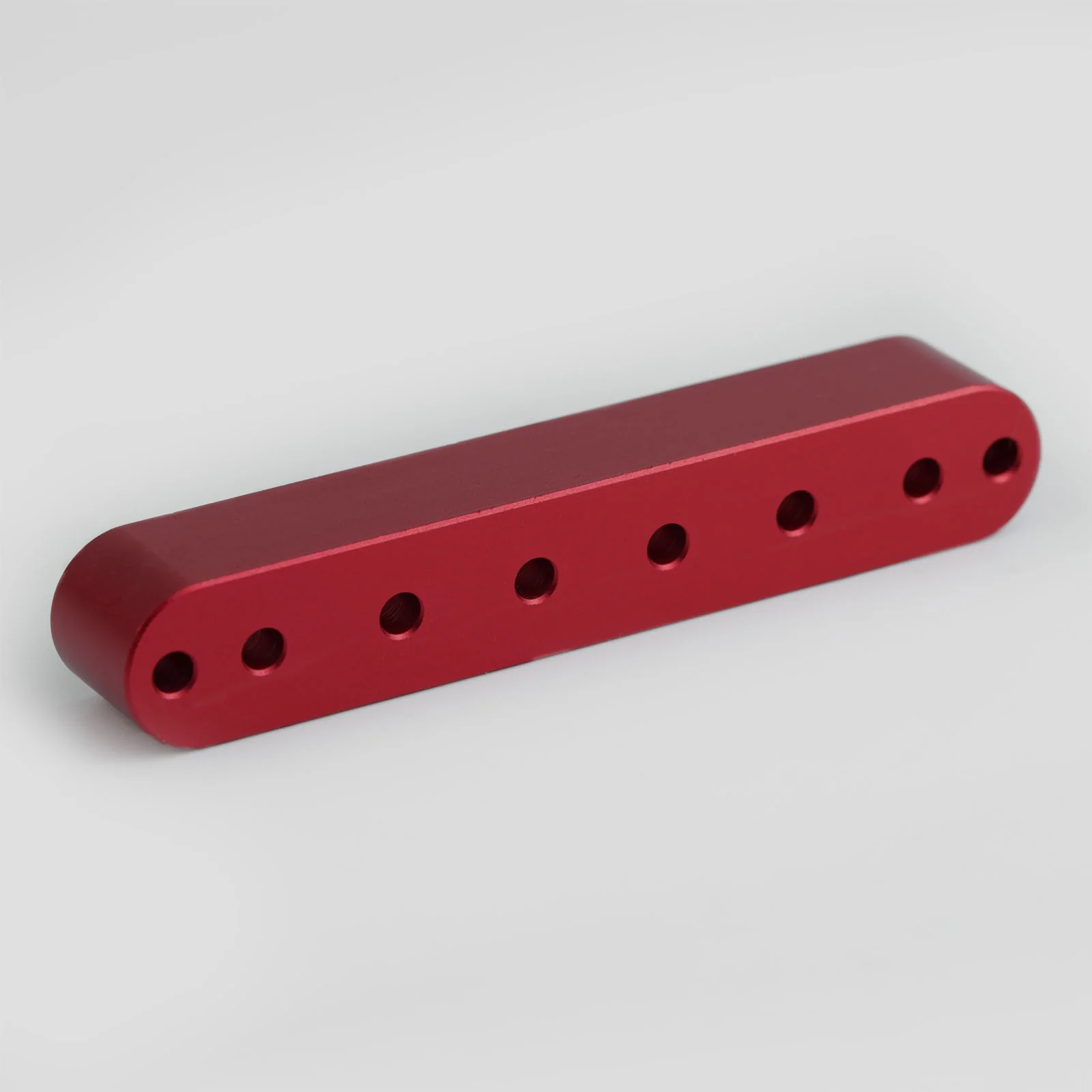

Guyker FB-06 CNC Aluminum 6-String Ferrule Block for Through-Body Guitars
Materials
-
Material: Aluminum (CNC Machined)
Dimensions
- Overall Length: 75.2mm
- Width: 12.5mm
- Height: 12.5mm
- String Spacing (approx.): 9.82mm
- Mounting hole Center Distance: 67.8mm
- String Holes Diameter: Φ6.4 / Φ3.1
- Mounting Holes Diameter: Φ4.6 / Φ3
All dimensions may vary by ±1mm due to manual measurement.

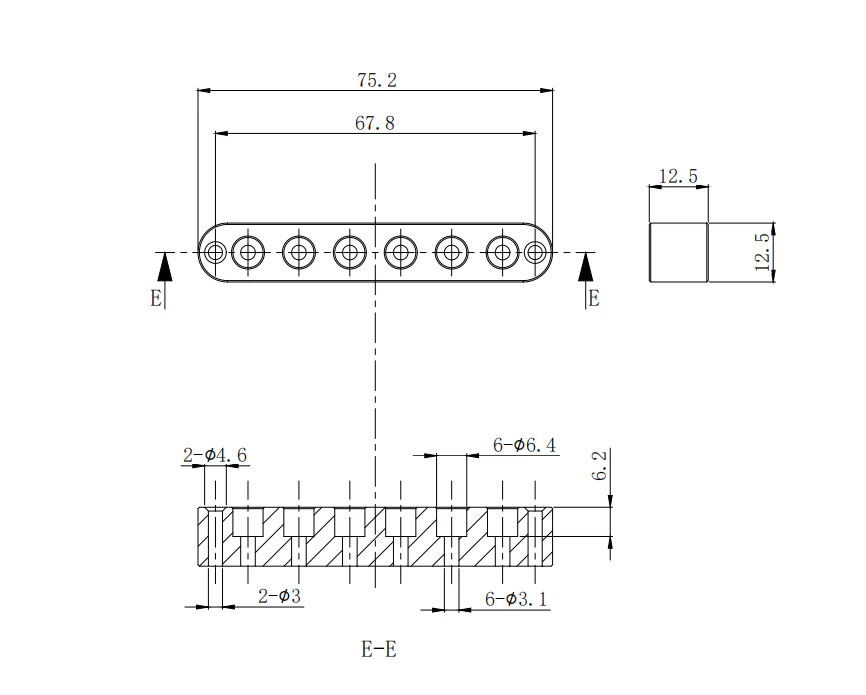

Technical Drawing
Key Features
- One-piece 6-string ferrule block for through-body string mounting
- CNC aluminum construction for stable mounting and clean alignment
- Block design helps keep string alignment consistent and simplifies installation
- Sleek rear look compared with individual ferrules
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Guyker FB-06 CNC Aluminum 6-String Ferrule Block for Through-Body Guitars
Guyker FB-06 CNC Aluminum 6-String Ferrule Block for Through-Body Guitars
Materials
-
Material: Aluminum (CNC Machined)
Dimensions
- Overall Length: 75.2mm
- Width: 12.5mm
- Height: 12.5mm
- String Spacing (approx.): 9.82mm
- Mounting hole Center Distance: 67.8mm
- String Holes Diameter: Φ6.4 / Φ3.1
- Mounting Holes Diameter: Φ4.6 / Φ3
All dimensions may vary by ±1mm due to manual measurement.
Technical Drawing
Key Features
- One-piece 6-string ferrule block for through-body string mounting
- CNC aluminum construction for stable mounting and clean alignment
- Block design helps keep string alignment consistent and simplifies installation
- Sleek rear look compared with individual ferrules

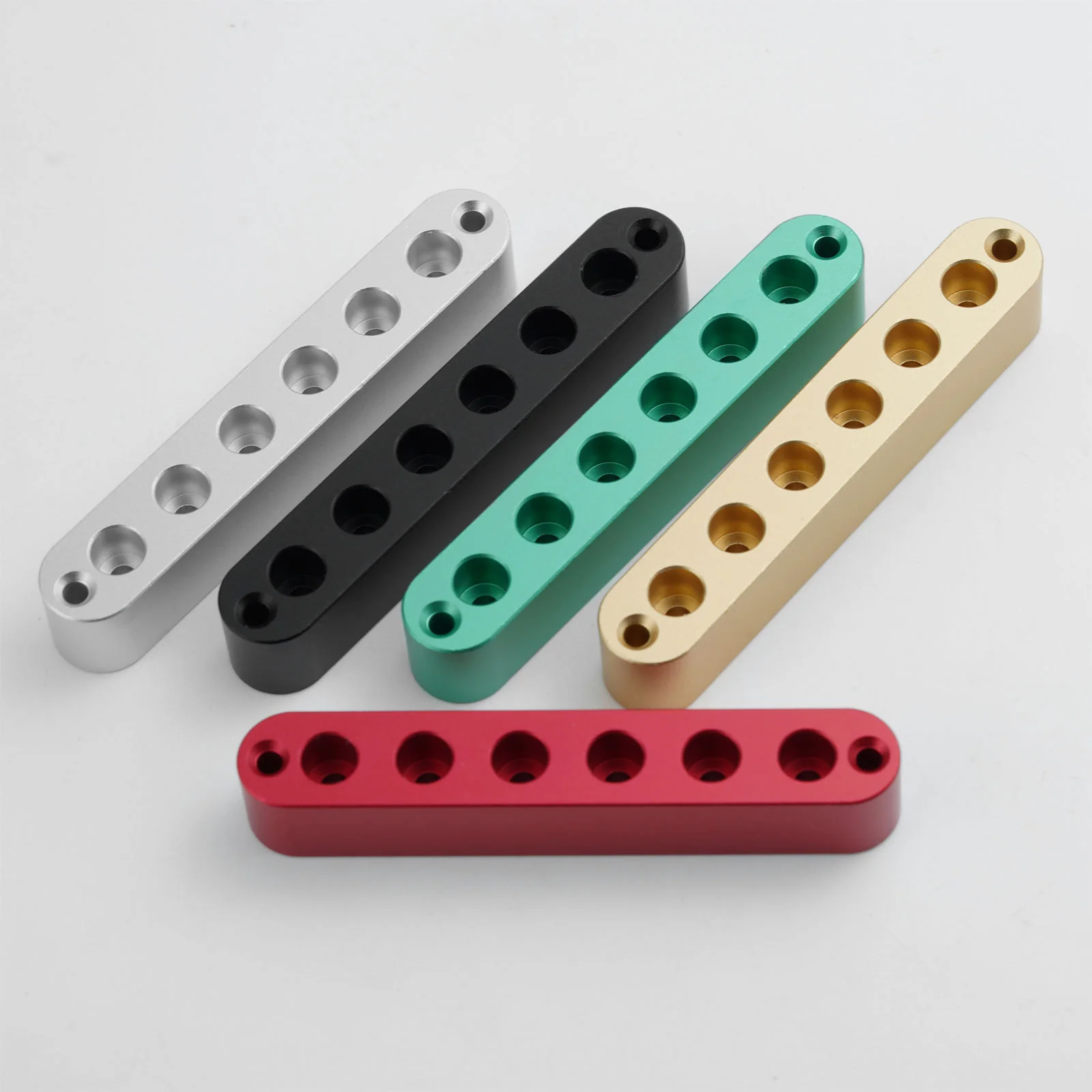

Select Color
From $6.60
Original: $21.99
-70%Guyker FB-06 CNC Aluminum 6-String Ferrule Block for Through-Body Guitars—
$21.99
$6.60Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Materials
-
Material: Aluminum (CNC Machined)
Dimensions
- Overall Length: 75.2mm
- Width: 12.5mm
- Height: 12.5mm
- String Spacing (approx.): 9.82mm
- Mounting hole Center Distance: 67.8mm
- String Holes Diameter: Φ6.4 / Φ3.1
- Mounting Holes Diameter: Φ4.6 / Φ3
All dimensions may vary by ±1mm due to manual measurement.
Technical Drawing
Key Features
- One-piece 6-string ferrule block for through-body string mounting
- CNC aluminum construction for stable mounting and clean alignment
- Block design helps keep string alignment consistent and simplifies installation
- Sleek rear look compared with individual ferrules
