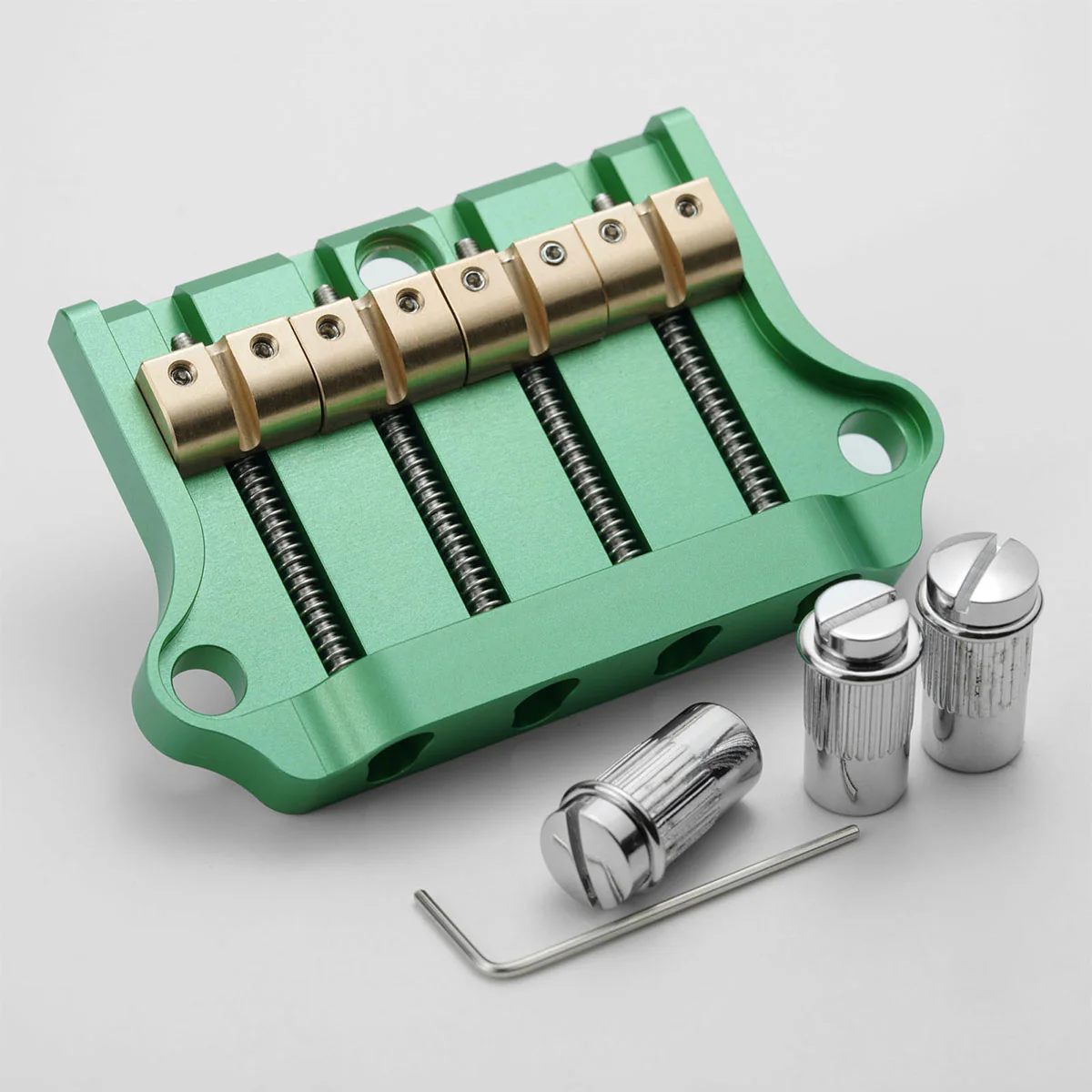

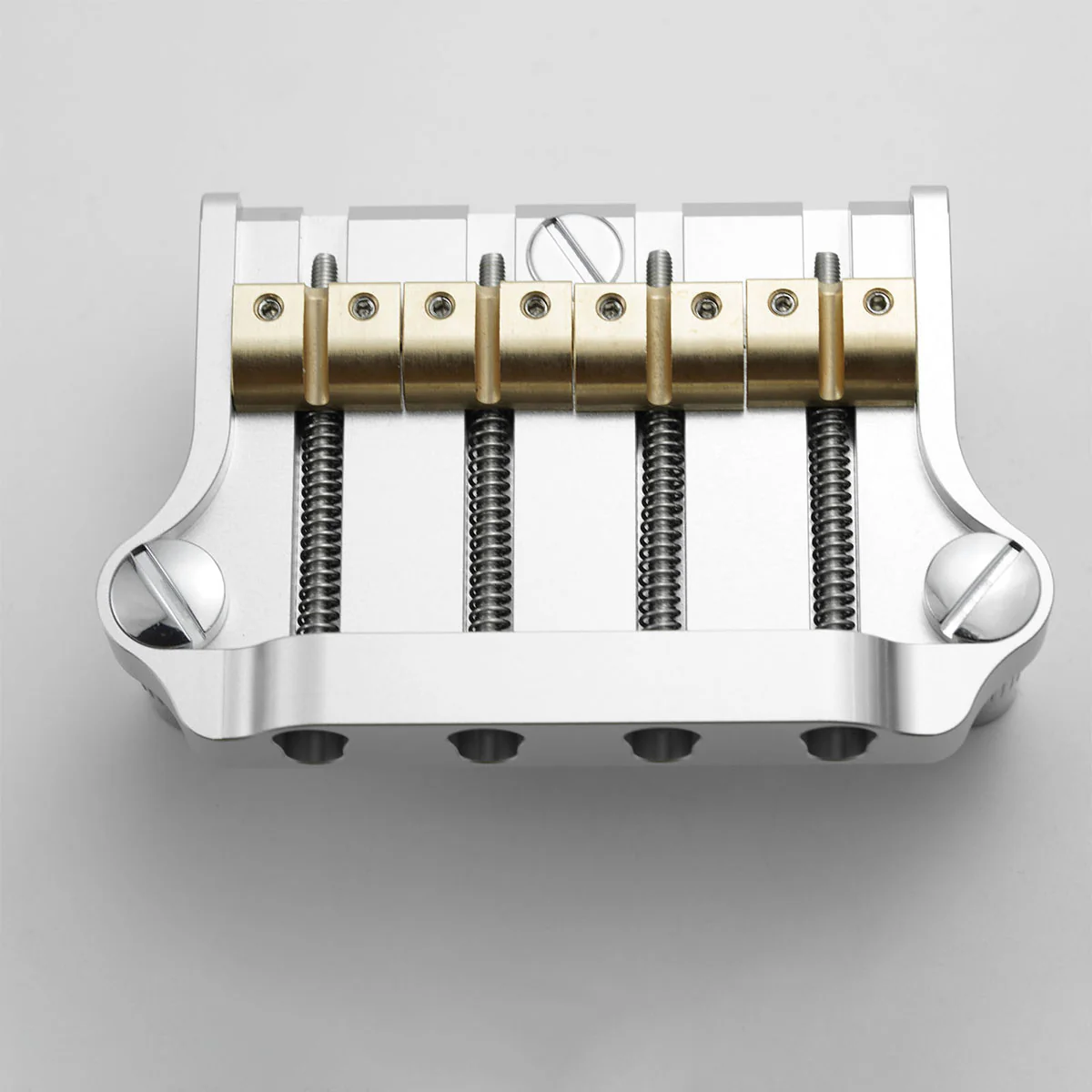

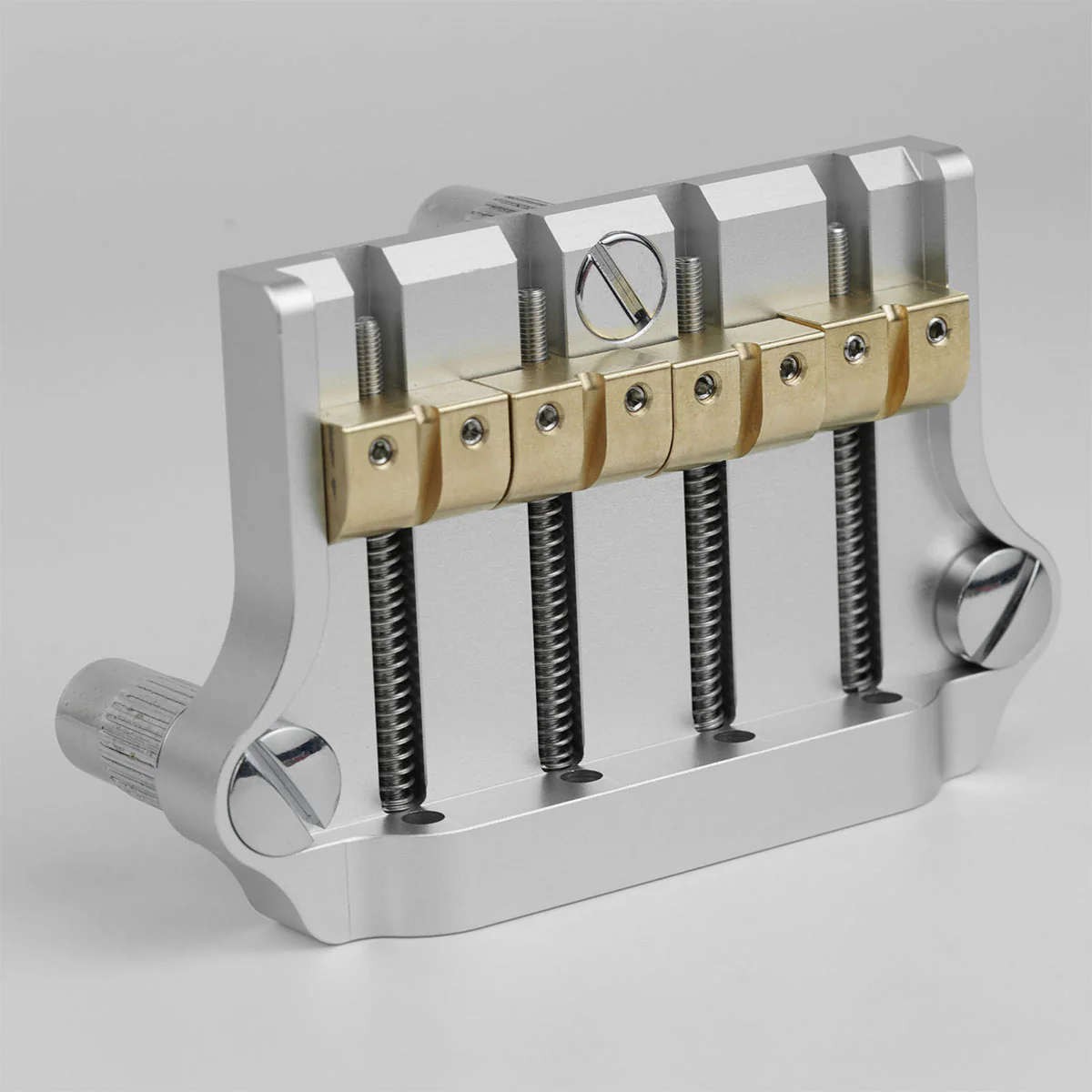

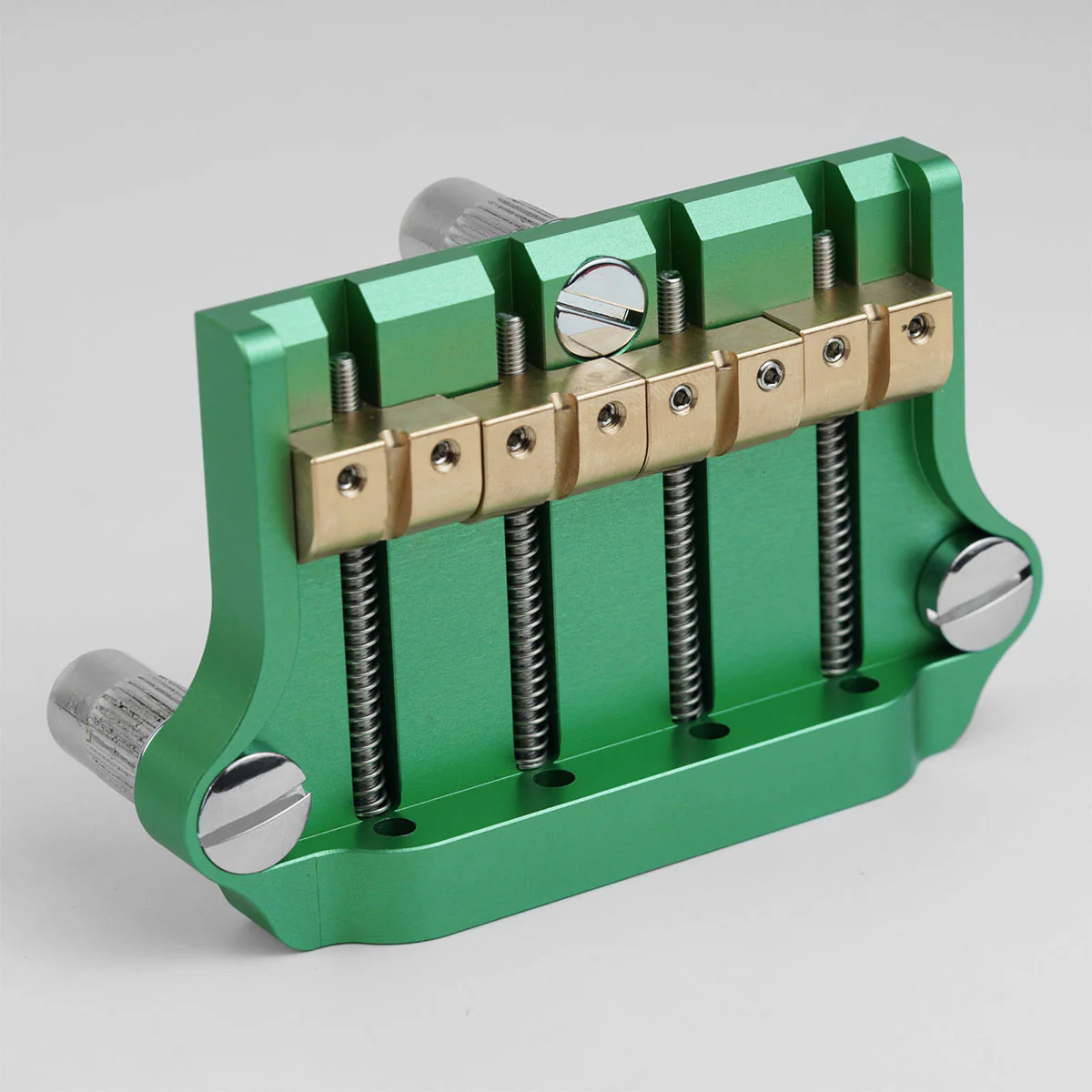

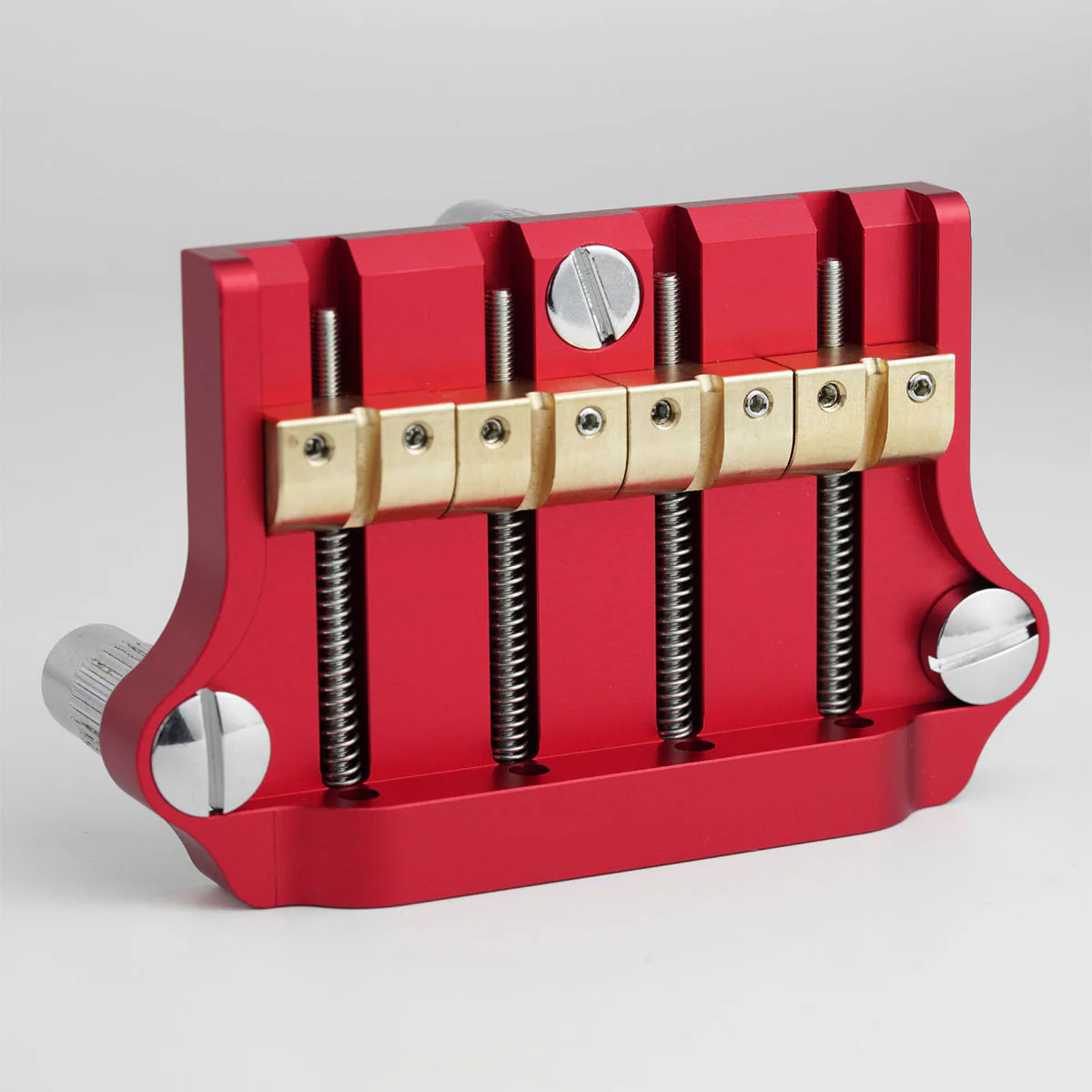

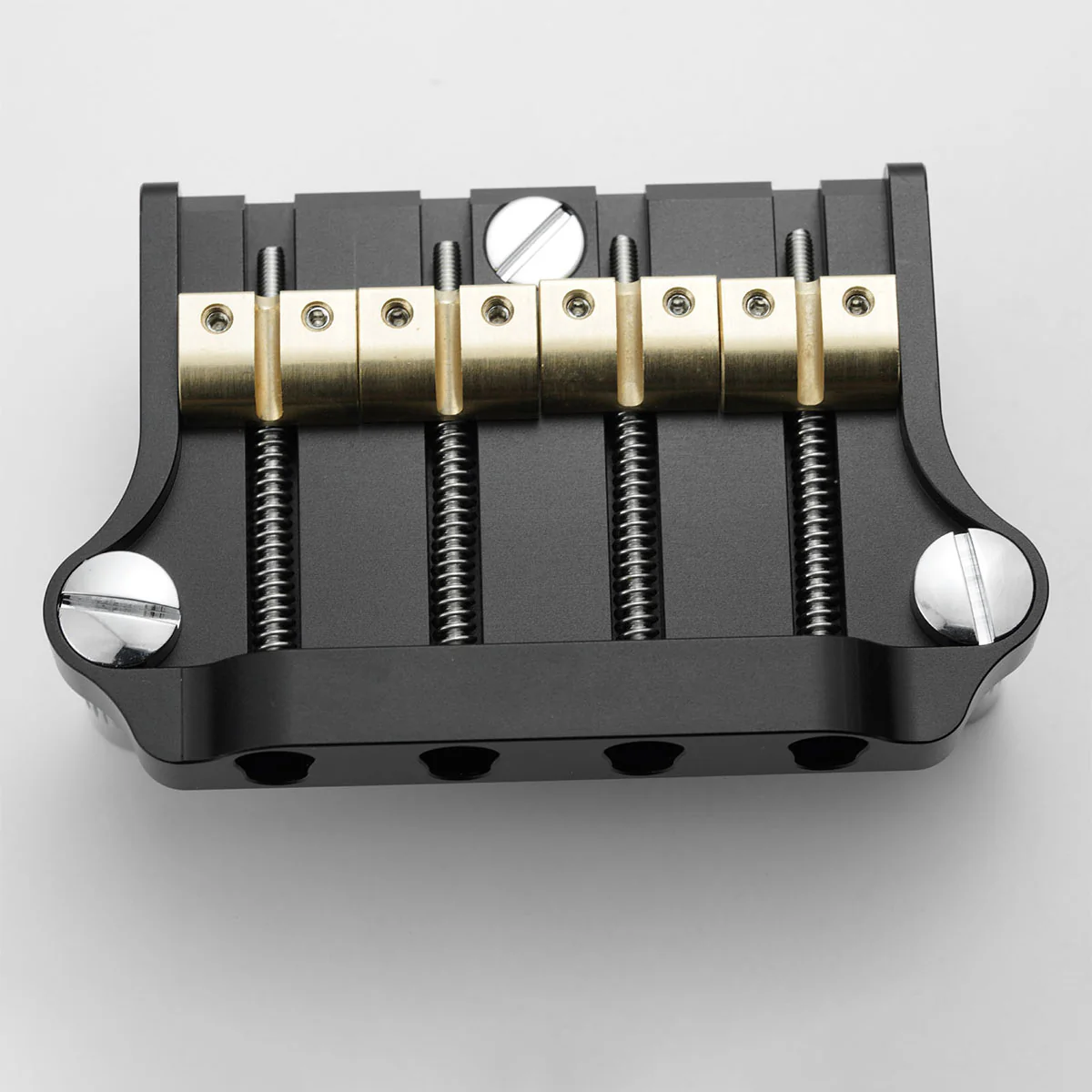

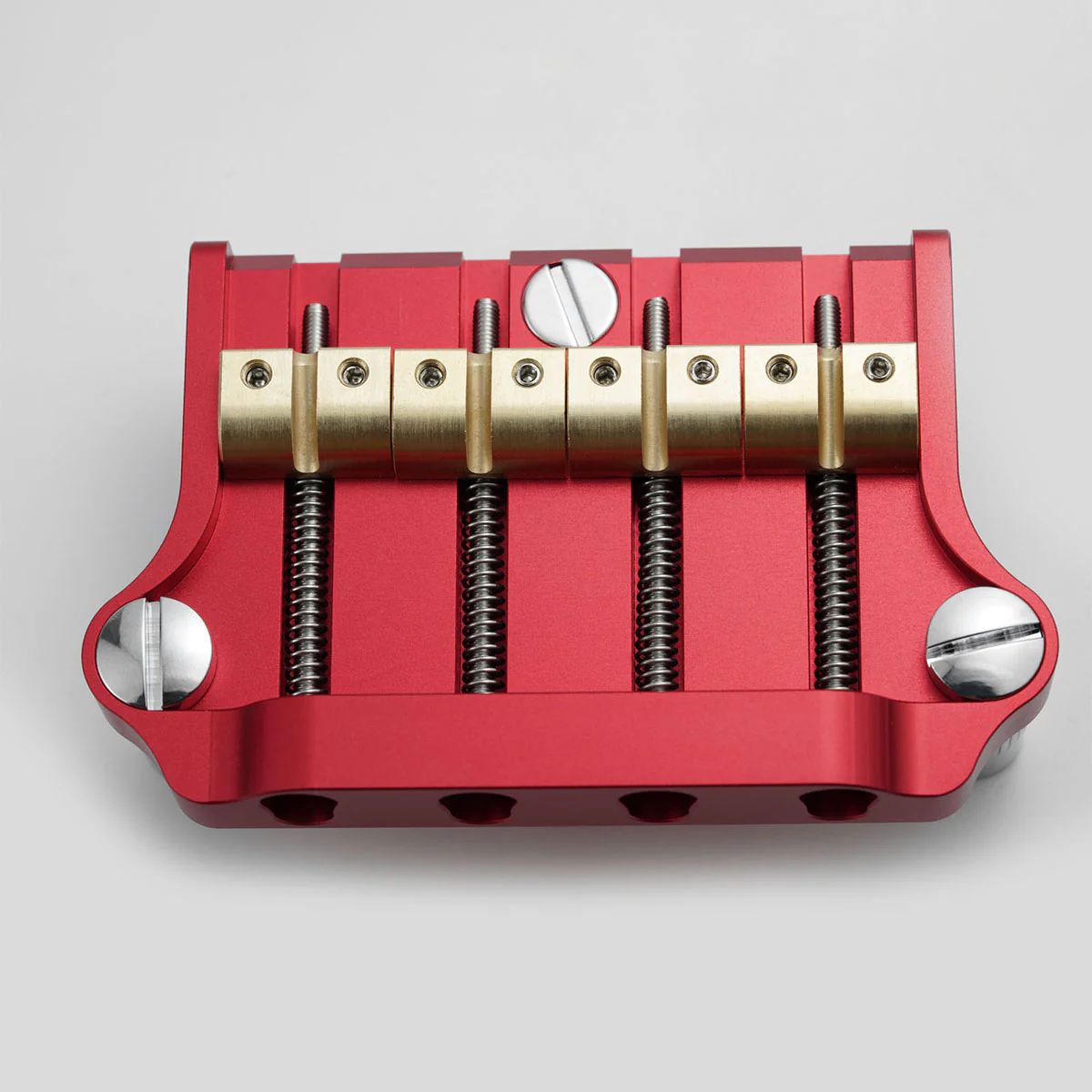

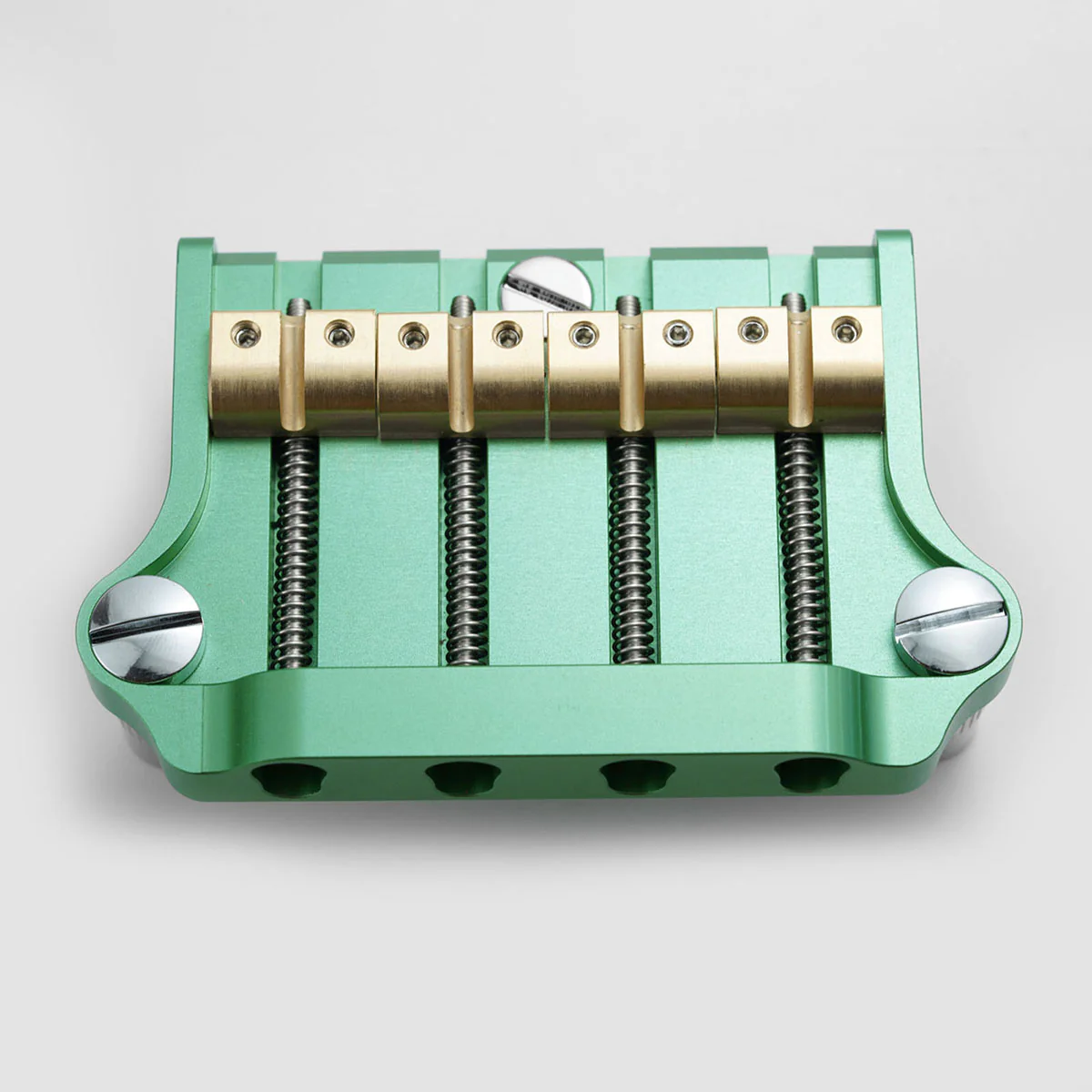

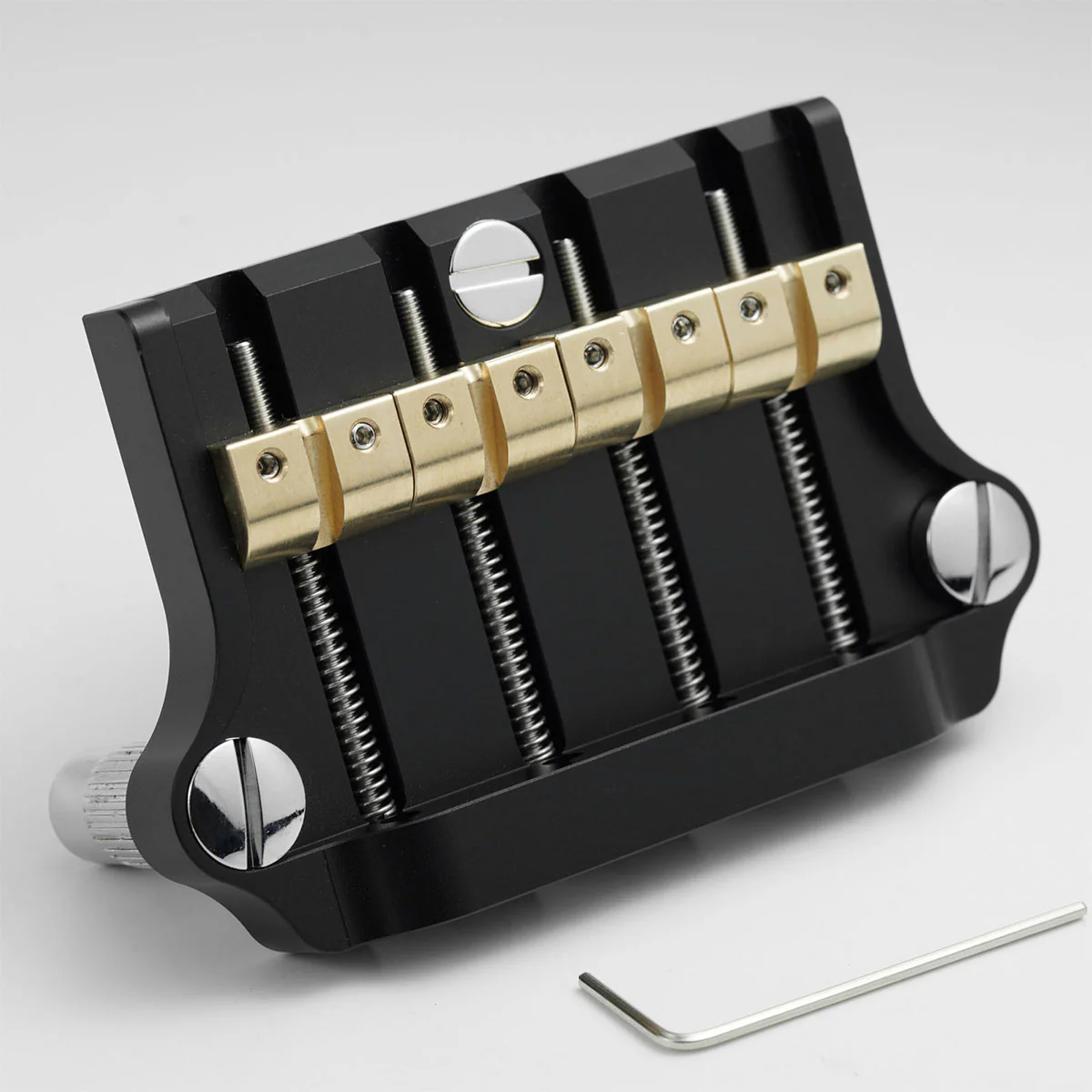

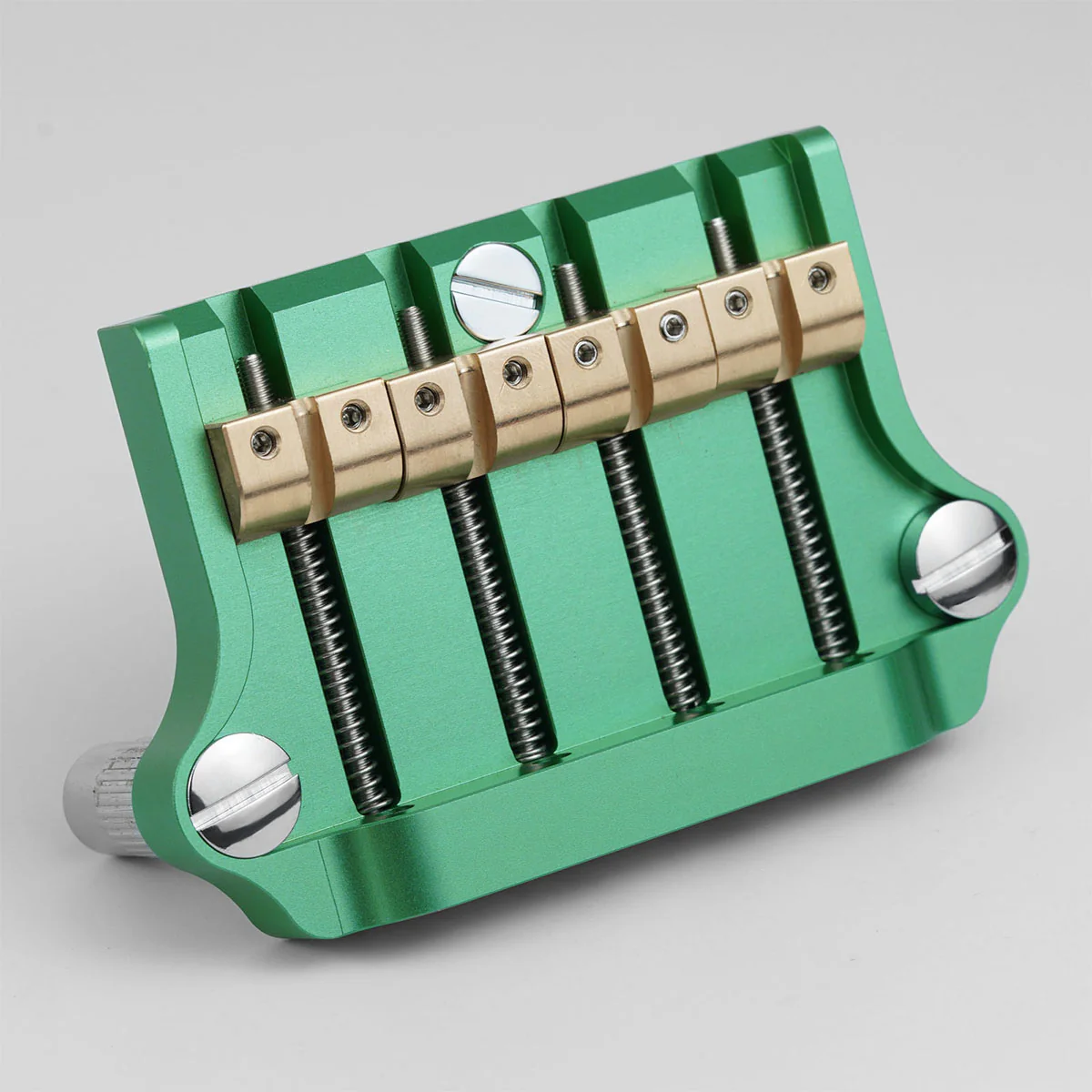

Guyker GBA-004 CNC Aluminum Alloy 3-Point Bass Guitar Bridge for GBS EP

Guyker GBA-004 CNC Aluminum Alloy 3-Point Bass Guitar Bridge for GBS EP

Materials

  • Bridge Body: CNC Machined Aluminum Alloy
  • Saddles: Brass

Dimensions

  • Length: 99.29mm
  • Width: 62.3mm
  • Height: 15mm
  • Post Spacing (Outer center to Outer center): 84.3mm
  • Post Diameter: Ø12.1mm
  • String Spacing: 54mm (18mm × 3)

All dimensions may vary by ±1mm due to manual measurement.

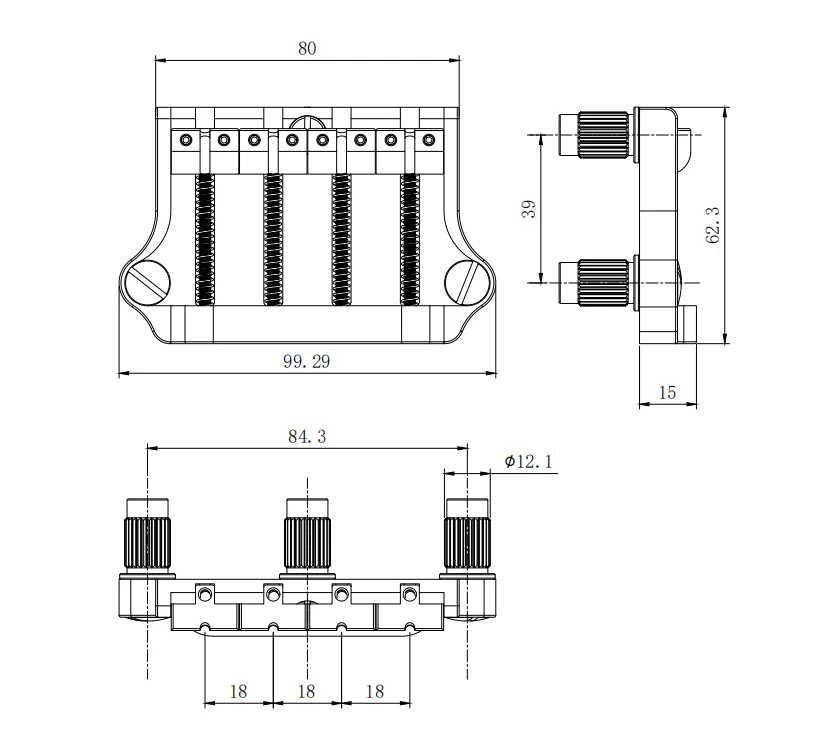

Technical Drawing

Key Features

  • 3-Point Bass Bridge Design – for 3-point mounting bass setups
  • 4-String Configuration – four saddles for stable alignment and setup
  • CNC Aluminum Alloy Body – lightweight, durable, and corrosion-resistant
  • Brass Saddles – solid contact and wear resistance for long-term use
